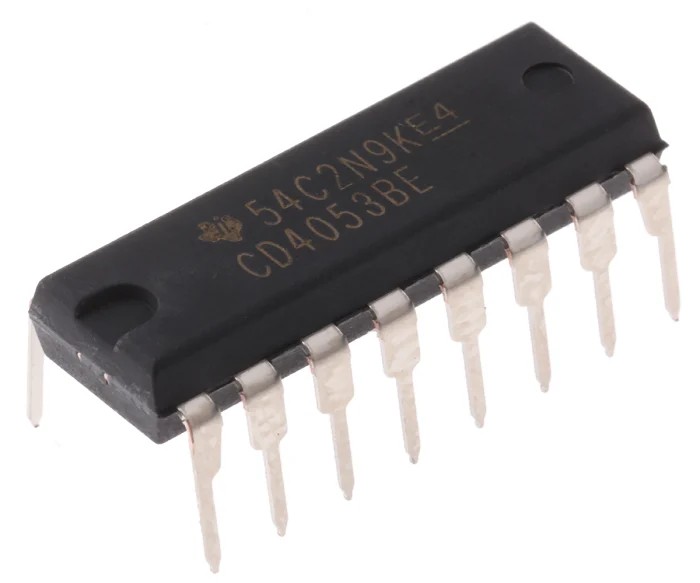

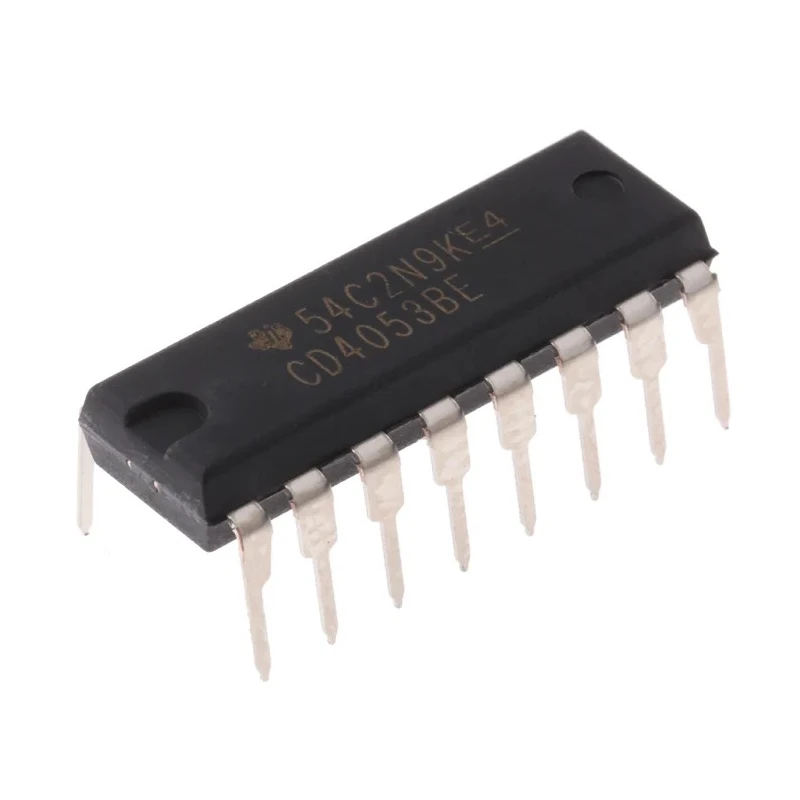

Texas Instruments CMOS Multiplexer/Demultiplexer 3 Elements 16-Pin PDIP CD4053BE

Texas Instruments CD4053BE is a CMOS multiplexer/demultiplexer integrated circuit featuring a triple 3-element configuration housed in a 16-pin PDIP package. Designed as part of the 4000 series CMOS logic family, it offers compatibility with a broad range of voltage levels from 3 to 18 volts, making it highly versatile.

This device operates reliably within a wide temperature range, from -55°C to 125°C, facilitating use in demanding industrial and laboratory environments. Its triple multiplexer/demultiplexer design allows complex digital signal routing and selection in electronic circuits.

The CD4053BE features a maximum on-state resistance of 550 ohms and CMOS output type, ensuring efficient and low-power operation. The through-hole PDIP mount type allows secure PCB integration and easy prototyping.

Its physical dimensions provide a compact footprint with length 19.3 mm, width 6.35 mm, and height 4.57 mm. Compatible with 4000 Series CMOS logic family. Wide operating voltage range from 3V to 18V. Operating temperature range from -55°C to 125°C.

Through-hole mounting with PDIP package. Maximum on-state resistance of 550 ohms. Triple 3-element multiplexer/demultiplexer configuration. Compact 16-pin PDIP package. CMOS output type for digital signal handling. Ideal for industrial, laboratory, and electronic applications.

New product condition from Texas Instruments.

This product provides a reliable switching solution for various industrial machines, electronic instruments, and laboratory equipment applications. Explore more reliable semiconductor components and multiplexer ICs on EnvMart for your technical and electronic project needs.
