Nexperia Multiplexer 2 CMOS 2 x SP4T Demultiplexer 16-Pin DHVQFN

Free Delivery in India | Lowest Global Shipping Charges

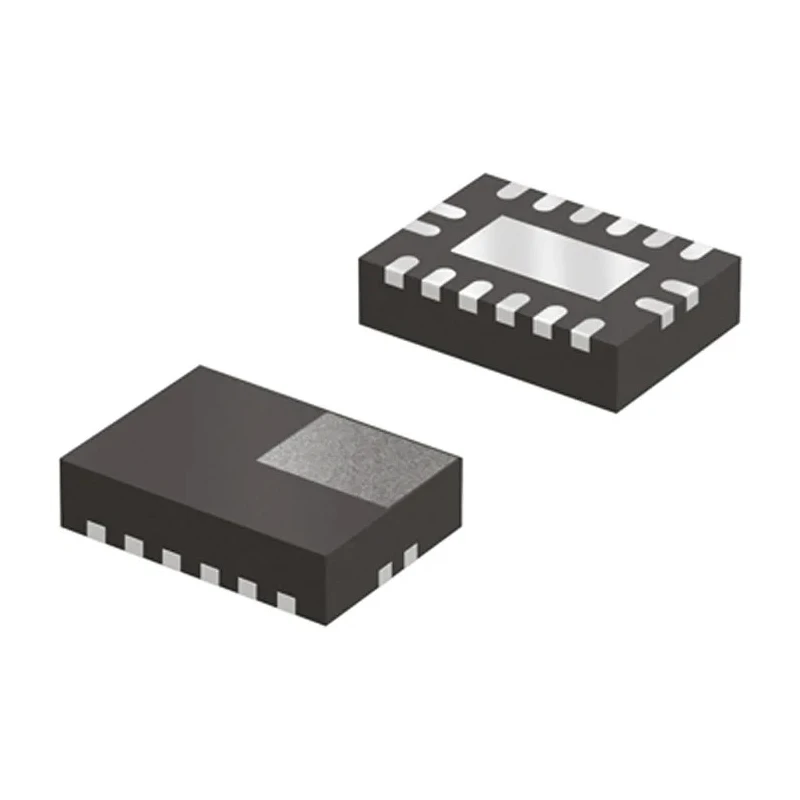

Nexperia Multiplexer 2 CMOS 2 x SP4T Demultiplexer 16-Pin DHVQFN

Name: Nexperia Multiplexer 2 CMOS 2 x SP4T Demultiplexer 16-Pin DHVQFN
Brand: Nexperia
SKU: 375946
Price: 0.32 USD
Availability: InStock



Category Multiplexer & Demultiplexer ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	950μm
Length	3.6mm
Model	SP4T
Width	2.6mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	CMOS
Series	74HC4052
Configuration	2 x SP4T
Maximum Operating Temperature	125°C
Package Type	DHVQFN
Minimum Operating Temperature	-40°C
Operating Voltage	2 to 6 V
Pin Count	16
Number of Elements per Chip	2
Maximum Supply Voltage	10V
Logic Family	CMOS
Minimum Supply Voltage	2V
Multiplexer/Demultiplexer	Demultiplexer, Multiplexer
Maximum On State Resistance	225Ω

Key Features

This device integrates two independent CMOS 2 x SP4T multiplexers/demultiplexers.
Operates over a supply voltage range of 2V to 6V with a maximum supply voltage of 10V.
Features low on-state resistance at a maximum of 225Ω with CMOS input and output compatibility.
Compact 16-pin DHVQFN package with dimensions 3.6 mm length by 2.6 mm width by 950 μm height.
Wide operating temperature range from -40°C up to 125°C suitable for industrial applications.
Designed for surface mount use, enabling efficient PCB integration.
Compatible with a broad range of electronic designs requiring analog multiplexing or demultiplexing.
Ideal for industrial, laboratory, electronic manufacturing, and communication equipment applications.

Product Description

Nexperia 74HC4052BQ,115 is a high-speed CMOS logic multiplexer featuring two independent 2 x SP4T multiplexers/demultiplexers within a compact 16-pin DHVQFN surface mount package. The device operates on low power CMOS technology with a supply voltage range from 2V to 6V and maximum voltage tolerance of 10V, making it suitable for precise signal routing and switching in various electronic circuits.

The multiplexer/demultiplexer supports CMOS input and output compatibility with a maximum on-state resistance of 225Ω, ensuring minimal signal loss and reliable performance. Its compact dimensions of 3.6 mm length, 2.6 mm width, and 950 μm height allow integration into dense PCB layouts while maintaining robust thermal tolerance between -40°C and 125°C, catering to industrial, laboratory, and embedded system applications.

This device from the 74HC4052 series does not carry automotive-grade certification but serves well in general electronics, communication equipment, and power management circuits. Surface mounting capability streamlines manufacturing and assembly processes.

This device integrates two independent CMOS 2 x SP4T multiplexers/demultiplexers. Operates over a supply voltage range of 2V to 6V with a maximum supply voltage of 10V. Features low on-state resistance at a maximum of 225Ω with CMOS input and output compatibility.

Compact 16-pin DHVQFN package with dimensions 3.6 mm length by 2.6 mm width by 950 μm height. Wide operating temperature range from -40°C up to 125°C suitable for industrial applications. Designed for surface mount use, enabling efficient PCB integration.

Compatible with a broad range of electronic designs requiring analog multiplexing or demultiplexing. Ideal for industrial, laboratory, electronic manufacturing, and communication equipment applications. Explore more electronic semiconductors and logic ICs in the Multiplexer & Demultiplexer ICs category at EnvMart for your design and production needs.
