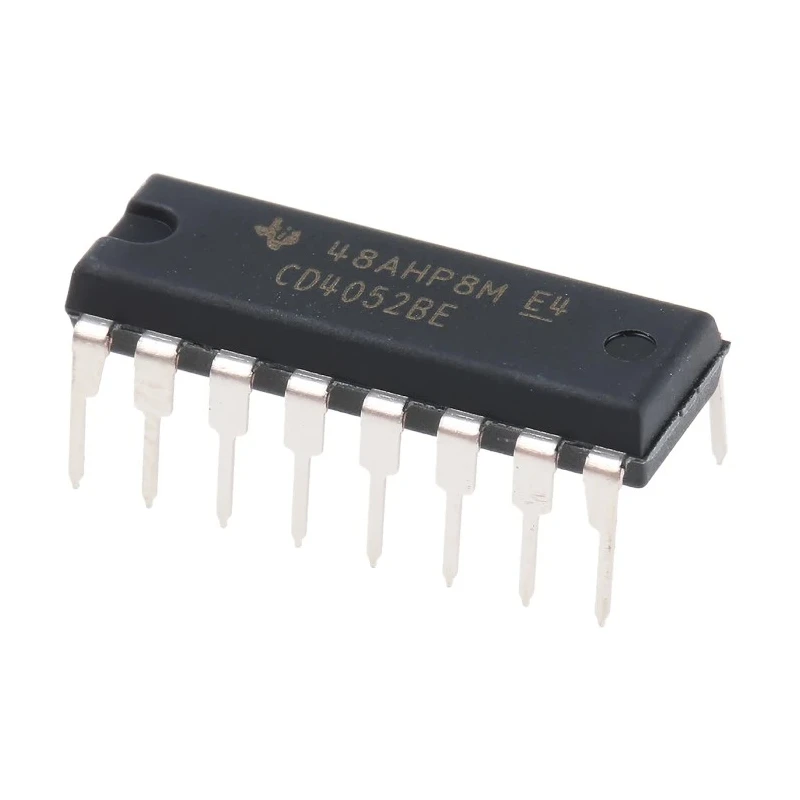

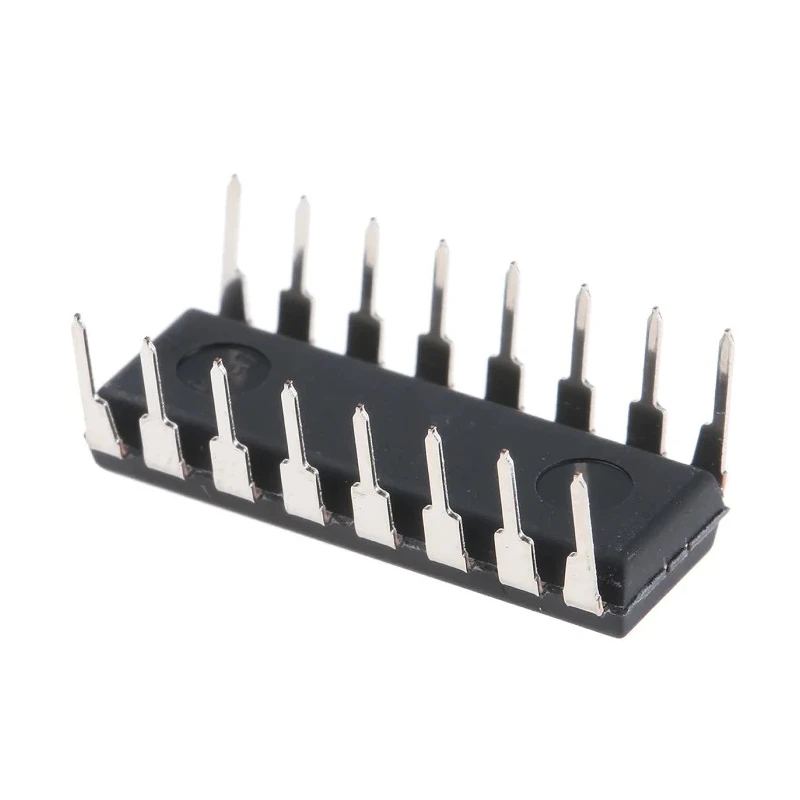

Texas Instruments Multiplexer, 2 CMOS Dual 4:1, Multiplexer Demultiplexer, 16-Pin PDIP CD4052BE

Texas Instruments CD4052BE is a dual 4:1 multiplexer and demultiplexer integrated circuit, belonging to the CMOS logic family. It is housed in a 16-pin PDIP package with through-hole mounting, designed for use in a wide range of electronic and industrial applications. The device operates with a wide supply voltage range from 3 to 18 volts, providing flexibility for diverse circuit requirements.

This multiplexer/demultiplexer IC features two independent 4:1 multiplexers or demultiplexers within one package, making it ideal for signal routing, data selection, and bus arbitration systems commonly used in industrial automation, laboratory instruments, and digital signal processing.

The CD4052BE operates reliably across an extended temperature range of -55°C to 125°C, which allows its use in harsh environmental conditions typically found in industrial or outdoor instrumentation. Its on-state resistance of up to 550 ohms is optimized to minimize signal attenuation and distortion.

Physical dimensions of the package are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height, making it suitable for standard PCB footprints and prototyping boards. Its CMOS technology ensures low power consumption and high noise immunity, enhancing system stability and reducing heat dissipation.

Common applications include automated test equipment, multiplexed signal inputs, communication systems, and measurement instrumentation where efficient switching and routing of analog or digital signals are required.

CMOS logic family ensures low power consumption and high noise immunity. Dual 4:1 configuration provides efficient multiplexing and demultiplexing capability. Wide operating voltage range from 3V up to 18V supports various circuit designs.

Through hole mount type and PDIP package facilitate easy prototyping and PCB assembly. Operating temperature range from -55°C to 125°C ensures reliable performance in harsh environments. Maximum on-state resistance of 550 ohms minimizes signal loss.

Compact dimensions: 19.3mm length, 6.35mm width, and 4.57mm height. Compatible with 4000 series CMOS logic devices from Texas Instruments.

This product is ideal for use in Industrial, Laboratory, Electronics Manufacturing, and Automation settings. Enhance your electronic design projects with this reliable and versatile multiplexer/demultiplexer IC from Texas Instruments. Browse the extensive range of Semiconductor and Logic ICs on EnvMart for more options.
