4D Systems 4DGL Graphics Touch 2.4 Inch TFT LCD Display Module 240 x 320 pixels Resistive Touch gen4-uLCD-24PT
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | TFT |
| Brand | 4D Systems |
| Current | 150mA |
| Height | 78.4mm |
| Model | gen4-uLCD-24PT |
| Depth | 48.96mm |
| Width | 44.8mm |
| Series | gen4 |
| Maximum Operating Temperature | 70°C |
| Brightness | 182cd/m² |
| Minimum Operating Temperature | -20°C |
| Screen Resolution | 240 x 320 pixel |
| Standards/Approvals | REACH, CE |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 49 x 37 mm |
| Backlight Type | LCD |
| Diagonal Display Size | 60.96mm |
| Contrast Ratio | 250:1 |
| 250 | 1 |
| Contrast Ratio 250 | 1 |
Key Features
- The display module offers a diagonal screen size of 60.96 mm with active viewing area of 49 x 37 mm.
- The touch panel is a 4-wire resistive type enabling precise touch inputs.
- The module supports a supply voltage range from 4 V to 5.5 V operating at 150 mA current.
- Designed for operating temperatures between -20°C and 70°C to suit various industrial environments.
- It is compliant with CE and REACH standards ensuring regulatory adherence.
- The display uses a TFT type LCD with built-in extensive 4DGL graphics and system library functions.
- It features a dedicated PWM audio pin to drive WAV file audio output via an external amplifier.

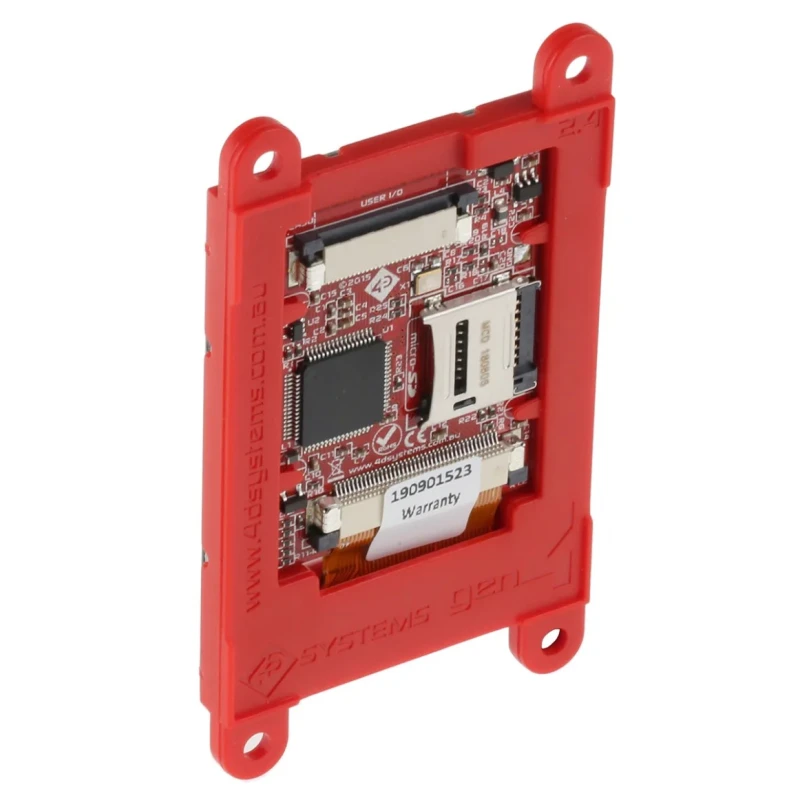

- The module includes an onboard latch type micro-SD card slot for multimedia storage and data logging.
Product Description

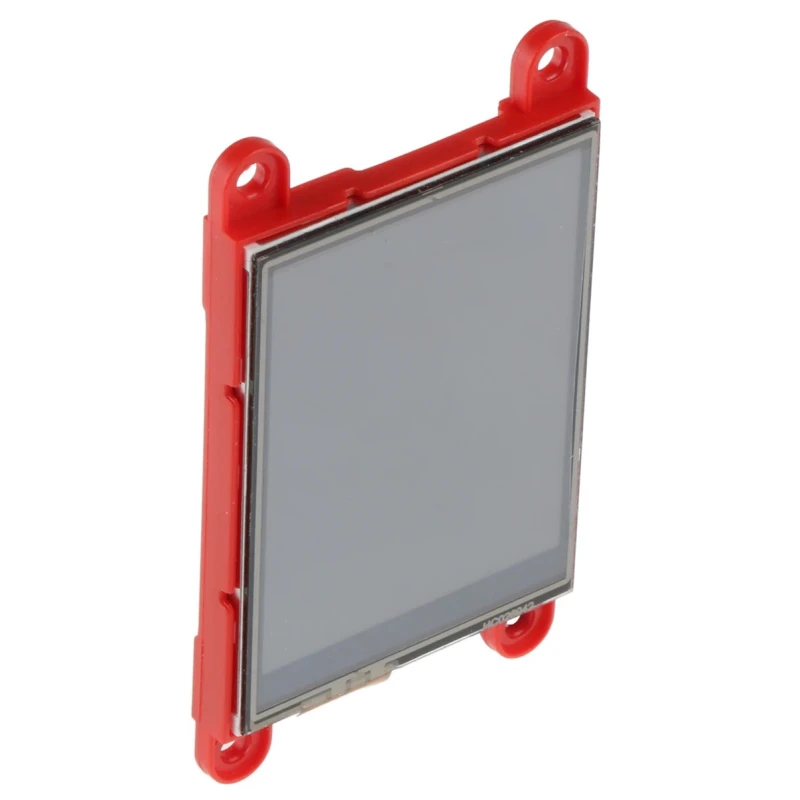

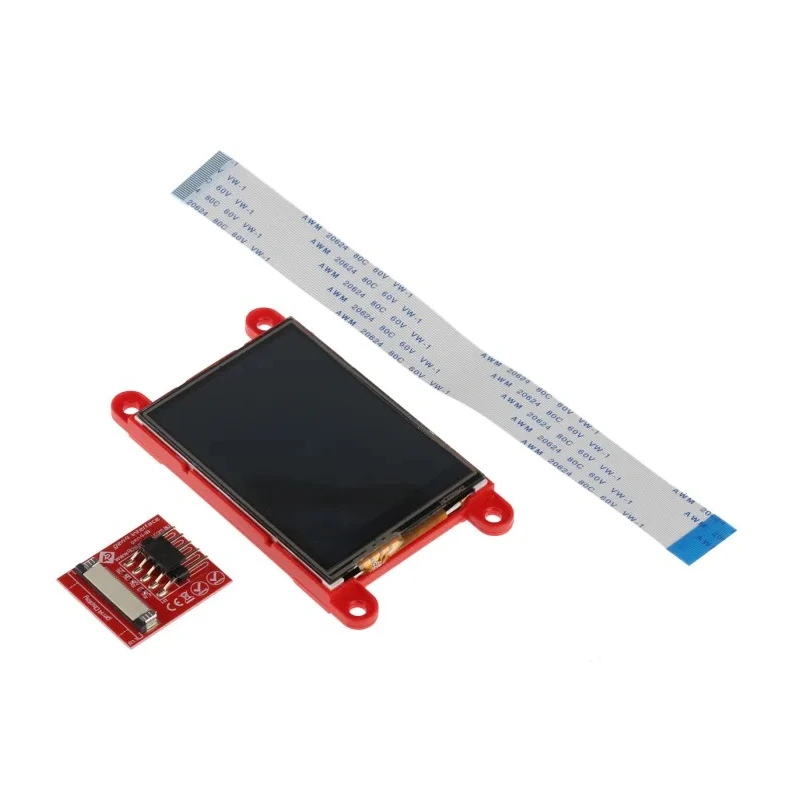

4D Systems gen4-uLCD-24PT is a high-quality LCD display module featuring a 2.4 inch diagonal TFT screen with a resolution of 240 x 320 pixels and integrated 4-wire resistive touch functionality.
The module offers an active viewing area measuring 49 mm by 37 mm and a brightness of 182 cd/m², delivering clear and vivid image quality suitable for industrial, laboratory, automation, and commercial applications.
This display module operates between supply voltages of 4 to 5.5 volts with a current draw of 150 mA. It is engineered to function effectively in temperature ranges from -20°C to 70°C, making it reliable for varied environmental conditions.
The unit incorporates a built-in 4DGL graphics and system library, facilitating accelerated GUI and multimedia development, including full colour images, animations, and video clips, leveraging 65K RGB true-to-life colours powered by the Picaso processor.
Additional features include a dedicated PWM audio output pin for WAV file playback through an external amplifier, an onboard latch type micro-SD card slot for multimedia storage and data logging, and FAT16 compatible file access.
Compliant with CE and REACH regulatory standards, this display module is manufactured in Australia and is suitable for use in electronics components assemblies, embedded systems, industrial automation, and display applications requiring high-quality graphical LCD touch screens.
The display module offers comprehensive 4DGL graphics support for rapid application development. Integrated 4-wire resistive touch screen enables responsive user interaction. High contrast ratio and brightness provide clear visibility under various lighting conditions.
Operating temperature range supports use in harsh industrial environments. On-board micro-SD card reader enhances multimedia capabilities and data logging. Dedicated audio PWM output facilitates sound generation with external amplifiers.
Compact dimensions of 78.4 mm (H) x 44.8 mm (W) x 48.96 mm (D) allow integration in space-constrained designs. CE and REACH compliance ensure product safety and environmental standards. Manufactured in Australia to high-quality standards.

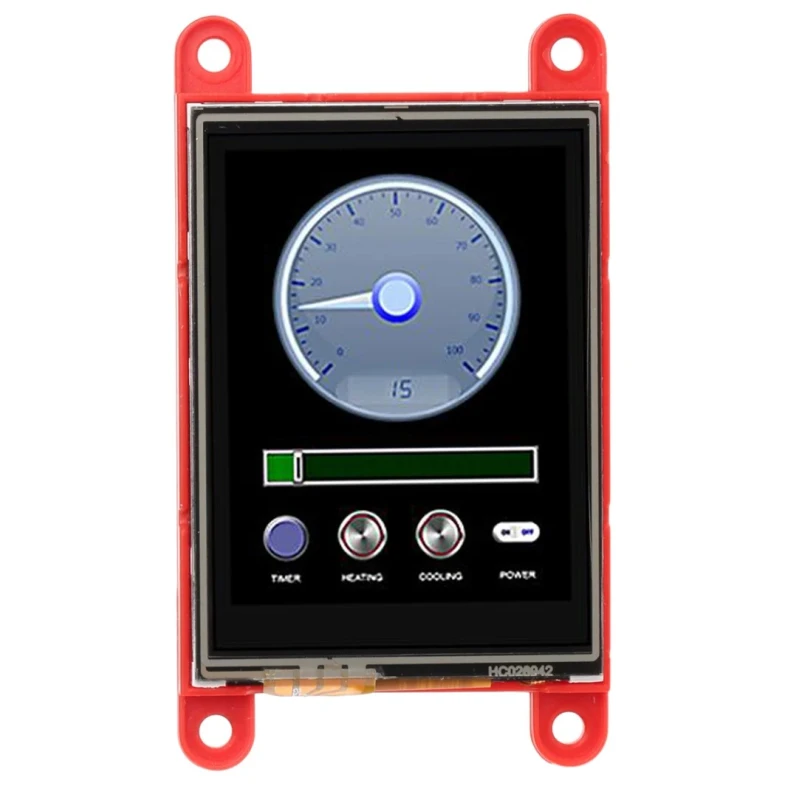

Supports full colour image and animation display for advanced graphical user interfaces.
This 4D Systems gen4-uLCD-24PT LCD Display Module is ideal for Industrial, Laboratory, Automation, Electronic Development Kits, and Embedded System projects that demand a reliable, compact touchscreen with versatile multimedia support. Browse further electronics components and LCD Display Modules in EnvMart's catalog for additional compatible products.
