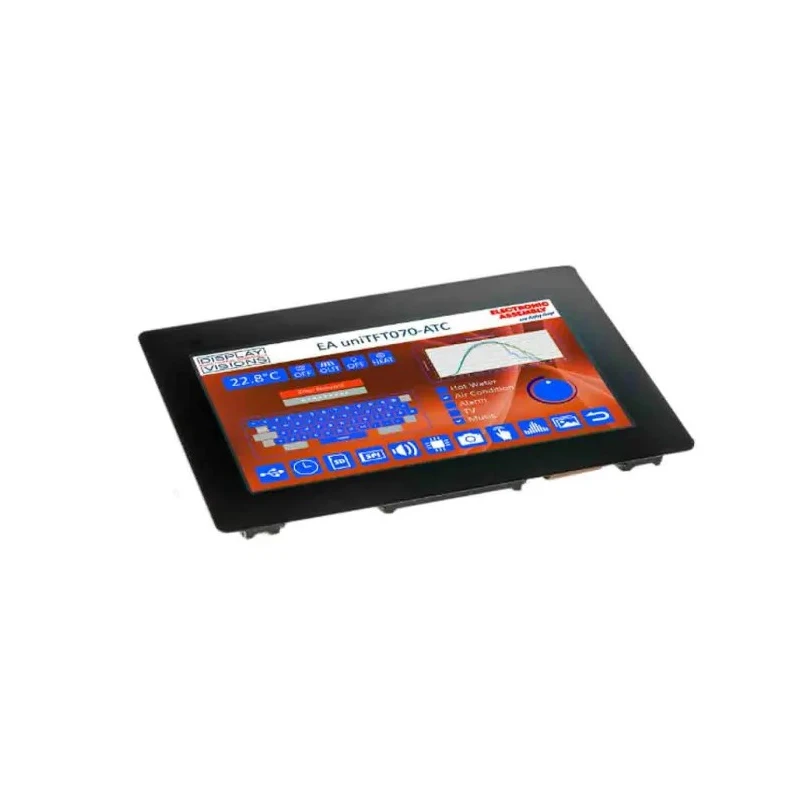

Display Visions EA uniTFT070-ATC 5-inch TFT LCD Display Module Touch Screen LED Backlight EA uniTFT070-ATC

Free Delivery in India | Lowest Global Shipping Charges

Display Visions EA uniTFT070-ATC 5-inch TFT LCD Display Module Touch Screen LED Backlight EA uniTFT070-ATC

Name: Display Visions EA uniTFT070-ATC 5-inch TFT LCD Display Module Touch Screen LED Backlight EA uniTFT070-ATC
Brand: Display Visions
SKU: 320573
Price: 1154.11 USD
Availability: InStock



Category LCD Display Module Brand Display Visions Condition New

Specifications

Country of Origin	Germany
Display Type	TFT
Brand	Display Visions
Model	EA uniTFT070-ATC
Series	EA uniTFT
Maximum Operating Temperature	70°C
Brightness	700cd/m²
Minimum Operating Temperature	-20°C
Minimum Supply Voltage	3.3V
Backlight Type	LED

Key Features

The module features a 5-inch TFT display with 700cd/m² brightness for clear visualization.
It supports touch screen functionality with LED backlight for enhanced user interaction.
Designed to operate between -20°C to 70°C, ensuring durability in varied environments.
Equipped with a built-in RTC including battery backup for time-keeping functions.
Includes 16 digital I/O ports onboard, expandable up to 125 inputs/outputs.
Supports 4 analogue input channels enabling complex sensor interfacing.
PWM output capability allows precise control of connected devices.
MicroSD card support facilitates storage of pictures, fonts, and macros.

Product Description

Display Visions EA uniTFT070-ATC is a highly functional 5-inch TFT LCD Display Module featuring a touch screen with an LED backlight. Operating at a supply voltage of 3.3V, this unit is designed to provide reliable and clear visual output with high brightness of 700cd/m². Its operational temperature range spans from -20°C to 70°C, making it suitable for use in industrial and commercial environments.

This HMI module includes an integrated real-time clock (RTC) with battery backup, allowing timekeeping even in the absence of power. Users can manipulate individual screen elements as independent objects responding to commands.

The module provides 16 digital input/output lines onboard, expandable up to 125, which offers remarkable flexibility for integrating with various control systems. Additionally, it supports 4 analogue inputs enabling sensor signal processing and PWM output generation for precise motor or actuator control.

Storage capabilities are enhanced by a MicroSD card slot that can store images, fonts, and macros, adding to the device's versatility. This module finds applications in industrial automation, manufacturing control panels, laboratory instrumentation, and embedded system displays.

The module features a 5-inch TFT display with 700cd/m² brightness for clear visualization. It supports touch screen functionality with LED backlight for enhanced user interaction. Designed to operate between -20°C to 70°C, ensuring durability in varied environments.

Equipped with a built-in RTC including battery backup for time-keeping functions. Includes 16 digital I/O ports onboard, expandable up to 125 inputs/outputs. Supports 4 analogue input channels enabling complex sensor interfacing.

PWM output capability allows precise control of connected devices. MicroSD card support facilitates storage of pictures, fonts, and macros. Powered by a stable 3.3V supply voltage ensuring low power consumption. Originates from Germany ensuring stringent manufacturing quality.
