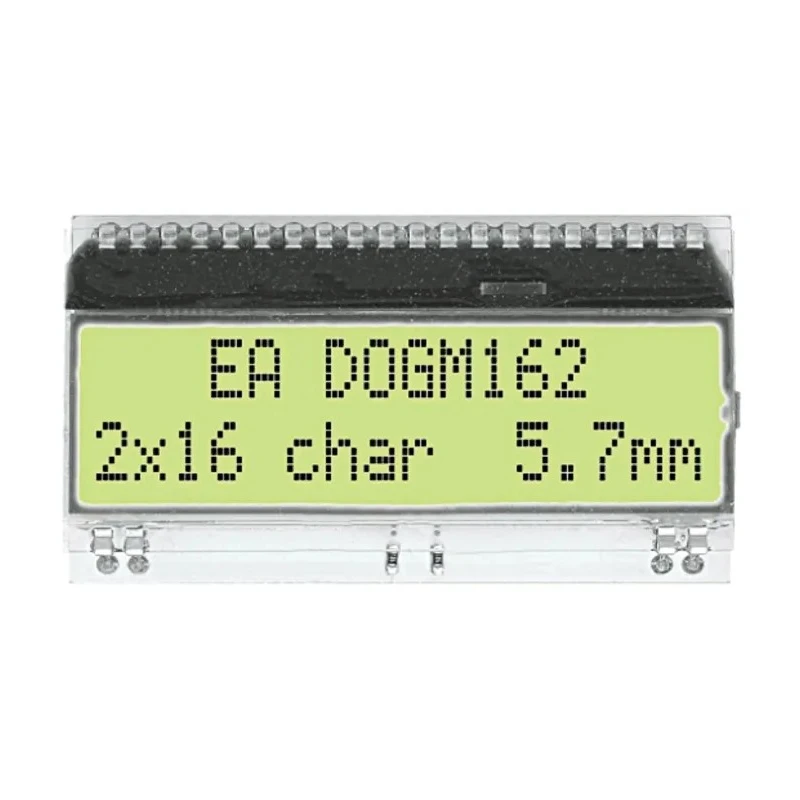

Display Visions EA DOG Alphanumeric LED LCD Monochrome Display, Green and Yellow Illumination, 2 x 16 EA DOGM162L-A
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | Alphanumeric |
| Brand | Display Visions |
| Model | EA DOGM162L-A |
| Series | EA DOG |
| Character height | 5.6mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 55mm |
| External Depth | 2mm |
| External Height | 27.9mm |
| Interface Type | SPI, 8-Bit, 4 Bit |
| Standards/Approvals | RoHS |
| Character Width | 2.5mm |
| Illumination Colour | Green, Yellow |
| Viewing Area Dimensions | 51 x 15 mm |
| Backlight Type | LED |
| Character Matrix | 2 x 16 |
Key Features
- This display features a 2 x 16 character matrix suitable for alphanumeric data presentation.
- The viewing area measures 51 x 15 mm for clear visibility.
- It supports multiple interface types including SPI, 8-bit, and 4-bit parallel interfaces.
- The LED backlighting is available in green and yellow colors with corresponding background colors for enhanced readability.
- Designed to operate reliably within temperature ranges from -20°C to 70°C.
- The module thickness is compact at 2 mm, supporting easy integration in compact devices.
- Character dimensions are 5.6 mm in height and 2.5 mm in width for clear text display.
- Conforms to RoHS standards and is manufactured in Germany ensuring quality compliance.
Product Description
Display Visions EA DOGM162L-A is a high-contrast alphanumeric LED LCD monochrome display, providing 2 rows of 16 characters each, illuminated in green and yellow. This LCD module is designed primarily for use in compact handheld devices and embedded systems requiring clear alphanumeric data presentation.
Featuring a character matrix of 2 x 16, the display offers a viewing area of 51 x 15 mm within a slim 2 mm external depth and dimensions of 55 mm width by 27.9 mm height. The character height of 5.6 mm and width of 2.5 mm ensures excellent readability.
The module supports flexible interfacing through SPI, 8-Bit, and 4-Bit communication protocols, powered by a single 3.3V or 5V supply. The LED backlighting in green and yellow enhances visibility whilst maintaining energy efficiency.
Operating temperature ranges from -20°C to 70°C, making it suitable for a variety of industrial and commercial applications including electronic instrumentation, data acquisition systems, and embedded control units.
Provides a compact, high-contrast alphanumeric display with 2 x 16 characters. Supports SPI and parallel 4/8-bit interfaces for flexible integration. LED backlight available in green and yellow illumination colors. Compact external depth of just 2 mm, ideal for slim device designs.
Wide operating temperature range for reliable industrial performance. Compliance with RoHS directives ensures environmental safety. Manufactured in Germany to strict quality standards.
This module is ideal for industrial, laboratory, and embedded electronics projects requiring a reliable and clear display interface. Accessories such as separate LED backlights are available to tailor illumination effects based on application requirements.
Explore more alphanumeric and monochrome LCD displays in the EnvMart Electronics Components category for your industrial and commercial display solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this unit are 55 mm in width, 27.9 mm in height, and a compact depth of 2 mm.
It operates reliably within a temperature range of -20°C to 70°C, making it suitable for various environments.
This display supports multiple interface types including SPI, 8-bit, and 4-bit parallel interfaces for flexible integration.
Each character has a height of 5.6 mm and a width of 2.5 mm, ensuring clear readability.
Yes, it conforms to RoHS standards, ensuring environmental safety and compliance.
This unit is manufactured in Germany, adhering to strict quality standards.
The viewing area measures 51 x 15 mm, providing clear visibility for the displayed data.
It is designed for use in compact handheld devices, embedded systems, electronic instrumentation, and data acquisition systems.
The backlight type is LED, which helps in enhancing the visibility of the display.
The country of origin for this model is Germany.
