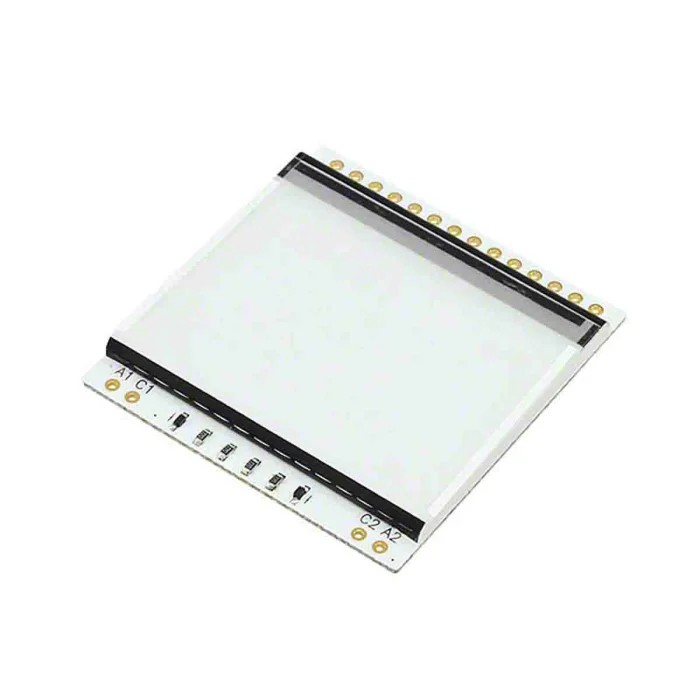

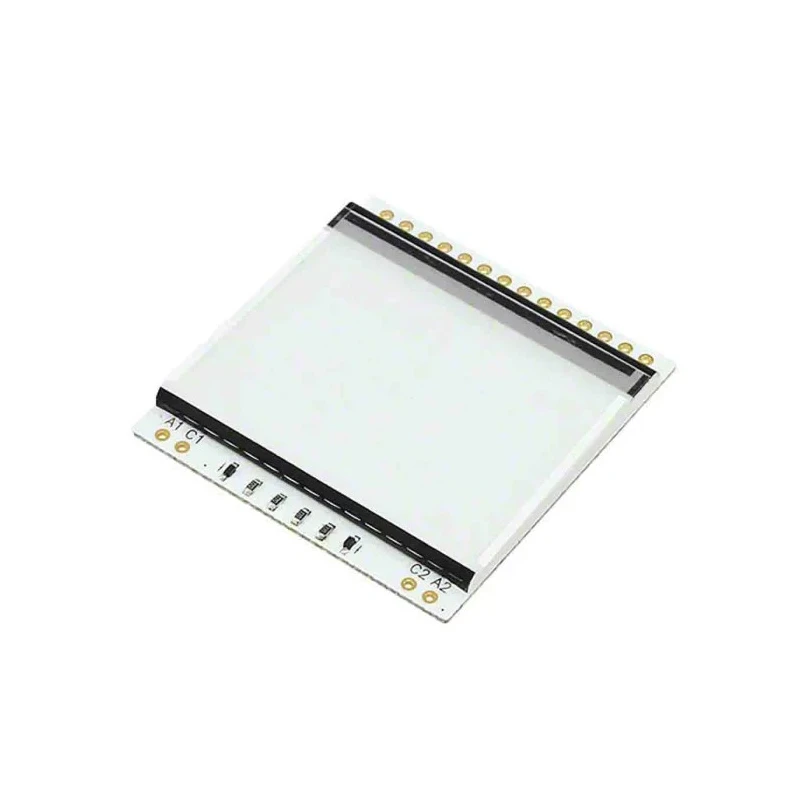

Display Visions Display Backlight White LED 28 Pins, Variable Brightness EA LED39x41-W
Specifications
| Country of Origin | China |
|---|---|
| Brand | Display Visions |
| Height | 7.05mm |
| Model | EA LED39x41-W |
| Width | 3mm |
| Series | EA DOGS104x-A |
| Number of Pins | 28 |
| Backlight Type | LED |
| Backlight Colours | White |
Key Features
- High contrast LCD supertwist display with 10μm dot gap.
- Backlight type is LED with white color for clear visibility.
- Variable brightness from 5mA to 80mA for brightness control.
- Compact and ultra-flat design, 66 x 40 mm size with standard font of 4.8 mm.
- Integrated UC1701 controller with graphic RAM for efficient display handling.
- Supports 4-bit, 8-bit SPI and I²C interfaces for versatile connectivity.
- Mounts by direct soldering onto PCB, no mounting hardware required.
Product Description
Display Visions EA LED39x41-W Display Backlight is a high-performance backlight module with 28 pins and white LED illumination. It is designed for electronic display applications that require precise brightness control and compact dimensions. The backlight features variable brightness, providing lighting from 5mA to 80mA, suitable for various ambient conditions.
This display backlight integrates with the UC1701 controller, which includes graphic RAM, enabling efficient handling of graphical data. The high contrast LCD supertwist display technology offers a 10μm dot gap, ensuring sharp display quality with STN and FSTN options.
The module's ultra-flat form factor measures only 2.0 mm thickness without the backlight and 5.8 mm including the LED backlight. Its compact footprint of 66 x 40 mm and standard font size of 4.8 mm (4 x 10) cells make it ideal for space-constrained electronics designs.
It supports multiple communication protocols including 4-bit and 8-bit SPI and I²C interfaces, allowing easy integration into various systems. Installation is straightforward as it can be soldered directly onto printed circuit boards (PCBs) without any additional mounting hardware.
The product originates from China and complies with standard manufacturing guidelines but has no listed approvals or certifications. This display backlight is widely used in industrial, electronic, and commercial display modules requiring consistent white LED illumination.
High contrast LCD supertwist display with 10μm dot gap. Backlight type is LED with white color for clear visibility. Variable brightness from 5mA to 80mA for brightness control. Compact and ultra-flat design, 66 x 40 mm size with standard font of 4.8 mm.
Integrated UC1701 controller with graphic RAM for efficient display handling. Supports 4-bit, 8-bit SPI and I²C interfaces for versatile connectivity. Mounts by direct soldering onto PCB, no mounting hardware required. Height of display module is 7.05 mm, width is 3 mm for low-profile installation.
Explore more Display Backlighting solutions and Display Visions products on EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display backlight offers variable brightness control ranging from 5mA to 80mA, allowing for adjustments based on ambient conditions.
This model has a compact footprint measuring 66 x 40 mm, with a height of 7.05 mm and a width of 3 mm.
It supports 4-bit and 8-bit SPI as well as I²C interfaces for versatile connectivity in various systems.
The backlight mounts by direct soldering onto printed circuit boards (PCBs), eliminating the need for additional mounting hardware.
The EA LED39x41-W utilizes a white LED backlight, providing clear visibility for display applications.
The high contrast LCD supertwist display features a dot gap of 10μm, ensuring sharp display quality.
This model integrates the UC1701 controller, which includes graphic RAM for efficient handling of graphical data.
The standard font size for this display is 4.8 mm, accommodating 4 x 10 cells.
Including the LED backlight, the display module has a thickness of 5.8 mm.
The EA LED39x41-W display backlight is manufactured in China.
This model is part of the EA DOGS104x-A series.
This display backlight is widely used in industrial, electronic, and commercial display modules requiring consistent white LED illumination.
