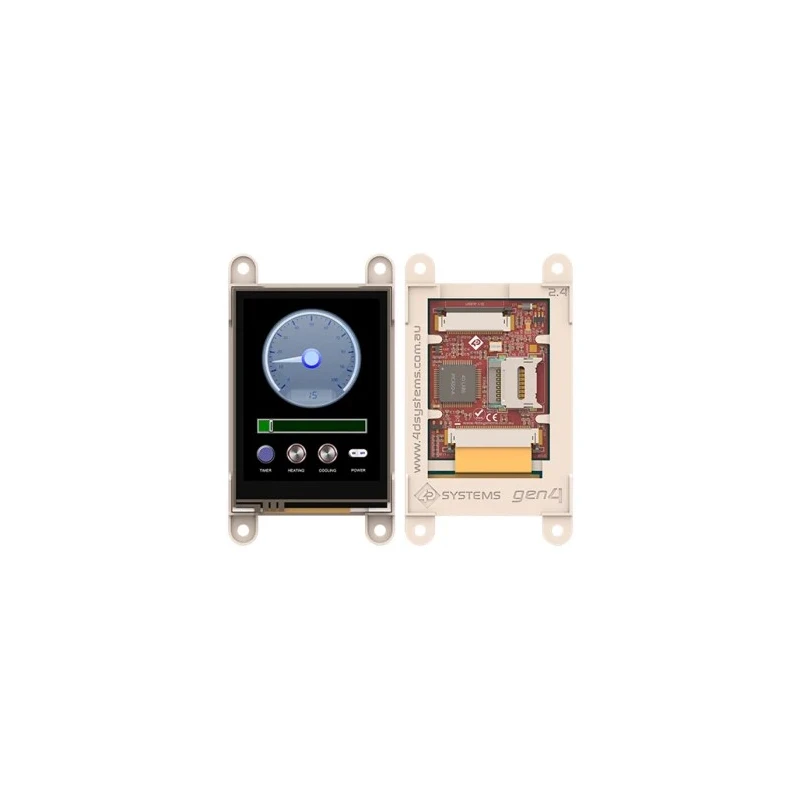

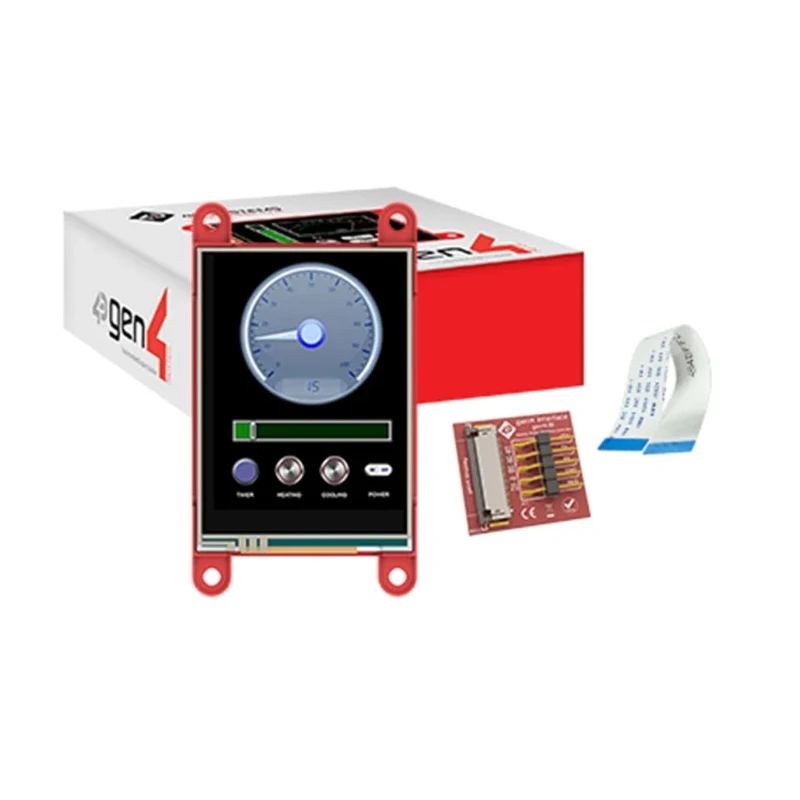

4D Systems gen4-uLCD-24PT-AR LCD Display Module Touch Screen 60.96 mm 240 x 320 pixel TFT Australia
Specifications
| Country of Origin | Australia |
|---|---|
| Display Type | TFT |
| Brand | 4D Systems |
| Current | 150mA |
| Height | 78.4mm |
| Model | gen4-uLCD-24PT-AR |
| Depth | 48.96mm |
| Width | 44.8mm |
| Series | gen4 |
| Maximum Operating Temperature | 70°C |
| Brightness | 182cd/m² |
| Minimum Operating Temperature | -20°C |
| Screen Resolution | 240 x 320 pixel |
| Standards/Approvals | CE, REACH |
| Touch Screen Type | Resistive |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4V |
| Viewing Area Dimensions | 49 x 37 mm |
| Backlight Type | LCD |
| Diagonal Display Size | 60.96mm |
| Contrast Ratio | 250:1 |
| 250 | 1 |
| Contrast Ratio 250 | 1 |
Key Features
- Includes a resistive 4-wire touchscreen for interactive control.
- Brightness of 182 cd/m² ensures clear visibility.
- Operating voltage range from 4 V to 5.5 V voltage supply.
- Wide operating temperature range from -20°C to 70°C for harsh environments.
- Compact dimensions with 78.4 mm height, 44.8 mm width, and 48.96 mm depth.
- Embedded PICASO processor for efficient graphics processing.
- Supports 65K true color display and multimedia features via micro-SD card.
- CE and REACH compliant, suitable for industrial and embedded applications.
Product Description
4D Systems gen4-uLCD-24PT-AR LCD Display Module is a high performance 2.4-inch TFT colour display with integrated 4-wire resistive touchscreen, designed for easy integration in embedded systems. It offers a diagonal display size of 60.96 mm with an effective viewing area of 49 x 37 mm for vivid visual output at 240 x 320 pixel resolution with 65,000 true colors. The module contains the Picaso processor for graphical and system control, complemented by a dedicated PWM audio pin enabling WAV playback from a micro-SD card.
This module operates within a voltage range of 4 V to 5.5 V and supports wide environmental conditions with an operating temperature from -20°C to 70°C. Its compact design measures 78.4 mm in height, 44.8 mm width, and 48.96 mm depth, making it suitable for space-constrained electronic applications.
The display supports multimedia storage and data logging through an onboard micro-SD slot with DOS-compatible FAT16 file system. With a high brightness of 182 cd/m² and contrast ratio of 250:1, it delivers clear and sharp visuals. Its resistive touchscreen technology allows precise touch inputs for interactive interfaces.
Manufactured in Australia, this display module is CE and REACH compliant, ensuring adherence to strict quality and environmental standards. Features integrated 4DGL graphics and system library functions for versatile graphics display.
Dedicated audio PWM pin for external amplifier sound generation. Supports full colour images, animations, icons, and video clips display. Onboard micro-SD card slot enables multimedia storage and file access. Compact form factor suitable for industrial, laboratory, and embedded automation systems.
Enhanced durability and operating range for use in industrial environments. CE and REACH standards compliant for quality assurance.
This 4D Systems module is ideally suited for electronics projects, industrial monitoring, embedded control systems, and other applications requiring an interactive colour display. Explore more high quality LCD Display Modules and components from EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display resolution of the gen4-uLCD-24PT-AR is 240 x 320 pixels.
It operates within a voltage range of 4 V to 5.5 V.
The dimensions are 78.4 mm in height, 44.8 mm in width, and 48.96 mm in depth.
The brightness of this display is 182 cd/m², providing clear visibility.
This model can operate in temperatures ranging from -20°C to 70°C.
It features a resistive 4-wire touchscreen for interactive control.
It supports multimedia features through an onboard micro-SD card slot, enabling WAV playback and data logging.
The unit is CE and REACH compliant, ensuring adherence to strict quality and environmental standards.
The contrast ratio of the gen4-uLCD-24PT-AR is 250:1.
The diagonal display size is 60.96 mm.
It contains an embedded PICASO processor for efficient graphics processing.
This model is suitable for industrial monitoring, embedded control systems, and other applications requiring an interactive colour display.
