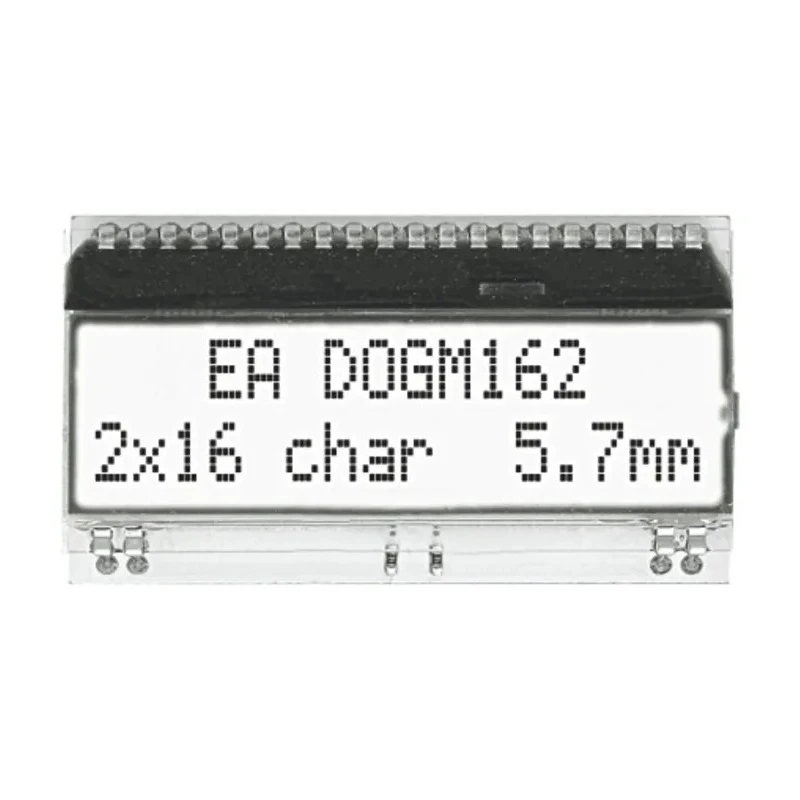

Display Visions LCD Monochrome Alphanumeric LED LCD Display Module, 2 x 16 Characters, White on Black, EA DOGM162W-A
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Alphanumeric |
| Brand | Display Visions |
| Model | EA DOGM162W-A |
| Series | EA DOG |
| Character height | 5.6mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 55mm |
| External Depth | 2mm |
| External Height | 27.9mm |
| Interface Type | 8-Bit, SPI, 4 Bit |
| Standards/Approvals | RoHS |
| Character Width | 2.5mm |
| Illumination Colour | White |
| Viewing Area Dimensions | 51 x 15 mm |
| Backlight Type | LED |
| Character Matrix | 2 x 16 |
Key Features
- The module has a viewing area measuring 51 x 15 mm, providing clear visibility.
- Supports interface types including 8-Bit, SPI, and 4-Bit.
- Equipped with white LED backlight for enhanced readability.
- Operates reliably within temperature range of -20°C to 70°C.
- Character height is 5.6 mm and width is 2.5 mm for easy reading.
- Complies with RoHS standards ensuring environmental safety.
- Suitable for handheld and compact electronic device applications.
- Requires a single 3.3V or 5V power supply for operation.
Product Description
Display Visions EA DOGM162W-A is a high-contrast LCD monochrome alphanumeric display module designed for compact handheld and embedded device applications. It features a 2 x 16 character matrix with white characters displayed on a black background, ensuring clear visual output.
The display has a viewing area of 51 mm by 15 mm, accommodating text visibility in a compact form factor measuring 55 mm width, 27.9 mm height, and 2 mm depth. The characters have a height of 5.6 mm and width of 2.5 mm, suitable for legible alphanumeric output.
Multiple interface options including 8-bit parallel, SPI, and 4-bit modes offer flexible integration choices. The backlight employs white LED illumination enhancing readability in low-light conditions. Operating temperature ranges from -20°C to 70°C ensures robust performance across various industrial and laboratory environments.
Compliant with RoHS standards, this module is environmentally friendly. The product is part of the EA DOG series from Electronic Assembly, powered by a single 3.3V or 5V supply and requires no mounting, simplifying solder integration into PCBs.
The module is ideal for instrumentation, control panels, medical devices, and handheld electronics that require clear alphanumeric display. Standard operating voltages and flexible interfaces allow usage across a wide range of industrial and commercial applications.
Peripheral add-ons such as detachable LED backlights can be ordered separately for enhanced display functionalities. This display module is a reliable choice for applications needing compact, efficient, and clear data visualization.
The low-depth form factor facilitates its use in space-constrained electronic assemblies. Explore more Display Visions products on EnvMart for advanced display solutions designed to meet industrial, laboratory, and commercial needs.
Explore more products in our LCD Display Module category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display module features a character matrix of 2 x 16 characters.
The viewing area of this module measures 51 mm by 15 mm.
It operates reliably within a temperature range of -20°C to 70°C.
The display is equipped with a white LED backlight to enhance readability.
This model requires a single power supply of either 3.3V or 5V for operation.
It supports multiple interface types, including 8-Bit, SPI, and 4-Bit modes.
The external dimensions are 55 mm in width, 27.9 mm in height, and 2 mm in depth.
The characters have a height of 5.6 mm and a width of 2.5 mm.
Yes, this model complies with RoHS standards, ensuring environmental safety.
It is suitable for handheld and compact electronic device applications, including instrumentation and control panels.
The country of origin for this display module is India.
Yes, peripheral add-ons such as detachable LED backlights can be ordered separately for enhanced functionalities.
