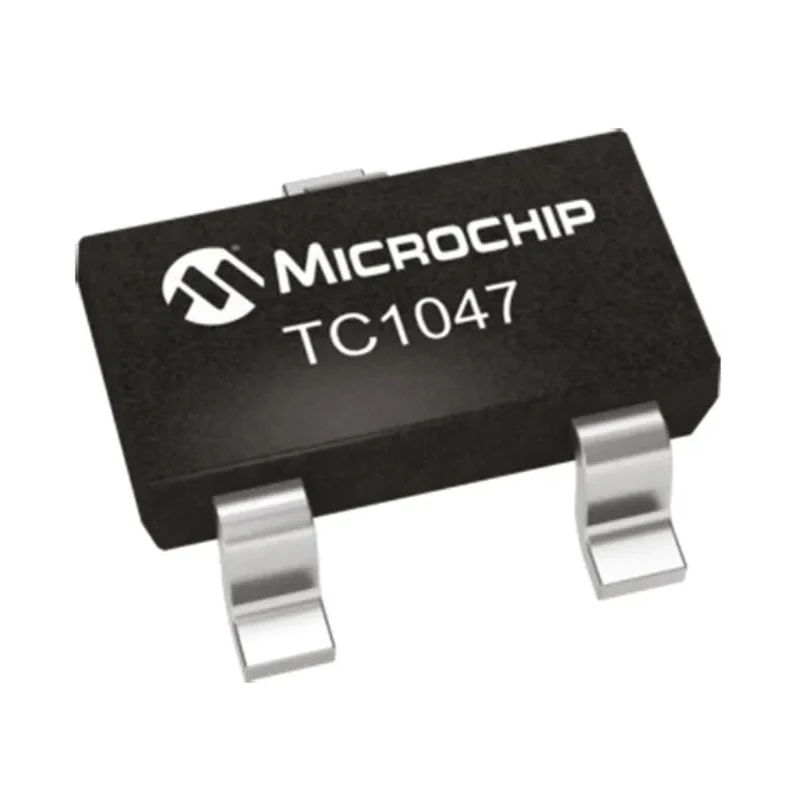

Microchip Voltage Output Voltage Temperature Sensor, Surface Mount, Analogue, ±2°C Accuracy, 3-Pin SOT-23 TC1047
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.04mm |
| Model | TC1047 |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | TC1047 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 4.4V |
| Minimum Supply Voltage | 2.7V |
| Sensor Gain | 10mV/°C |
Key Features
- Operates with supply voltage ranging from 2.7V to 4.4V for versatile power compatibility.
- Measures temperatures from -40°C up to 125°C, suitable for wide temperature ranges.
- Analogue output voltage varies directly with temperature, simplifying integration.
- Compact dimensions of 3.04mm length, 1.4mm width, and 1.02mm height enable space-saving designs.
- Ideal for temperature regulation, mobile devices, and temperature-controlled fans.
- Low pin count (3 pins) minimizes PCB footprint and assembly complexity.
- Stable sensor gain of 10mV/°C ensures consistent and linear temperature conversion.
- Surface mount (SOT-23) packaging supports modern automated manufacturing processes.
Product Description
Microchip TC1047 is a voltage output temperature sensor featuring a compact 3-pin SOT-23 surface mount package. It provides an analogue voltage output directly proportional to measured temperatures ranging from -40°C to 125°C, with an accuracy of ±2°C. The sensor operates within a supply voltage range of 2.7V to 4.4V, enabling low power consumption suitable for various electronic devices.
This Temperature Sensor benefits mobile phones, temperature regulation systems, temperature-controlled fans, and other electronic applications requiring precise thermal monitoring. Its sensor gain of 10mV/°C ensures reliable and linear conversion of temperature to voltage, facilitating straightforward signal processing.
Compact dimensions (3.04mm length, 1.4mm width, and 1.02mm height) allow integration in space-constrained designs. Its surface mount SOT-23 package supports automated PCB assembly, increasing production efficiency.
The TC1047 operates without adherence to automotive standards, making it versatile for consumer and industrial applications where certified automotive compliance is not mandatory. Operates from 2.7V to 4.4V supply voltage.
Measures -40°C to 125°C temperature range. Provides analogue voltage output proportional to temperature. Offers ±2°C accuracy for general precision needs. Compact 3-pin SOT-23 surface mount package. Stable sensor gain of 10mV/°C ensures linear response.
Suitable for mobile and temperature control applications. Small footprint with dimensions 3.04 x 1.4 x 1.02 mm. Non-automotive standard compliant device. Optimized for industrial and laboratory sensor use.
This product is ideal for industrial control systems, laboratory instrumentation, consumer electronics, and HVAC applications requiring reliable temperature measurement. Explore other Microchip sensor solutions and related temperature sensing devices in the EnvMart catalogue to support your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC1047 measures temperatures from -40°C to 125°C, making it suitable for a wide range of applications.
This model has an accuracy of ±2°C, providing reliable temperature measurements for various applications.
It operates with a supply voltage ranging from 2.7V to 4.4V, allowing for versatile power compatibility.
The sensor provides an analogue voltage output that varies directly with temperature, simplifying integration into electronic systems.
This model has compact dimensions of 3.04mm in length, 1.4mm in width, and 1.02mm in height, which is ideal for space-constrained designs.
The TC1047 features a low pin count of 3 pins, minimizing PCB footprint and assembly complexity.
It has a stable sensor gain of 10mV/°C, ensuring consistent and linear temperature conversion.
This temperature sensor comes in a surface mount SOT-23 package, supporting modern automated manufacturing processes.
It is ideal for applications in mobile devices, temperature regulation systems, and temperature-controlled fans, among others.
The TC1047 operates without adherence to automotive standards, making it versatile for consumer and industrial applications where such compliance is not mandatory.
The interface type of this model is analogue, facilitating straightforward signal processing in electronic applications.
The TC1047 is manufactured in India, reflecting its origin for sourcing.
