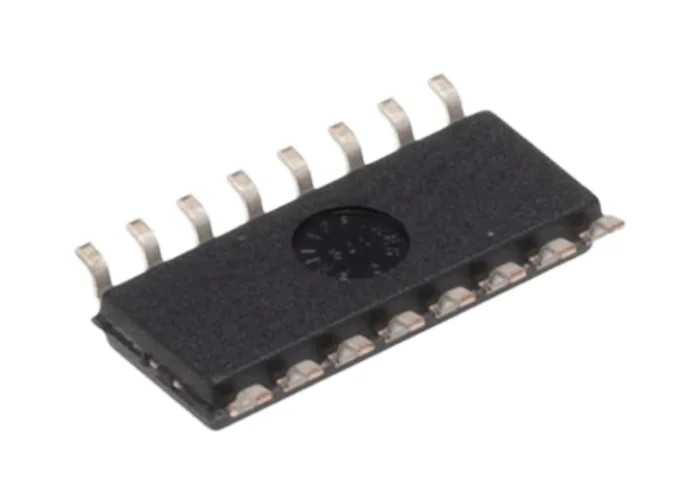

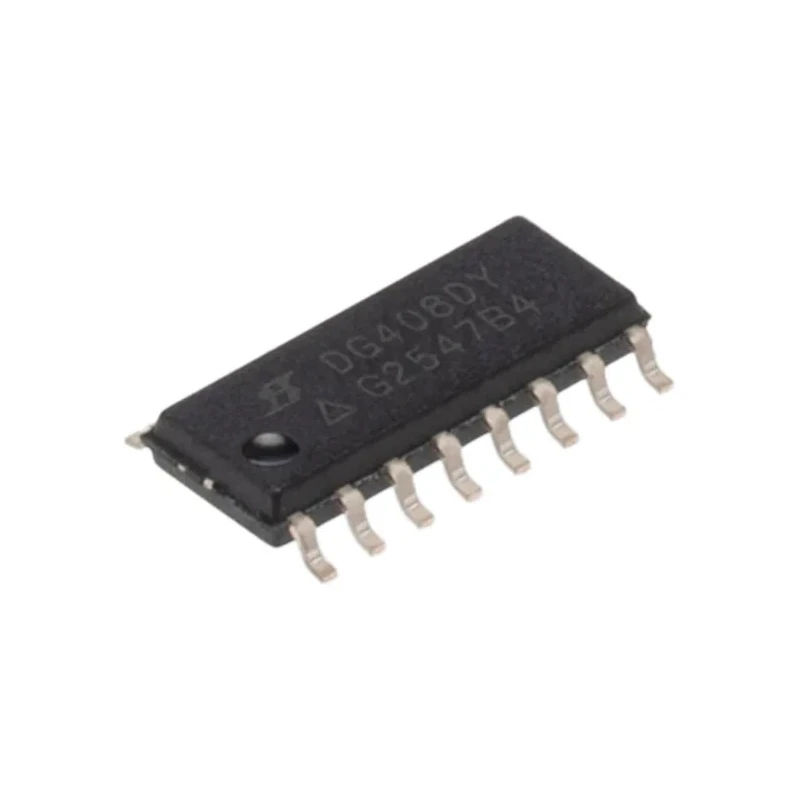

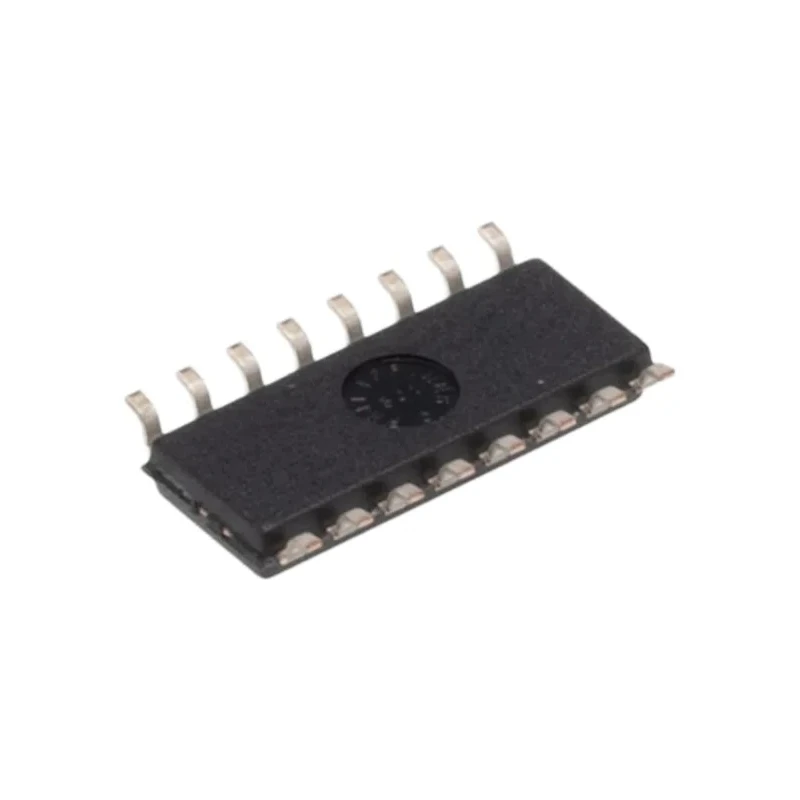

Vishay Multiplexer 1 CMOS Single 8:1 Surface Mount 16-Pin SOIC Package DG408DY-T1-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG408DY-T1-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG408 |
| Configuration | Single 8:1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-4792PBrand: VishayManufacturers Part No.: DG408DY-T1-E3 |
| Pin Count | 16 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 36V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 5V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 125Ω |
| ConfigurationSingle 8 | 1 |
| Single 8 | 1 |
Key Features
- Operates over a wide voltage range of 5V to 36V allowing high-voltage signal handling.
- Features 125 ohms maximum on-state resistance to preserve signal integrity.
- Supports a broad operating temperature range from -40°C to 85°C.
- Compact 16-pin SOIC package with dimensions 10mm length, 4mm width, and 1.55mm height.
- Single element chip configuration for one-channel 8-to-1 multiplexing.
- Compatible with CMOS and TTL logic levels for low-power interfacing.
- Designed for surface mounting, facilitating compact board layouts.
- Suitable for analogue audio, sensor signal multiplexing, and data acquisition systems.
Product Description
Vishay DG408DY-T1-E3 is a single 8:1 CMOS multiplexer integrated circuit designed for surface mount applications. It features a 16-pin SOIC package with a compact footprint measuring 10mm by 4mm and a height of 1.55mm, making it ideal for space-constrained designs.
This device operates across a wide supply voltage range of 5V to 36V, enabling it to handle higher-voltage analogue signals safely. The multiplexer boasts a low maximum on-state resistance of 125 ohms, preserving signal integrity across the switched paths. It supports industrial temperature ranges from -40°C to 85°C, ensuring reliable operation in harsh environments.
The chip contains a single switching element configured as an 8-to-1 multiplexer, allowing selection among eight inputs routed to a single output. It is fully compatible with CMOS and TTL logic families, facilitating low power and mixed-signal control board interfacing.
Applications for the DG408DY-T1-E3 include multiplexing sensor signals in measurement systems, routing analogue audio or instrumentation lines, and selection switching in data acquisition modules. Its surface-mount SOIC package simplifies assembly and is suited to compact PCB layouts.
Operates from 5V to 36V supply voltage range. Low on-state resistance of 125 ohms. Wide temperature range from -40°C to 85°C. Compact 16-pin SOIC package (10mm x 4mm x 1.55mm). Single element 8:1 multiplexing configuration.
CMOS and TTL logic level compatible. Surface mount mount type for PCB assembly.
This Vishay multiplexer is designed for use in industrial, laboratory, instrumentation, and communication systems requiring reliable analogue signal routing. Explore EnvMart’s range of semiconductor multiplexers for advanced electronic design solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a wide supply voltage range of 5V to 36V.
The maximum on-state resistance is 125 ohms, which helps preserve signal integrity.
It supports an operating temperature range from -40°C to 85°C.
The package dimensions are 10mm in length, 4mm in width, and 1.55mm in height.
This model is configured as a single 8-to-1 multiplexer, allowing selection among eight inputs routed to a single output.
Yes, it is fully compatible with both CMOS and TTL logic levels for low-power interfacing.
This multiplexer has a pin count of 16.
It is designed for surface mounting, making it suitable for compact PCB layouts.
It is suitable for applications such as multiplexing sensor signals, routing analogue audio, and data acquisition systems.
The logic family for this device is CMOS.
The country of origin for this product is India.
The chip configuration is a single element designed for 8-to-1 multiplexing.
