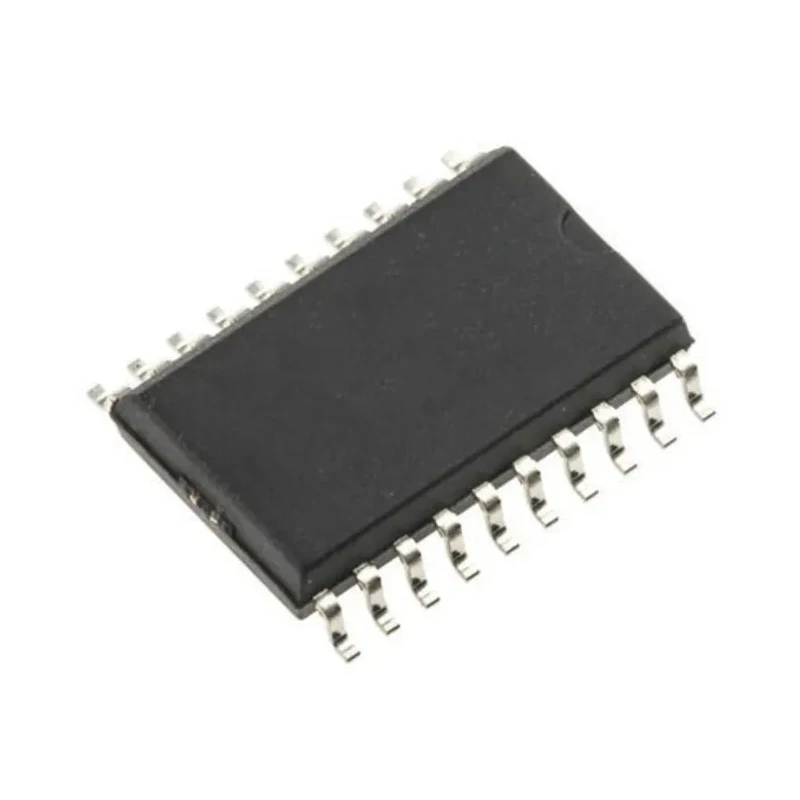

Maxim Integrated Multiplexer, 4 CMOS Quad SPDT, 20-Pin SO-16 MAX333CWP+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 2.35mm |
| Length | 13mm |
| Model | MAX333CWP+ |
| Width | 7.6mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | MAX333 |
| Configuration | Quad SPDT |
| Maximum Operating Temperature | 70°C |
| Package Type | SO-16 |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 30V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -18V |
| Maximum On State Resistance | 175Ω |
Key Features
- Low cost per channel for efficient circuit design.
- Four independent single-pole double-throw (SPDT) switches included.
- Break-before-make switching ensures minimal signal distortion.
- Guaranteed operation with +5V to +18V or +10V to +30V single supply voltage.
- No separate logic supply required for simplified integration.
- Compatible with CMOS and TTL logic families for broad applications.
- Monolithic, low power CMOS design for energy efficiency.
- Operating temperature range from 0°C to 70°C for standard industrial conditions.
Product Description
The Maxim Integrated MAX333CWP+ is a 4 CMOS Quad SPDT multiplexer packaged in a compact 20-pin SO-16 surface mount package.
Designed for semiconductor applications requiring low cost per channel switching, this multiplexer features four independent single-pole double-throw (SPDT) CMOS switches capable of break-before-make operation to prevent signal overlap during switching.
This IC guarantees reliable operation across a wide supply voltage range: +5V to +18V and single supply operation up to +30V without requiring a separate logic supply, making it ideal for versatile circuit designs compatible with CMOS and TTL logic families.
Its monolithic, low power CMOS construction minimizes energy consumption, suited for compact and portable instrumentation. The IC operates reliably between 0°C and 70°C ambient temperature, covering standard industrial environments.
Measuring 13mm in length, 7.6mm in width, and 2.35mm in height, the SO-16 package allows surface mounting on printed circuit boards facilitating automated assembly. Low cost per channel for efficient circuit design. Four independent single-pole double-throw (SPDT) switches included.
Break-before-make switching ensures minimal signal distortion. Guaranteed operation with +5V to +18V or +10V to +30V single supply voltage. No separate logic supply required for simplified integration. Compatible with CMOS and TTL logic families for broad applications.
Monolithic, low power CMOS design for energy efficiency. Operating temperature range from 0°C to 70°C for standard industrial conditions. Surface mount type with compact SO-16 package dimensions 13mm x 7.6mm x 2.35mm. Maximum on-state resistance of 175Ω ensuring quality signal conduction.
This multiplexer is extensively used in industrial electronics, test equipment, communications systems, Winchester disk drives, PBX and PABX switching hardware, and portable instruments.
Maxim Integrated products are trusted for their reliability and innovative semiconductor technology. Browse the Multiplexer & Demultiplexer ICs category at EnvMart to find this and related components for your electronic design and production needs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of +5V to +18V or up to +30V for single supply operation.
The SO-16 package measures 13mm in length, 7.6mm in width, and 2.35mm in height.
The maximum on-state resistance for the MAX333CWP+ is 175Ω, ensuring quality signal conduction.
It operates reliably within an ambient temperature range of 0°C to 70°C.
Yes, this multiplexer is compatible with both CMOS and TTL logic families, making it suitable for a broad range of applications.
It features break-before-make switching, which minimizes signal distortion during operation.
The MAX333CWP+ includes four independent single-pole double-throw (SPDT) switches.
This model is designed for surface mounting, facilitating automated assembly on printed circuit boards.
It complies with RoHS standards, ensuring it meets environmental regulations.
It is extensively used in industrial electronics, test equipment, communications systems, and portable instruments.
The MAX333CWP+ is manufactured in India.
