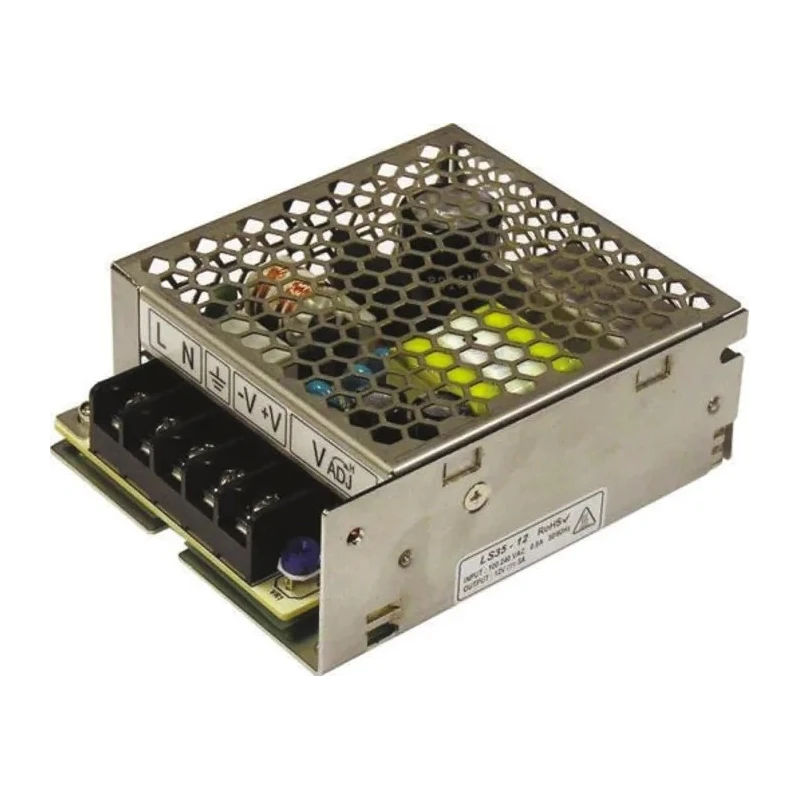

TDK-Lambda LS35-12 Switching Power Supply 12V DC, 35W, 3A Output, Chassis Mount LS35-12
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK-Lambda |
| Power | 35W |
| Efficiency | 82% |
| Length | 3.9in |
| Model | LS35-12 |
| Depth | 1.4in |
| Gross Weight | 270g |
| Width | 3.2in |
| Mount Type | Chassis |
| Series | LS35 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 3A |
| Minimum Input Voltage | 88V ac |
| Conducted and radiated EMI | EN55011/EN55022-B, FCC-B |
Key Features
- Universal AC input voltage range from 88 to 264 V AC for global compatibility.
- Output current capacity of 3 amperes with stable 12 V DC output.
- Operating temperature range from -25°C to 70°C with appropriate derating.
- Compact dimensions with 3.9 inches length, 3.2 inches width, and 1.4 inches depth.
- High efficiency of approximately 82% to reduce power loss and heat generation.
- Compliance with multiple global standards including IEC/UL/CSA/EN 62368-1 and CE markings.
- Robust surge tolerance withstanding 300V AC surges for at least 5 seconds.
- Conducted and radiated EMI protection complying with EN55011/EN55022-B and FCC Class B.
Product Description
TDK-Lambda LS35-12 switching power supply is a reliable industrial-grade solution designed for applications requiring 12V DC output at 35 watts power. Its universal input voltage range supports 88 to 264 V AC, enabling worldwide use without additional modifications. The chassis mount design ensures secure and easy installation in electronic assemblies and systems.
With an output current capacity of 3A, this power supply offers stable power delivery for control circuits, instrumentation, and embedded systems. It efficiently converts AC input to regulated DC output with around 82% efficiency, reducing energy waste and thermal concerns during continuous operation.
Engineered for rugged environments, it operates reliably in temperatures ranging from -25°C to 70°C with de-rating, allowing usage in harsh industrial and commercial conditions. The compact dimensions (3.9 inches length x 3.2 inches width x 1.4 inches depth) make it suitable for installations with limited space.
The LS35-12 model complies with multiple safety and electromagnetic compatibility standards including IEC/UL/CSA/EN 62368-1, CE, FCC Class B, and various EN and VCCI certifications ensuring safe and interference-free operation. Its robust design withstands transient surges of up to 300 V AC for a minimum of 5 seconds to protect sensitive connected equipment.
This switching power supply finds use cases across industrial automation, laboratory equipment, telecommunications, and other electrical devices requiring reliable 12V DC power. It provides a single output with chassis mounting for straightforward integration into power systems.
Universal AC input 88-264 V suitable for global power sources. Rated output of 12 V DC at 3 A current and 35 W power. Compact and durable chassis mount form factor. High efficiency reduces heat and power consumption. Wide operating temperature range with proper derating.
Complies with IEC, UL, CSA, EN, FCC, and VCCI standards. Surge protection withstands 300 V AC transient surges for 5 seconds. EMI compliance to minimize electromagnetic interference. Single output simplifies power supply design.
