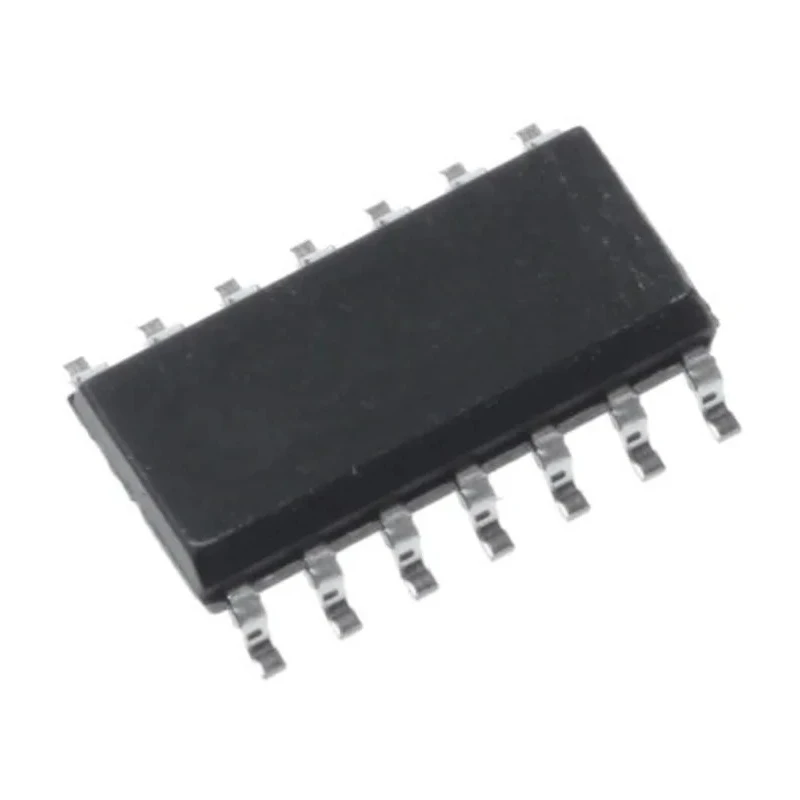

Maxim Integrated Line Transceiver BiCMOS Inverting 14-Pin SOIC MAX3070EASD+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | MAX3070EASD+ |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | BiCMOS |
| Series | MAX3070E |
| Input Type | Differential |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 14 |
| Maximum Supply Voltage | 6V |
| Logic Family | CMOS/TTL |
| Logic Function | Driver, Line Driver, Converter |
| Minimum Supply Voltage | -0.3V |
| Maximum High Level Output Current | 250mA |
| Maximum Propagation Delay Time @ CL | 1.5ms |
| Supply Current | 1.5mA |
| Maximum Low Level Output Current | 40mA |
Key Features
- Operates with CMOS/TTL logic family ensuring compatibility with standard systems.
- Features differential input and BiCMOS output with inverting polarity for precise line transmission.
- Supports surface mount with 14-pin SOIC package for compact and reliable installation.
- Wide operating temperature range from -40°C to 125°C suits harsh environments.
- Maximum supply voltage of 6V and supply current of 1.5mA enable efficient power management.
- Provides ±15kV Human Body Model ESD protection on I/O pins for enhanced durability.
- Hot-swap input structure and slew-rate limiting facilitate error-free data transmission.
- Suitable for industrial control, instrumentation, lighting, security, and telecom systems.
Product Description
Maxim Integrated MAX3070EASD+ is a high-performance line transceiver IC featuring BiCMOS technology with inverting logic delivered in a 14-pin SOIC surface mount package.
Designed to operate over a wide temperature range from -40°C to 125°C, it is engineered for industrial and telecom applications demanding reliable data transmission and robust signal integrity.
Its CMOS/TTL logic family compatibility and differential input structure support seamless integration into diverse systems. The device provides a maximum supply voltage of 6V with a low supply current of 1.5mA, promoting power efficiency.
Unique protection features include ±15kV Human Body Model (HBM) ESD protection on input/output pins, enhancing device durability in electrically noisy environments. Additionally, the hot-swap input architecture and enhanced slew-rate limiting ensure error-free data transmission in demanding line conditions.
The MAX3070EASD+ supports pin-selectable full or half-duplex operation and phase controls to mitigate twisted-pair reversal, allowing flexible communication setups and reducing installation errors.
This line transceiver IC is ideal for industrial control systems, instrumentation, lighting controls, security systems, and telecommunications, where robust, high-speed, and noise-immune transceiver performance is critical.
CMOS/TTL logic compatibility for standard digital communication. BiCMOS output and differential input designs for signal integrity. Wide temperature range for industrial-grade reliability. High ESD protection up to ±15kV HBM on I/O pins.
Low supply current of 1.5mA for power-efficient operation. 14-pin SOIC surface mount packaging for easy PCB integration. Explore more semiconductor interface ICs and line transceivers at EnvMart to find the perfect component for your electronics and electrical engineering requirements.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with CMOS/TTL logic families, ensuring seamless integration with standard systems.
The maximum supply voltage for this line transceiver is 6V, which supports efficient power management.
The supply current for this model is 1.5mA, promoting power-efficient operation.
This unit has dimensions of 8.75mm in length, 6.2mm in width, and a height of 1.75mm.
It comes in a 14-pin SOIC surface mount package, facilitating compact and reliable installation.
This model provides ±15kV Human Body Model ESD protection on its I/O pins, enhancing its durability in electrically noisy environments.
The input type for this line transceiver is differential, which supports robust signal integrity.
The output polarity of this model is inverting, designed for precise line transmission.
This line transceiver is suitable for industrial control, instrumentation, lighting, security, and telecom systems.
The maximum propagation delay time for this model is 1.5ms, ensuring efficient data transmission.
Yes, it supports pin-selectable full or half-duplex operation, providing flexibility for communication setups.
