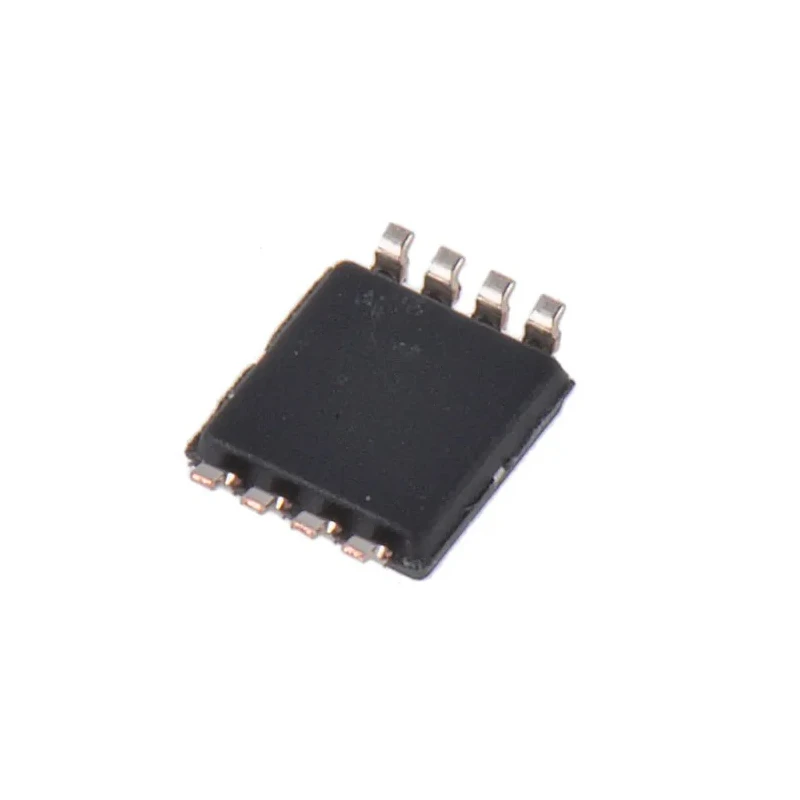

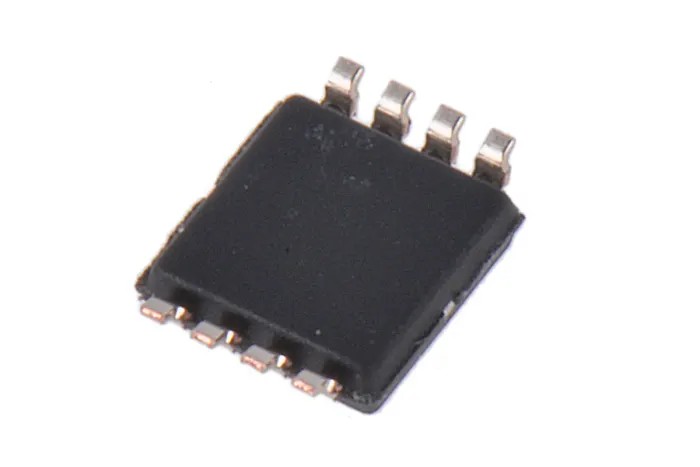

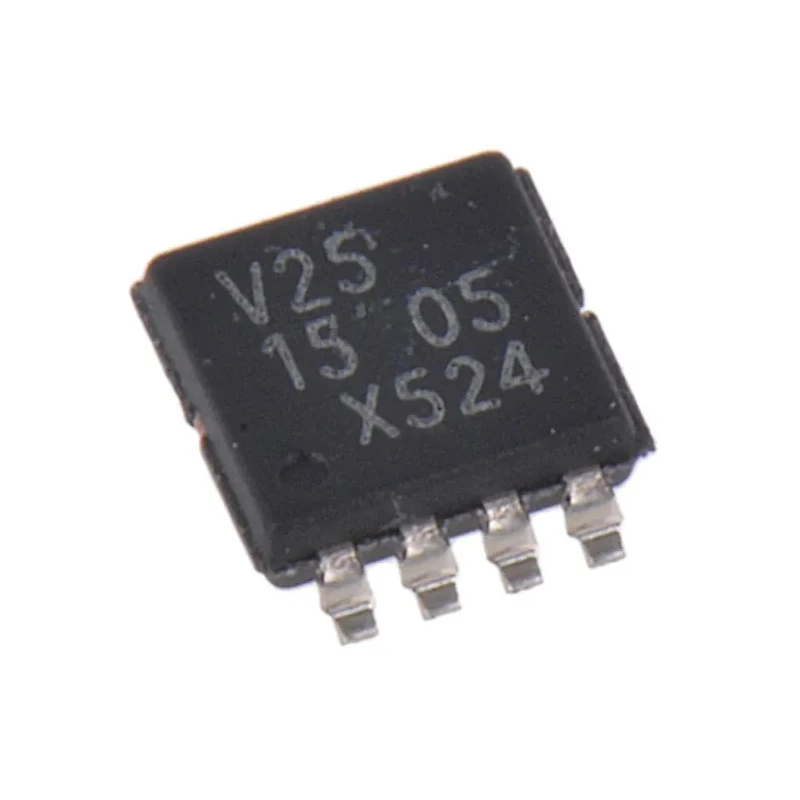

Nexperia 2-Channel Non-Inverting 3 State Buffer 8-Pin TSSOP 74LVC2G125DP,125

Nexperia 74LVC2G125DP,125 2-Channel Non-Inverting 3 State Buffer is a low-voltage CMOS logic buffer built in an 8-pin TSSOP package. It operates within a supply voltage range of 1.65 to 5.5 volts and provides non-inverting buffer functionality with three-state outputs, making it suitable for complex digital logic applications.

Featuring two independent channels with single-ended inputs, this buffer IC delivers fast signal propagation with a maximum delay of 11.4 nanoseconds. The device supports compatibility with LVTTL and TTL input levels and outputs LVCMOS signals, ensuring integration with a variety of logic families in industrial and commercial electronics.

The package height is approximately 950 micrometers with a length of 3.1 millimeters, optimizing PCB space. Designed for surface-mount technology, the buffer IC is intended for modern compact electronic circuit layouts. It withstands a maximum operating temperature of 125°C, allowing usage in harsh environments.

Key electrical parameters include a low supply current of 4 microamperes and output currents of ±32 milliamperes at high and low logic levels, providing sufficient drive capability for downstream components. This semiconductor buffer does not include Schmitt trigger inputs, which simplifies its signal characteristics.

Applications span industrial automation, electronic instrumentation, and embedded systems requiring reliable buffering of logic signals. The device complies with no specific standards or automotive certifications.

Operates on 1.65 to 5.5 V power supply. Two channels with non-inverting three-state outputs. 8-pin Thin Shrink Small Outline Package (TSSOP). Maximum propagation delay of 11.4 nanoseconds at loaded conditions. Surface mount mount type suitable for compact PCB designs.

Compatible with LVTTL/TTL input and LVCMOS output levels. Temperature range from -40°C to 125°C. Supply current approximately 4 microamperes for energy efficiency. Output current capability of ±32 milliamperes for driving logic loads.

This buffer IC is an essential component in semiconductor logic integration, offering stable performance in electronic components and power connector systems. It is well-suited for design engineers working in semiconductor manufacturing, electronic design automation, and PCB assembly industries. Explore more products within the Buffers category on EnvMart for comprehensive electronic solutions.
