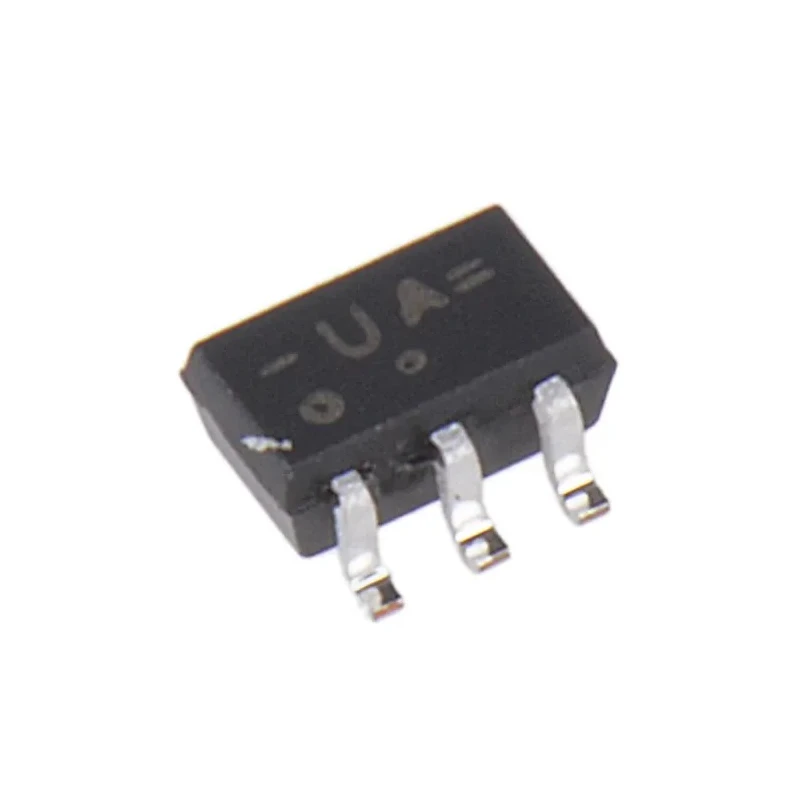

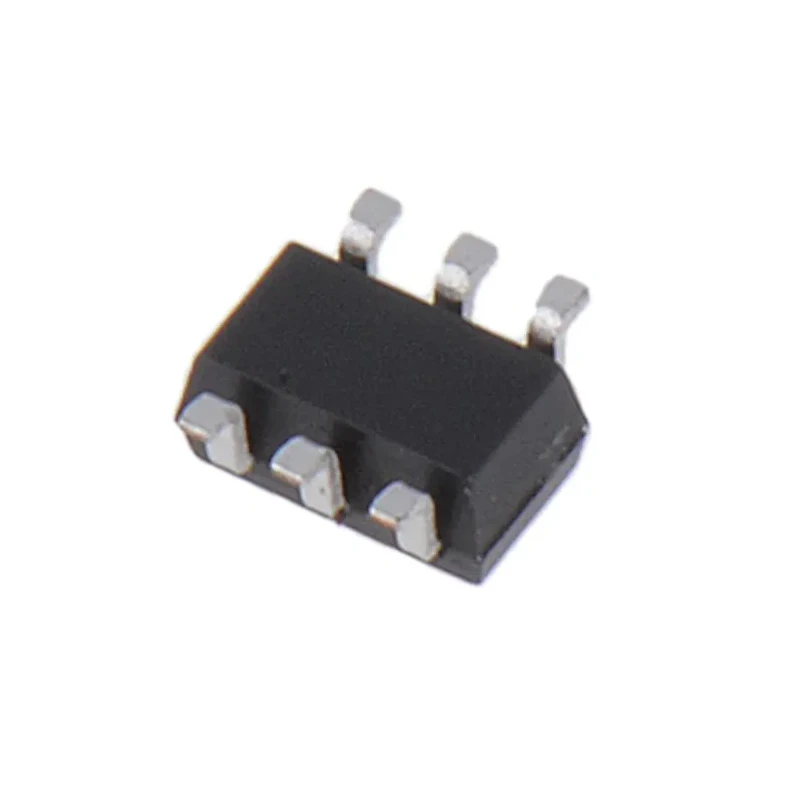

Nexperia 2-Channel Non-Inverting Single Ended Buffer, SC-88 Package, 6-Pin, 4.5–5.5V Supply 74HCT2G34GW,125

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 2-Channel Non-Inverting Single Ended Buffer, SC-88 Package, 6-Pin, 4.5 - 5.5V Supply 74HCT2G34GW,125

Name: Nexperia 2-Channel Non-Inverting Single Ended Buffer, SC-88 Package, 6-Pin, 4.5 - 5.5V Supply 74HCT2G34GW,125
Brand: Nexperia
SKU: 417858
Price: 0.18 USD
Availability: InStock



Category Buffers Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1mm
Length	2.2mm
Model	74HCT2G34GW,125
Mount Type	Surface
Compatibility	Input TTL, Output CMOS
Output type	Single Ended
Input Type	Single Ended
Maximum Operating Temperature	125°C
Package Type	SC-88
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	2
Pin Count	6
Maximum Supply Voltage	5.5V
Logic Family	HCT
Logic Function	Buffer
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	125ns
Supply Current	50mA
Maximum Low Level Output Current	5.2mA

Key Features

Operates on a supply voltage range of 4.5 to 5.5 V.
Compatible with TTL inputs and CMOS outputs for flexible interfacing.
Surface-mounted SC-88 package with 6 pins for compact board design.
Maximum propagation delay time of 125 ns ensuring fast signal processing.
Supports a temperature range from -40°C to 125°C for reliable operation.
Provides a supply current of 50 mA for efficient power management.
Non-inverting polarity with single-ended input and output for signal buffering.
Maximum high and low level output currents of -5.2 mA and 5.2 mA respectively.

Product Description

Nexperia 74HCT2G34GW,125 is a 2-Channel Non-Inverting Single-Ended Buffer IC housed in a 6-pin SC-88 surface-mount package, operating at a voltage range between 4.5 V and 5.5 V. This high-speed CMOS logic buffer is ideal for a variety of electronic applications requiring signal amplification and buffering with TTL input compatibility and CMOS output.

The device features a maximum propagation delay time of 125 ns ensuring high-speed signal transmission. It supports an operating temperature range from -40°C to 125°C, making it suitable for use in industrial, automotive, and commercial electronic environments that demand robust performance. With a supply current of 50 mA, it provides efficient power utilization.

This non-inverting buffer has single-ended input and output types, delivering signal integrity without inversion. It delivers maximum output currents of -5.2 mA (high level) and 5.2 mA (low level), suitable for driving moderate loads. The compact SC-88 package further aids in space-constrained PCB designs.

Operates on a supply voltage of 4.5 to 5.5 V ensuring compatibility with 5 V logic systems. TTL input and CMOS output compatibility optimizes system interface. Compact 6-pin SC-88 surface-mount package for efficient PCB layout.

Maximum propagation delay time of 125 nanoseconds for fast signal throughput. Wide temperature range (-40°C to 125°C) supports harsh environments. Supply current of 50 mA offers low power consumption. Non-inverting single-ended buffer suitable for a variety of logic applications.

No Schmitt trigger input, designed for standard buffering functions.

This buffer is applicable in industrial automation, consumer electronics, instrumentation, and embedded systems. It ensures signal buffering with minimal distortion and power consumption in logic circuits.
