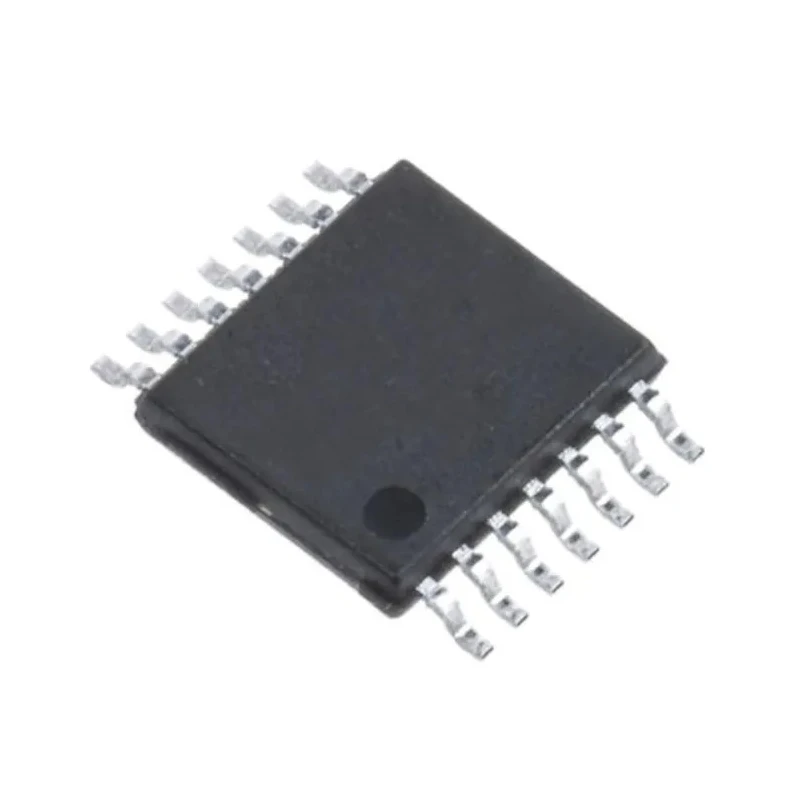

onsemi 4 2-Input NAND Logic Gate, 14-Pin TSSOP MC74VHC00DTG

onsemi MC74VHC00DTG is an advanced high speed CMOS 2-input NAND logic gate designed for efficient digital logic applications. Packaged in a 14-pin TSSOP, it contains four independent NAND gates optimized for low power dissipation and high speed operation. The device operates within a wide voltage range of 2V to 5.5V, making it adaptable for various electronic circuit conditions.

The innovative silicon gate CMOS technology enables the MC74VHC00DTG to provide performance comparable to Bipolar Schottky TTL devices while consuming significantly less power. The internal three-stage circuit, including a buffer output stage, ensures high noise immunity and stable, robust output signals essential for industrial and commercial electronic systems.

This logic gate supports input voltage tolerance up to 7V, allowing seamless interface between 5V and 3V logic systems. Its maximum propagation delay of 9.5ns at capacitive load ensures rapid response times critical in high-speed computing and control systems. The chip maintains excellent performance across a broad temperature range from -55°C to 125°C, suitable for harsh industrial environments.

MC74VHC00DTG features balanced propagation delays and built-in power down protection on inputs, enhancing system reliability during power fluctuations. This device is compatible with other standard logic families due to pin and function compatibility. With high noise immunity and low noise voltage levels, it ensures accurate logic processing in complex industrial, laboratory, and manufacturing electronics applications.

The chip complexity of 32 FETs or 8 equivalent gates supports compact digital circuit designs, ideal for embedded systems, automation controls, and semiconductor device applications. The robust ESD performance rated at HBM > 2000V and Machine Model > 200V further safeguards device longevity and reliability.

Due to its compact TSSOP packaging and wide operational conditions, the MC74VHC00DTG is an optimal choice for engineers designing circuits requiring 2-input NAND logic functions with low power consumption and high operational speed in industrial and commercial electronic devices.

Explore more Logic Gate solutions from onsemi and other leading semiconductor manufacturers at EnvMart for your industrial, laboratory, automation, and manufacturing requirements. This device contains four 2-input NAND gates in a 14-Pin TSSOP package.

Wide supply voltage range from 2V to 5.5V ensures compatibility with multiple logic levels. Maximum propagation delay time is 9.5ns at capacitive load for high-speed operation. Operating temperature range of -55°C to 125°C supports use in varied environmental conditions.

High noise immunity and low noise output provide reliable digital signal processing.
