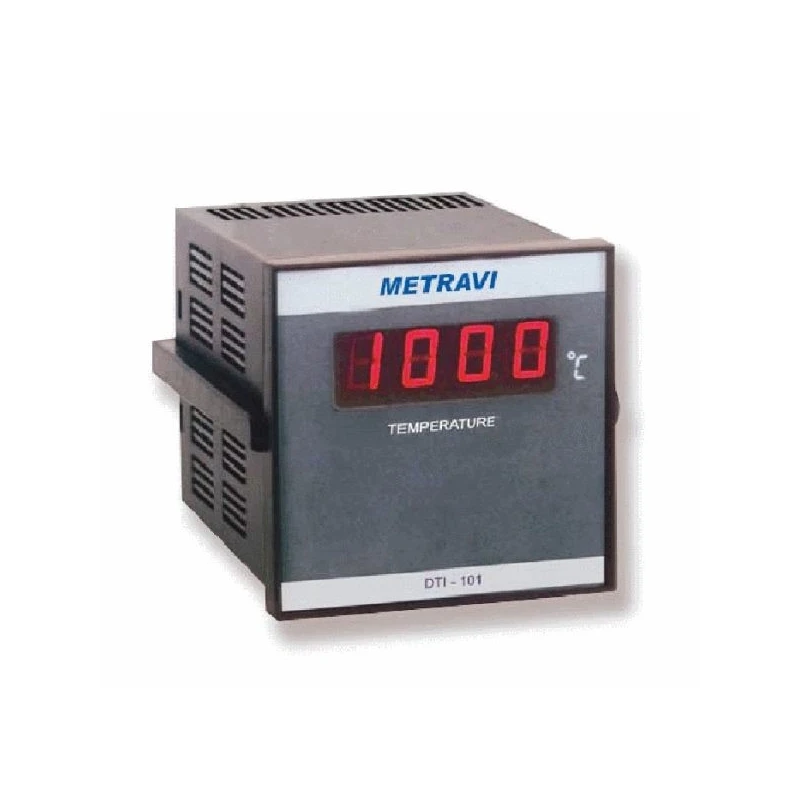

Metravi Single Channel Temperature Indicator DTI-101
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi DTI-101 Single Channel Temperature Indicator |
| Accuracy | J |
| Display | 3½-digit 7-segment red LED (0.5" height) |
| Brand | Metravi |
| Operating Temperature | 0–50 °C (RH Less than 80%) |
| Model | DTI-101 |
| Supply | 230 V AC ± 10% |
| Sensor Input | J |
| Cold Junction Compensation | Automatic for thermocouples |
| Sensor Open Indication | '1' displayed at MSD |
| No. of Input Sensors | 6–12 points for DTI-101 M (selectable via rotary switch)- 1 input for other models |
| Dimensions(H×W×D) | 96×96×120 mm / 72×72×110 mm / 48×96×120 mm |
| Panel Cutout(H×W) | 92×92 mm / 68×68 mm / 46×92 mm |
Key Features
- 3½ Digit 7 Segment Red colour LED 0.5" ht
- Automatic for T/C
- J. K. R.S. T/C. PT-100 RTD, mV, V & 4-20 mA I/P
- J, K, 1%, R, S 0.5%, PT-100 RTD 0.2%, mV, V, mA 0.1%
- By '1' at MSD
- 0-50°C (RH < 80%)
- 6-12 Point for DTI - 101 M select by Rotary Switch for all other modules one
- 230V AC ± 10% 50 Hz
- 96 * 96 * 120mm * 72 * 72 * 110m 48 * 96 * 120mm
- 92 * 92mm * 68 * 68mm 46 * 92mm
Product Description
Metravi DTI-101 Single Channel Temperature Indicator ensures precise temperature monitoring in industrial systems. Designed for use with RTD and thermocouple sensors, it provides accurate, real-time readings on a clear digital display. Compact and panel-mounted, it’s ideal for continuous temperature tracking in manufacturing, HVAC, and laboratory environments. With adjustable calibration and alarm settings, the DTI-101 offers long-term reliability and consistency in critical process measurement applications.
Available on EnvMart, these Temperature Indicators are ideal for monitoring and displaying temperature readings accurately. Metravi Temperature Indicators provide precision and reliability, making them perfect for industrial, laboratory, and process control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of the DTI-101 is 0–50 °C with a relative humidity of less than 80%.
The DTI-101 has an accuracy of J for thermocouple inputs, with specific accuracy ratings of 1% for J, K, 0.5% for R, S, and 0.2% for PT-100 RTD. For mV, V, and 4-20 mA inputs, the accuracy is 0.1%.
It features a 3½-digit 7-segment red LED display with a height of 0.5 inches.
This model requires a power supply of 230 V AC ± 10%.
The DTI-101 can accommodate 6–12 input sensors, selectable via a rotary switch for the DTI-101 M model, while other models support 1 input.
The dimensions of the DTI-101 are 96×96×120 mm, 72×72×110 mm, and 48×96×120 mm.
Yes, it provides automatic cold junction compensation for thermocouple inputs.
The panel cutout dimensions for the DTI-101 are 92×92 mm, 68×68 mm, and 46×92 mm.
This model is compatible with thermocouples (types J, K, R, S) and PT-100 RTD sensors.
The DTI-101 includes adjustable calibration and alarm settings for effective temperature monitoring in various applications.
The DTI-101 is manufactured in India.
The DTI-101 is suitable for continuous temperature tracking in manufacturing, HVAC, and laboratory environments.
