RS PRO Panel Mount Temperature Indicator 1 Input 230V ac/dc 7 Segment LED Display 77x35x61mm 124-1076

RS PRO 124-1076 Panel Mount Temperature Indicator 1 Input is a reliable industrial temperature measurement device featuring a 7 Segment LED display and NTC sensor input. It supports an operating voltage up to 230V ac/dc, making it suitable for a range of industrial and commercial applications including automation and process control.

This digital temperature indicator measures temperatures within a maximum operating limit of 50°C and a minimum of 0°C, while supporting sensors capable of detecting from -60°C to 150°C. The compact panel mount design allows for easy installation with dimensions of 77mm length, 35mm width, and 61mm panel depth.

Equipped with screw terminals for secure wiring, this device displays temperature units in Celsius or Fahrenheit and allows sensor offset calibration. It features alarms and warnings for temperature thresholds and retains max/min recorded values to facilitate quality control and process monitoring.

The product meets rigorous European standards including EN 60751, EN 61010-1:2010, EN 60529, EN 61000-4-3, and EN 61326-1:2012, and is CE marked for safety and electromagnetic compatibility. Its IP20 and IP65 ingress protection ratings ensure suitability for various industrial environments.

Features a single NTC probe input for accurate temperature detection. Operates within a temperature range from 0°C to 50°C maximum, supporting sensor ranges from -60°C to 150°C. Compact panel mount size of 77mm length, 35mm width, and 61mm depth.

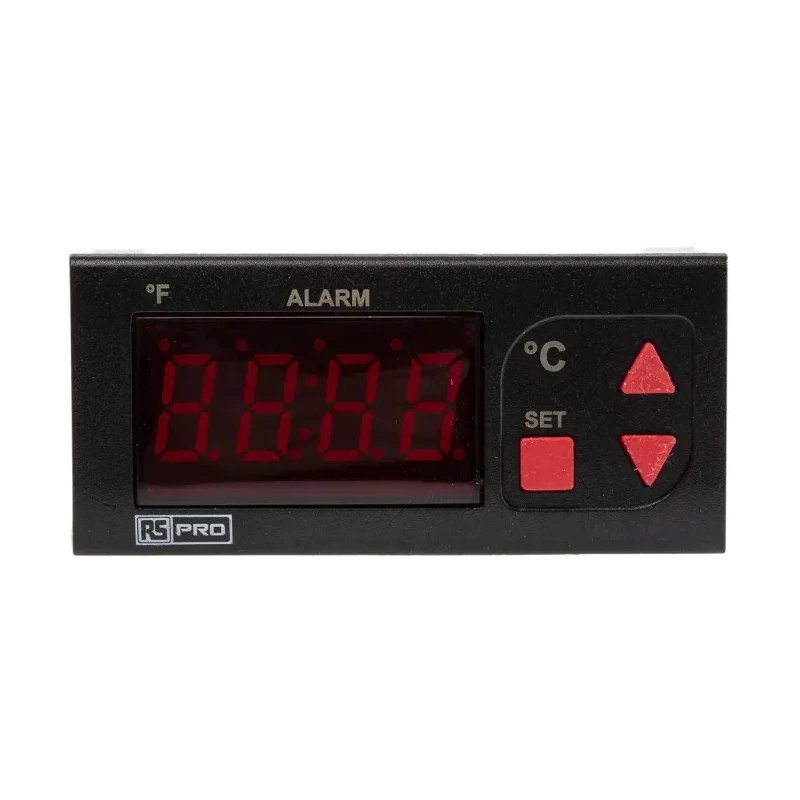

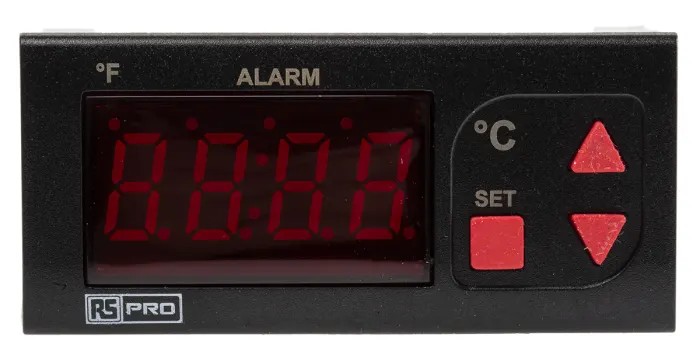

Equipped with a 7 Segment LED display for clear temperature readout. Designed with screw terminal type for secure electrical connections. Supports temperature unit display in °C or °F with sensor offset adjustment. Includes alarm and warning display functionality for high and low limits.

Stores maximum and minimum measured temperature values for monitoring. Compliant with EN 60751, EN 61010-1, EN 60529, EN 61000-4-3, EN 61326-1 standards and CE certified. IP20 and IP65 rating available for protection against dust and water ingress.

This Temperature Indicator is ideal for industrial automation, process control, manufacturing plants, HVAC systems, laboratory instrumentation, and other commercial applications requiring precise temperature monitoring. Its panel mount configuration simplifies integration into control panels and equipment enclosures.
