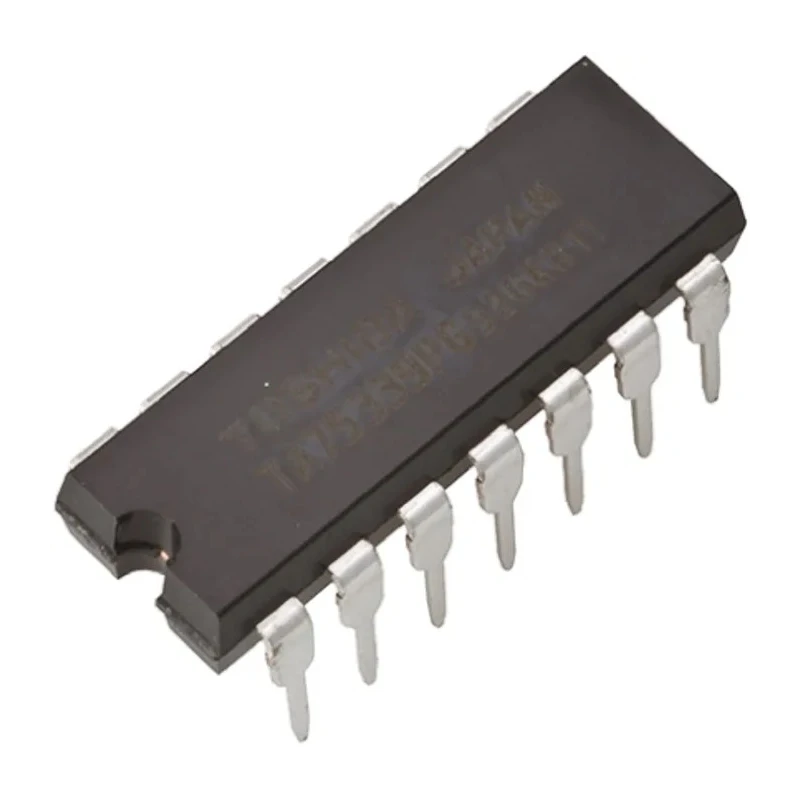

Toshiba 4 2-Input OR Logic Gate, 14-Pin PDIP TC4071BP(N,F)

Toshiba TC4071BP(N,F) is a 14-pin PDIP packaged 4-element 2-input OR logic gate IC designed for through-hole mounting.

This logic gate IC utilizes CMOS technology and is compatible with the TC4000 logic family, providing buffered outputs to drive subsequent stages while maintaining signal integrity.

Operating supply voltages range from 3V to 18V, making it versatile for various electronic circuit designs. It supports a maximum propagation delay time of 80 nanoseconds at specified load capacitance, suitable for timing-critical logic circuits.

The device performs reliably over a wide temperature range from -40°C to 85°C, supporting industrial-grade applications. Its pin count of 14 conforms to the PDIP standard package, facilitating easy integration onto through-hole PCBs.

The logic function OR is implemented using four independent gates each with two inputs and buffered output stages. It does not feature Schmitt trigger input functionality, which is optimal for standard logical operations without input signal conditioning.

With maximum output currents of ±4mA, it can drive other CMOS or TTL inputs directly, making it suitable for semiconductors, logic ICs, and electronic component assemblies.

Manufactured in Japan, this IC embodies Toshiba's high quality standards. It is applicable broadly in semiconductor, industrial automation, electronic design, and manufacturing sectors for logic control and signal integration tasks.

Offers 4 independent 2-input OR gates in a single IC. Supplies buffered CMOS output compatible with 4000 logic family. Operates within a supply voltage range of 3V to 18V. Features a maximum propagation delay time of 80ns at CL.

Functions over an operating temperature range from -40°C to 85°C. Has a pin count of 14 in the standard PDIP package format. Input type utilizes CMOS technology with no Schmitt trigger inputs. Designed and manufactured in Japan ensuring high quality and reliability.

Maximum output currents are ±4mA suitable for typical logic level driving. Ideal for electronic component, semiconductor, and logic IC applications. Explore our Toshiba semiconductor catalog and find more Logic Gate ICs for your electronics and industrial automation projects at EnvMart.
