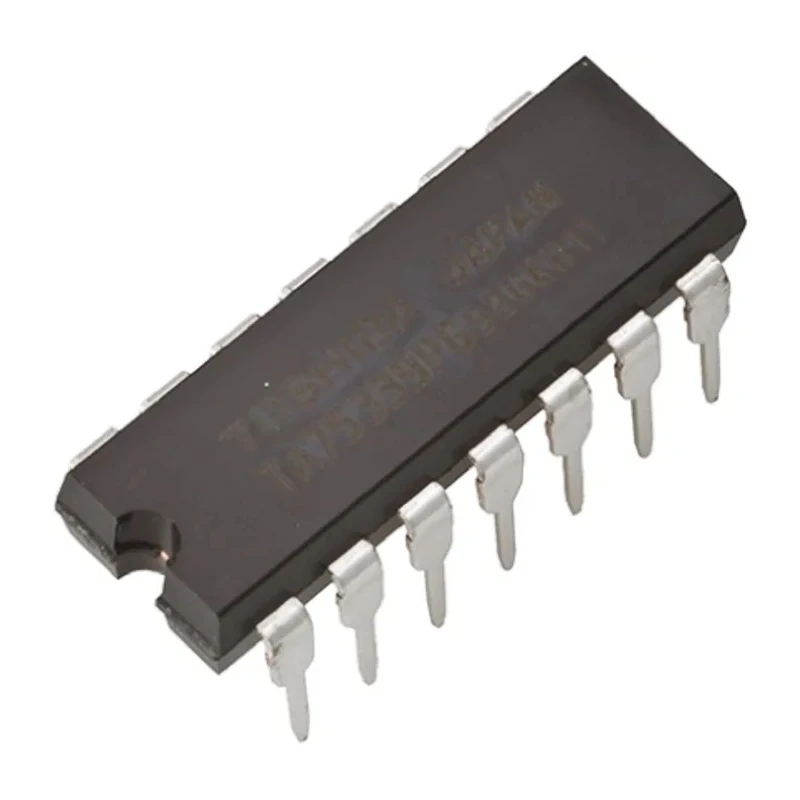

Toshiba 4 2-Input NOR Logic Gate 14-Pin PDIP TC4001BP(N,F)
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Height | 3.5mm |
| Length | 19.25mm |
| Model | TC4001BP(N,F) |
| Mount Type | Through Hole |
| Output type | Buffer |
| Input Type | CMOS |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Logic Function | NOR |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 80ns |
| Maximum Low Level Output Current | 4mA |
| Number of Inputs per Gate | 2 |
| NXP HEF4001BP,652, Quad 2-Input NOR Logic Gate, 14-Pin PDIPBrand | NXP |
Key Features
- Operates within a supply voltage range of 3V to 18V.
- Features a maximum propagation delay time of 80 nanoseconds.
- Supports a maximum operating temperature up to 85°C and minimum down to -40°C.
- Includes 4 logic gates each with 2 inputs, capable of through-hole mounting.
- Has a pin count of 14 in a PDIP package suitable for traditional PCB design.
- Outputs buffered signals with maximum high and low-level output current ratings of -4mA and 4mA respectively.
- Compliant with TC4000 logic family standards typical in CMOS circuits.
- Manufactured in Japan ensuring high quality and reliability.
Product Description
Toshiba TC4001BP(N,F) is a 4-element, 2-input NOR logic gate designed using CMOS technology and provided in a 14-pin PDIP through-hole package.
This device operates efficiently across a voltage supply range from 3V to 18V and delivers a maximum propagation delay of 80ns under standard load conditions, making it suitable for various digital logic applications.
Capable of functioning reliably within an ambient temperature range from -40°C to 85°C, this logic IC is ideal for robust industrial, laboratory, and embedded system electronics.
The product features buffered outputs with a maximum high-level output current of -4mA and maximum low-level output current of 4mA, ensuring stable signal integrity and interfacing with other components.
The 14-pin PDIP package allows for convenient through-hole mounting on printed circuit boards, supporting prototyping and production environments.
Manufactured in Japan, this TC4001BP(N,F) model belongs to the TC4000 logic family, widely recognized for its reliability in CMOS logic circuits across semiconductor and industrial electronics sectors.
Operates from 3V to 18V supply voltage. Maximum propagation delay time of 80ns. Operating temperature range: -40°C to 85°C. Four elements, each with two CMOS inputs. 14-pin PDIP through-hole package for easy PCB integration.
Buffered output type with specified current ratings. Manufactured in Japan ensuring premium quality. This Logic Gate IC is applicable in digital circuit design, embedded control systems, industrial automation, and educational electronics projects.
Explore more semiconductor products and logic ICs from Toshiba on EnvMart to complement your design and manufacturing needs.
