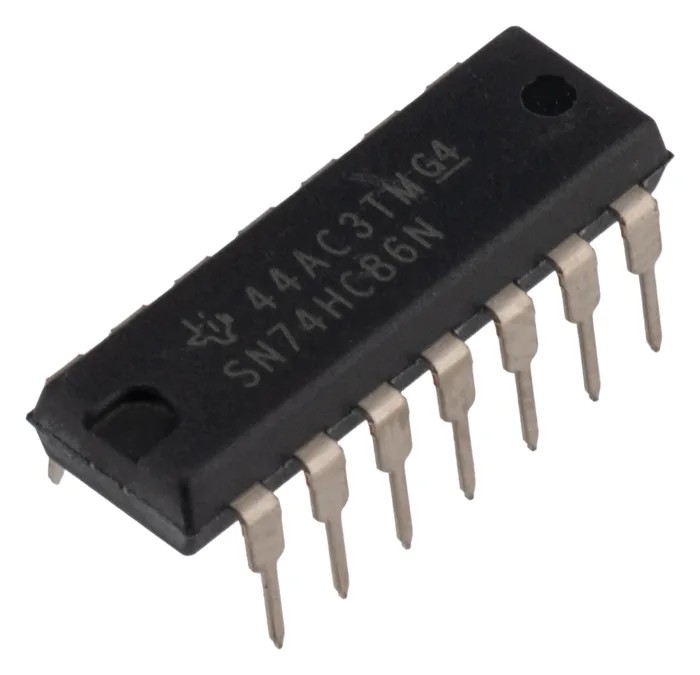

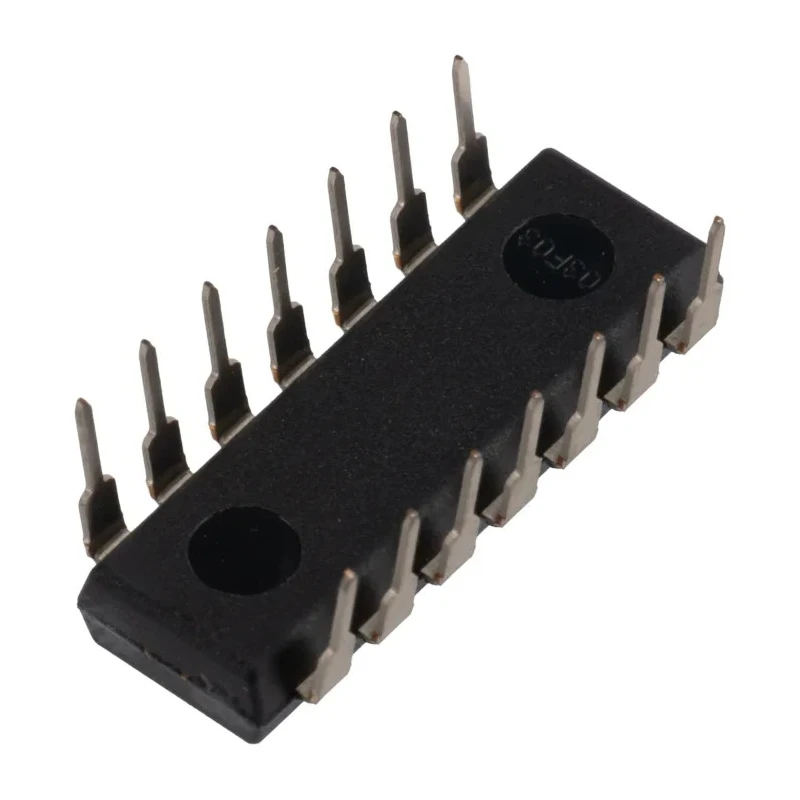

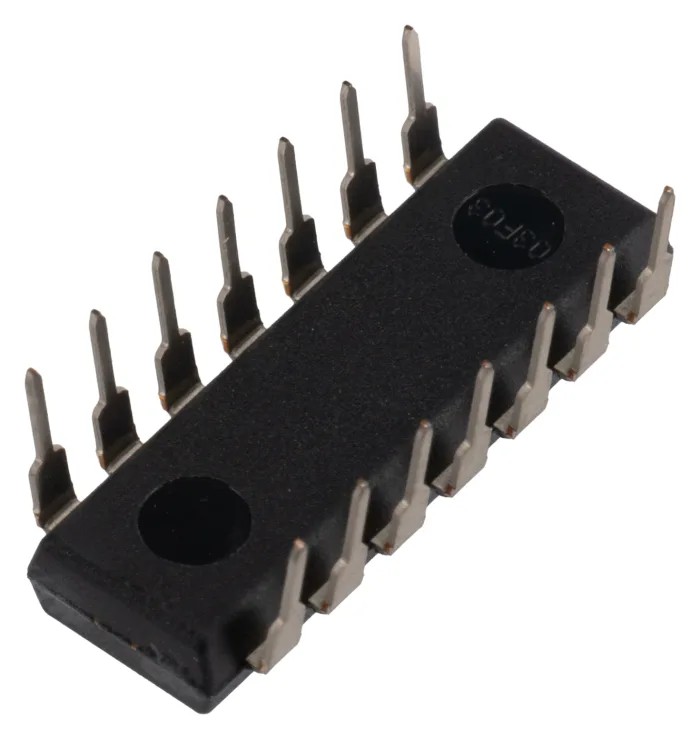

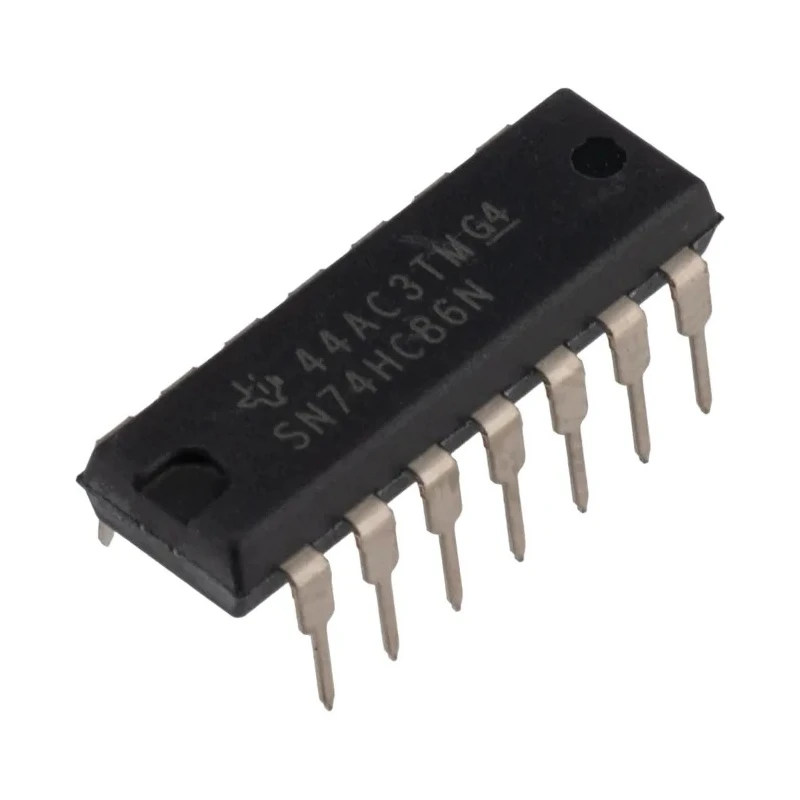

Texas Instruments 4 2-Input XOR Logic Gate 14-Pin PDIP SN74HC86N

Texas Instruments SN74HC86N is a 4 2-input XOR logic gate integrated circuit housed in a 14-pin PDIP package, designed for through-hole mount applications. This logic gate device uses CMOS technology for efficient low power operation, making it suitable for various industrial and electronic equipment requiring logic functions.

The device incorporates four independent 2-input XOR gates, which are fundamental building blocks in digital circuit design. The SN74HC86N operates within a supply voltage range of 2V to 6V and can function reliably between -40°C and 85°C ambient temperatures, making it ideal for both commercial and industrial-grade applications.

Key electrical characteristics include a maximum propagation delay time of 25ns at a specified load, providing fast switching performance. It features push-pull outputs to deliver robust drive capabilities for driving downstream logic or loads. The logic family designation HC ensures compatibility with other 74 series high-speed CMOS logic ICs used in digital design.

This IC comes in a 14-pin PDIP (Plastic Dual Inline Package) format, convenient for insertion into standard through-hole PCB layouts, enhancing prototype development and manufacturing efficiency.

4 independent 2-input XOR gates for complex logic operations. CMOS input type to minimize static power consumption. Operating voltage from 2V to 6V for flexible power supply options. Wide operating temperature range of -40°C to 85°C for harsh environments.

Maximum propagation delay of 25ns, supporting high-speed digital circuits. Push-pull output configuration for enhanced load driving capability. 14-pin PDIP package supporting through-hole PCB mounting. HC logic family compatibility for standard integration in logic circuits.

Industrial, electronics, and embedded system applications coverage.

This Texas Instruments SN74HC86N logic gate IC is ideal for use in industrial automation, embedded systems, digital circuit design, and semiconductor applications requiring efficient and reliable XOR logic functionality. Explore more electronics components in the semiconductor and Logic Gate categories on EnvMart for comprehensive solutions.
