PR Electronics 5700 Programmable LED Multi-Function Panel Meter Temperature Voltage Current Resistance Potentiometer 5715B

PR Electronics 5715B is a programmable LED Multi-Function Panel Meter designed for precise process control measurements including temperature, voltage, current, resistance, and potentiometer signals.

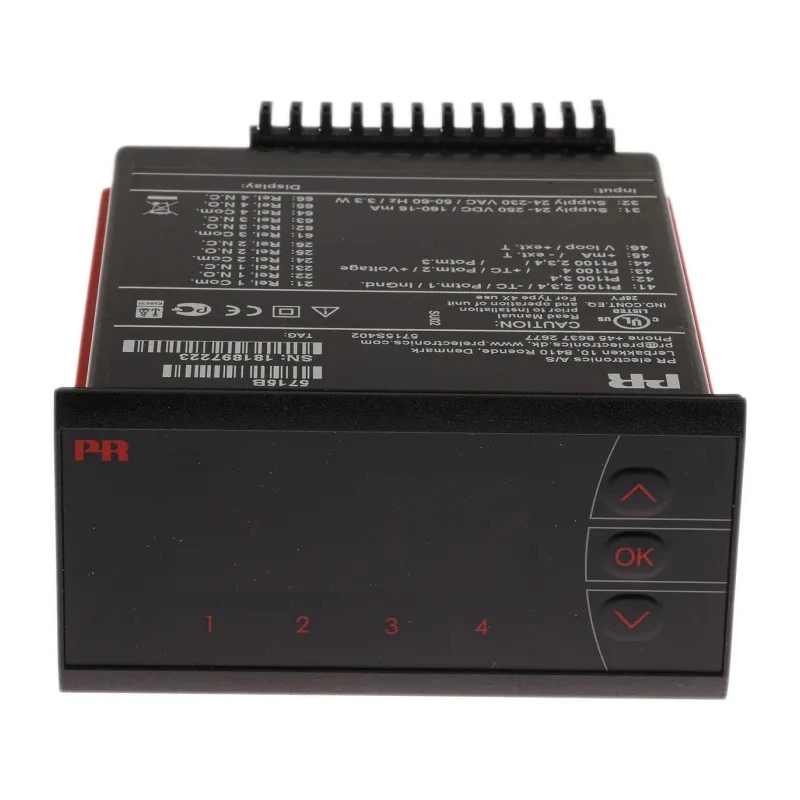

The device features a user-friendly 4-digit, 14-segment LED display with 13.8mm digit height, ensuring excellent visibility in industrial settings. It offers multiple configuration options through PC software, DIP switches, or front push buttons, allowing fast and flexible deployment.

Designed for robust performance, this panel meter operates reliably between temperatures of -20°C and 60°C and fits standard panel cutouts measuring 91.5mm wide and 44.5mm high with a depth of 120mm. The included rubber packing secures IP65 protection against dust and splash, with optional splash-proof covers for harsh environments.

Certified to meet international standards EN 61010-1, EN 61326-1, GOST R, and UL 508, it guarantees safety and electromagnetic compatibility for industrial use. The maximum measurable voltage is 12 V, ideal for low-voltage signal measurements.

This panel meter is suitable for diverse industrial, laboratory, HVAC, and manufacturing applications requiring reliable monitoring of multiple electrical and temperature parameters. Its integrated multilingual help texts facilitate intuitive operation across global markets.

The panel meter features a 4-digit, 14-segment LED display with a digit height of 13.8mm for clear readability. It supports universal input signals and offers programmability via PC, DIP switches, or front push buttons. The device can operate in a temperature range from -20°C to 60°C, ensuring reliability under varied conditions.

The compact dimensions include a cutout width of 91.5mm, cutout height of 44.5mm, and depth of 120mm for panel mounting. This meter complies with EN 61010-1, EN 61326-1, GOST R, and UL 508 standards for safety and electromagnetic compatibility.

The device is engineered for demanding industrial applications and offers user-friendly configuration with multilingual help support. Maximum measurement capacity is rated at 12 V, suitable for low-voltage process monitoring.

It includes a robust IP65 protection when properly mounted with rubber packing, protecting against dust and splash water. Optional splash-proof covers are available for extra environmental protection in harsh conditions.

Manufactured in Denmark, the panel meter is classified as new and designed for versatile multi-signal process control monitoring. Explore the PR Electronics 5700 series for comprehensive programmable LED indicators to meet your diverse industrial measurement needs on EnvMart.
