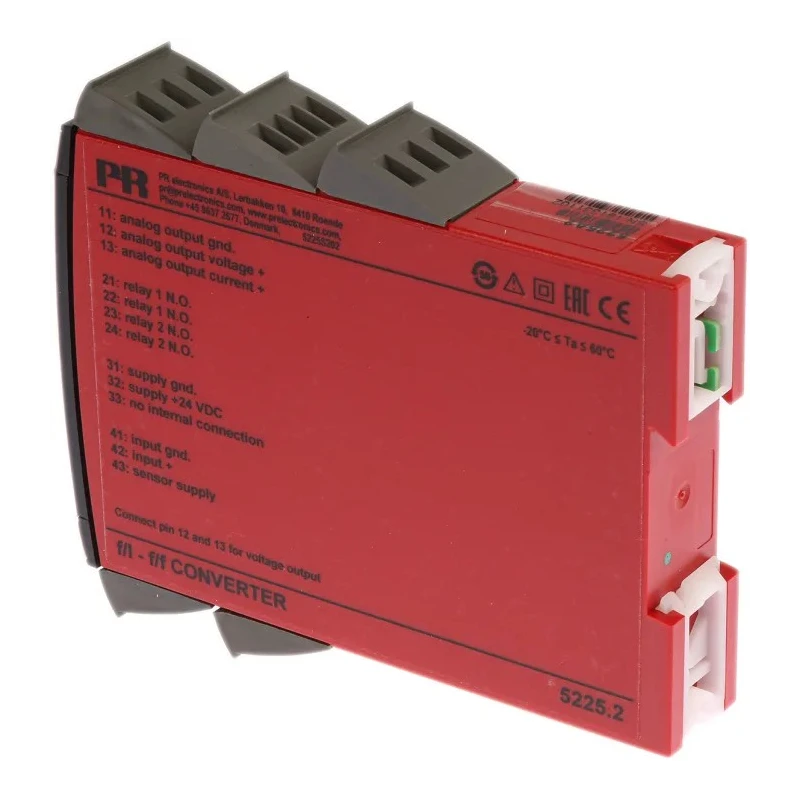

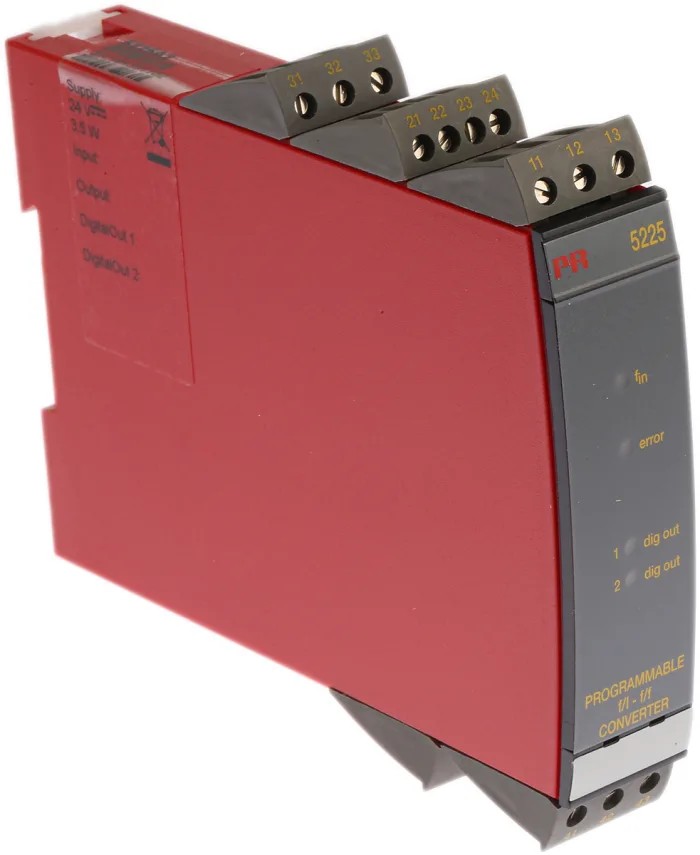

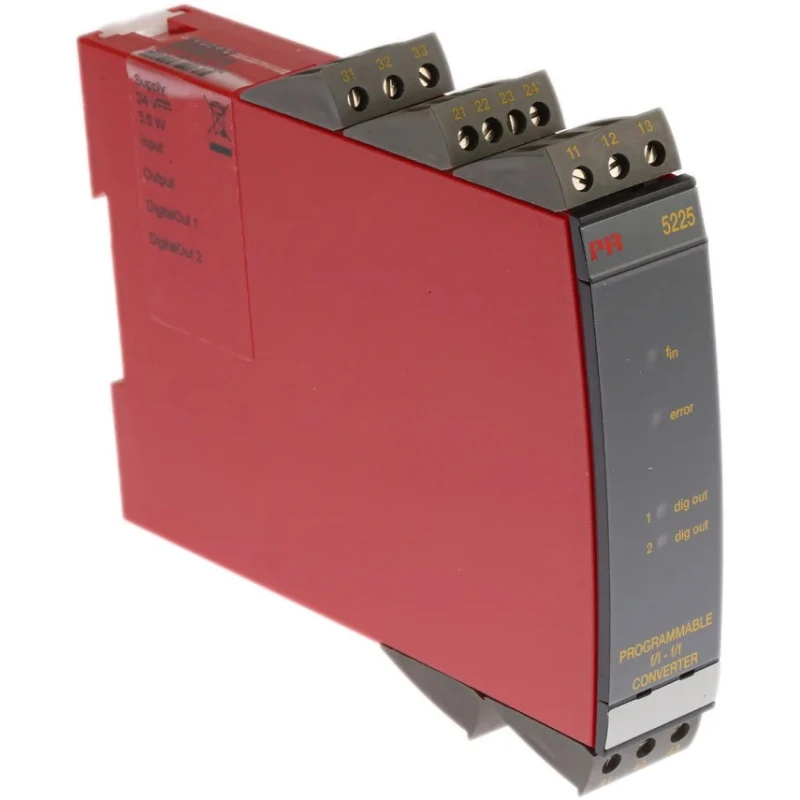

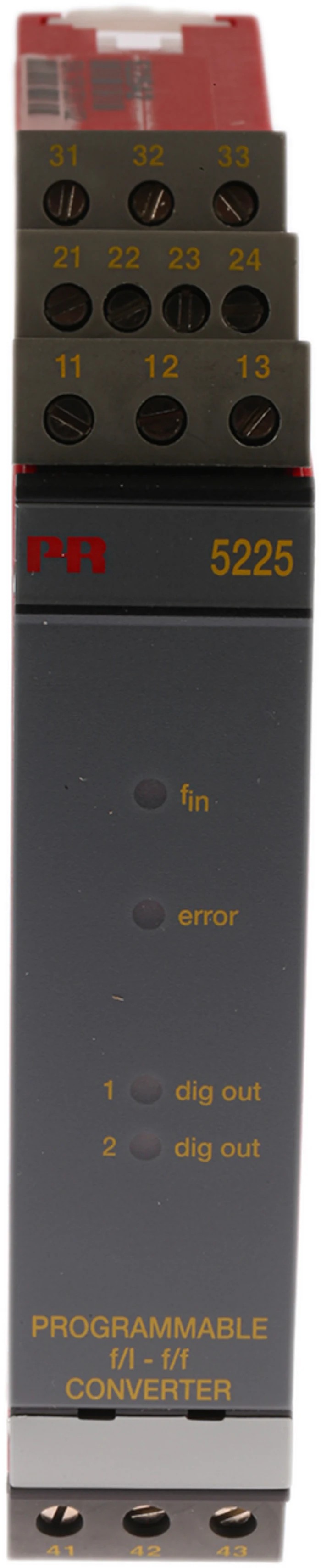

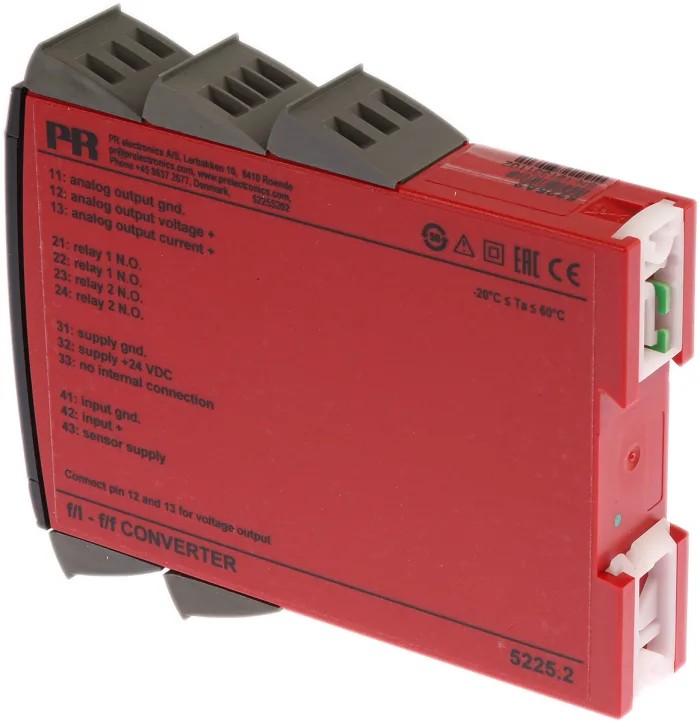

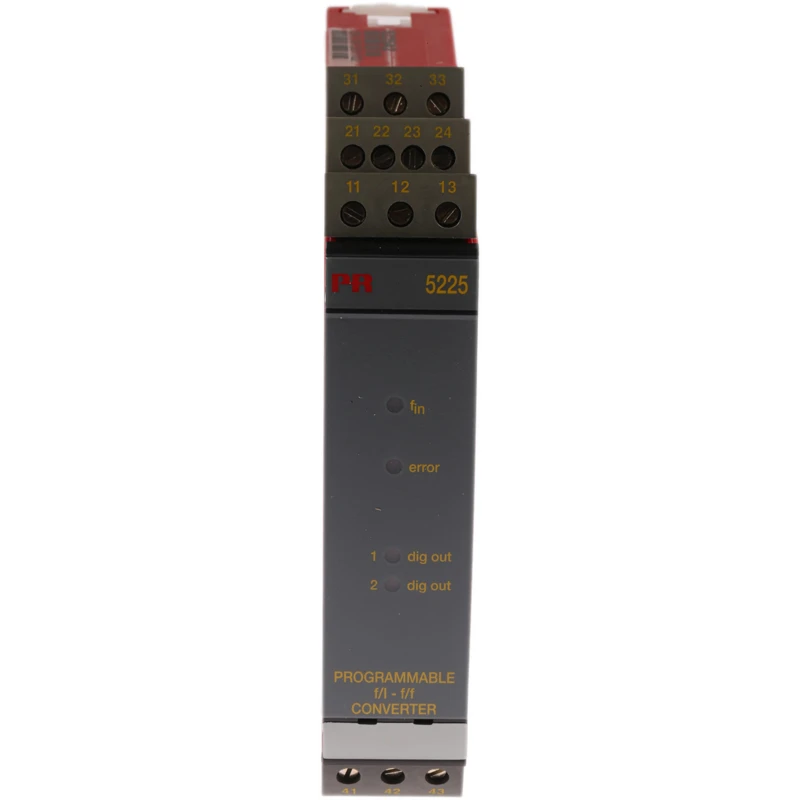

PR Electronics 5200 Series Universal Transmitter Frequency Input, Relay, Current, Voltage Output 19.2V dc, 28.8V dc 5225A2

PR Electronics 5225A2 is a versatile Universal Transmitter in the 5200 Series designed for frequency input applications. This transmitter supports relay, current, and voltage outputs, operating efficiently on 19.2V dc or 28.8V dc supply voltage. It offers precision frequency-to-current and frequency-to-frequency signal conversion with programmable functionality using Loop Link communications and PC configuration.

The transmitter is ideal for industrial, electrical, automation, and signal conditioning applications where reliable frequency measurement conversion is needed. Its robust design includes galvanic isolation of 3.75kV ac, screw terminal connectivity, and DIN rail mounting for easy installation in control panels.

Key functional features include pulse conditioning, frequency generation, and concurrent frequency-to-current and frequency-to-frequency operations. The device integrates four status indicators for monitoring its operation at a glance.

Operational temperature ranges from -20°C to 60°C, enabling its use in diverse environments. The transmitter supports various output signals such as 0-20mA analog current and voltage outputs (0-10Vdc/0-1Vdc), with relay output versions providing additional application flexibility.

PR Electronics 5225A2 complies with multiple international standards including LVD, EAC, CE, and EMC, ensuring safe and compliant deployment in demanding industrial settings. The product is manufactured in Denmark, reflecting high European quality standards.

For enhanced use, the device programming can be performed with or without a power supply using the Loop Link communications unit and an optional Display Front (PR4510) available separately. This universal transmitter supports sophisticated signal conditioning needs in industrial automation, measurement, and control system applications.

Set includes the universal transmitter unit designed for mounting on a DIN rail and screw terminal connections to facilitate efficient integration into existing systems. This transmitter converts frequency inputs to current and voltage outputs with high accuracy.

Supports programmable functionality for pulse division, multiplication, and buffering fast pulse trains. Includes galvanic isolation to 3.75kV ac for electrical safety and signal integrity. Mounting on DIN rail simplifies installation in control systems.

Wide operating temperature range allows use in varied industrial environments. Explore more PR Electronics universal transmitters and signal conditioning products at EnvMart for comprehensive industrial automation solutions.
