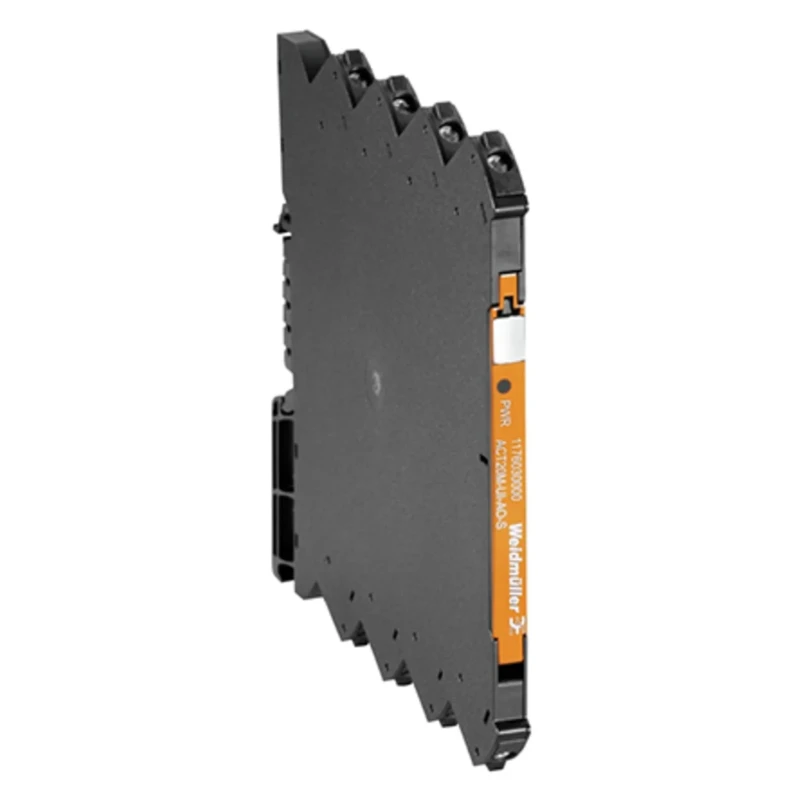

Weidmuller ACT20M Series Signal Conditioner Thermocouple Input Voltage Current Output 24V DC Supply ATEX FM Div2 1375480000

Free Delivery in India | Lowest Global Shipping Charges

Weidmuller ACT20M Series Signal Conditioner Thermocouple Input Voltage Current Output 24V DC Supply ATEX FM Div2 1375480000

Name: Weidmuller ACT20M Series Signal Conditioner Thermocouple Input Voltage Current Output 24V DC Supply ATEX FM Div2 1375480000
Brand: Weidmuller
SKU: 135788
Price: 231.87 USD
Availability: InStock



Category Signal Conditioners Brand Weidmuller Condition New

Specifications

Country of Origin	Denmark
Voltage	, Current Output, 24V dc Supply, ATEX, FM Div2 RS Stock No
Brand	Weidmuller
Mount Type	DIN Rail
Series	ACT20M
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Input Range	-100 → +1200 °C (J), -200 → +1370 °C (K)
Supply Voltage	24V dc
Hazardous Area Certification	ATEX, FM Div2
Input Signal Type	Thermocouple
Standards/Approvals	ATEX Zone2, cULus, GL, DNV, FM Div2
Output Signal Type	Voltage, Current
Signal Conditioner Type	Signal Converter for Thermocouples
Weidmuller Signal ConditionerBrand	Weidmuller

Key Features

This signal converter supports input ranges of -100 to +1200 °C (J type) and -200 to +1370 °C (K type) thermocouples.
Equipped with screw terminal type for secure electrical connections.
It is certified for hazardous areas compliantly with ATEX and FM Div2 standards.
Mounts easily on DIN rail for convenient installation.
Operates reliably within temperatures from -25°C to 70°C.
Ensures galvanic isolation between input, output, and supply circuits.
Complies with approvals including ATEX Zone 2, cULus, GL, and DNV.
Compact 6 mm width housing suitable for space-efficient panel mounting.

Product Description

Weidmuller 1375480000 ACT20M Series Signal Conditioner is a high-performance signal converter specially designed for processing thermocouple inputs. It converts temperature signals into standardized voltage or current outputs with complete electrical isolation, ensuring signal integrity and safety in demanding industrial environments. The device is powered by a 24V DC supply and is certified for use in hazardous locations with ATEX and FM Div2 approvals.

This signal conditioner supports thermocouple types J and K with input temperature ranges from -100 to +1200 °C and -200 to +1370 °C respectively. The compact 6 mm housing allows for efficient DIN rail mounting in control panels without occupying excessive space. Screw terminal connections ensure secure wiring and ease of maintenance.

The ACT20M series is engineered to operate reliably in ambient conditions ranging from -25°C to 70°C, making it suitable for various industrial and automation sectors. The galvanic isolation between input, output, and supply circuits prevents ground loops and enhances system safety and measurement accuracy.

This signal converter is certified for hazardous areas, meeting ATEX Zone 2, FM Div2, cULus, GL, and DNV standards, allowing its safe deployment in explosion risk zones. The compact size and robust construction provide flexibility and durability in panel installations.

Its application includes precise temperature measurement conversion in industrial automation and process control systems, especially where hazardous area certification is mandatory.

The device integrates well in control cabinets for signal conditioning and isolation of thermocouple inputs ensuring reliable transmission to PLCs or DCS systems. Intended for use in electrical, automation, manufacturing, and process industries requiring rigorous safety and accuracy standards.
