RS PRO Insulation Tester 50 V Min, 5 kV Max, 50 GΩ, CAT I, LCD Backlight Display RSST-2004

RS PRO RSST-2004 Insulation Tester is a professional-grade electrical safety analyser designed for precise insulation testing in industrial, commercial, laboratory, and HVAC environments. It features a test voltage range from 50 V minimum to 5 kV maximum with an insulation resistance capacity of 50 GΩ, ensuring effective diagnostics for a wide spectrum of electrical components and systems.

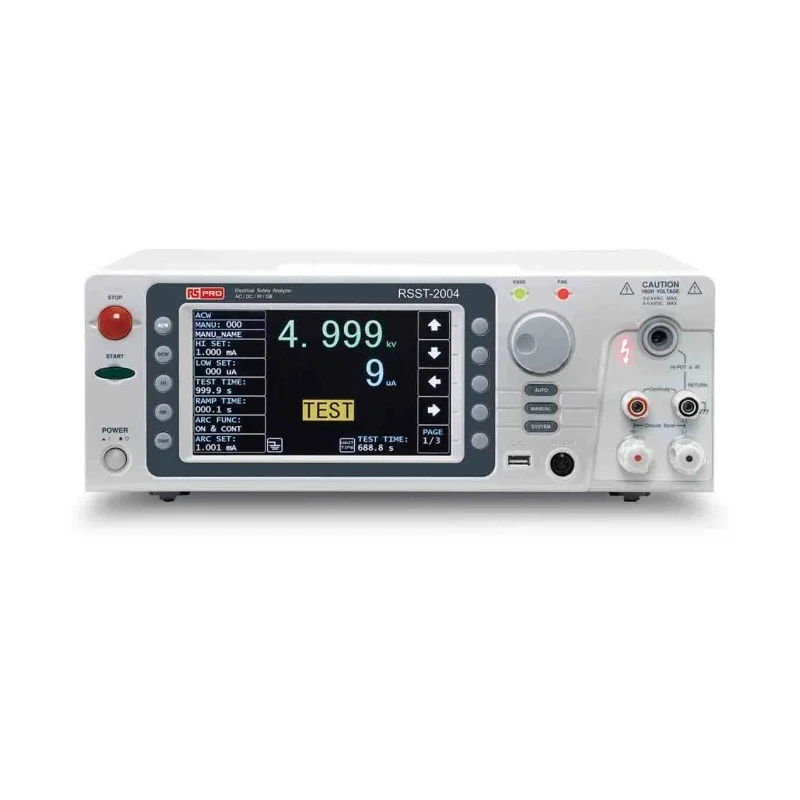

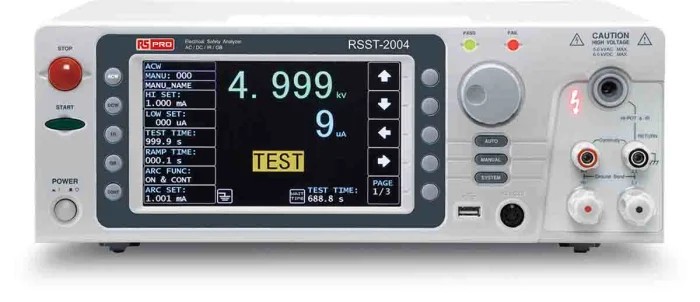

This model includes a large 7-inch colour TFT LCD backlight display that provides high visibility and ease of operation. The high-efficiency PWM amplifier technology minimizes the influence of fluctuating input voltages or distorted waveforms, delivering a stable and safe high-voltage output to the device under test.

Designed in compliance with IEC 61010-2-034, the RSST-2004 uses a double insulation design enhancing user safety by isolating input power supply and output voltage. Its major test capabilities include AC and DC withstanding voltage tests, ground bond tests, and grounding continuity tests, making it suitable for rigorous electrical safety verification.

The instrument offers advanced features such as adjustable voltage ramp-up and ramp-down times, upper and lower limit judgment settings, and storage for up to 100 manual test conditions. High illumination LED indicators and an audible alarm system provide clear test status warning and judgment feedback during operations.

Compact and robust, with dimensions of 380 mm width and 148 mm height, and weighing 15 kg, this tester offers both portability and durability. It runs on mains power and features a CR2032 battery with an approximate two-year lifespan, ensuring operational reliability.

Manufactured in Taiwan and CE certified, the RS PRO RSST-2004 is a reliable solution for electrical safety compliance, suitable for applications in industrial machinery, electrical equipment maintenance, laboratory instrumentation, and HVAC system testing.

The device features a large 7-inch colour TFT LCD backlight display for clear readings. Incorporates a high-efficiency PWM amplifier ensuring stable high-voltage output despite input fluctuations. Supports AC and DC withstanding voltage tests, ground bond tests, and grounding continuity tests.

Equipped with memory storage for 100 manual test sets for versatile testing conditions. Operates safely within 0°C to 40°C with double insulation design meeting IEC 61010-2-034 standards. Includes high illumination LED indicators and audible alarms for test status and warnings.

Powered by mains and supported by CR2032 battery with up to 2 years battery life for reliability. Compact form factor of 380 mm width and 148 mm height with a gross weight of 15 kg. Manufactured in Taiwan with CE certification for compliance and quality assurance.
