Fluke Insulation Tester 250 V Min, 5 kV Max, 1 TΩ, CAT IV 600 V CAT III 1000 V FLUKE 1550C

Free Delivery in India | Lowest Global Shipping Charges

Fluke Insulation Tester 250 V Min, 5 kV Max, 1 TΩ, CAT IV 600 V CAT III 1000 V FLUKE 1550C

Name: Fluke Insulation Tester 250 V Min, 5 kV Max, 1 TΩ, CAT IV 600 V CAT III 1000 V FLUKE 1550C
Brand: FLUKE
SKU: 408249
Price: 8919.42 USD
Availability: InStock



Category Insulation Tester Brand FLUKE Condition New

Specifications

Country of Origin	United States
Display Type	LCD
Brand	Fluke
Battery Life	750Tests
Battery type	Rechargeable Lead Acid (Yuasa NP2.8-12)
Height	160mm
Length	277mm
Model	FLUKE 1550C
Gross Weight	3.7kg
Width	269mm
Maximum Operating Temperature	50°C
Tester Type	Insulation Tester
Minimum Operating Temperature	-20°C
Test Current	2mA
Minimum test Voltage	250V
Standards/Approvals	CE, CSA
Safety Category Level	CAT IV, CAT III
Safety Category Voltage	600, 1V
Maximum Test Voltage	5kV
Insulation Testing Resistance	1TΩ
Megger MJ15 Insulation Tester, 500V Min, 5000V Max, 20GΩ Max, CAT I 600VBrand	Megger
Fluke 1550B Hipot Tester, 250V Min, 5000V Max, 1TΩ Max, CAT III 600 VBrand	Fluke

Key Features

Features selectable test voltages from 250 V up to 5000 V for diverse asset testing.
Insulation resistance measurement capability up to 1 TΩ ensures detection of very high resistance.
Test current capability of up to 2 mA for accurate leakage current readings.
Powered by a rechargeable lead-acid battery enabling extended field use before recharging.
CAT IV 600 V and CAT III 1000 V safety ratings for enhanced operational protection on site.
Large LCD with analogue bar graph provides clear visualization of trends and results.
Operable in harsh environments with temperature range from -20°C to 50°C.
Includes data storage and infrared interface for wireless logging with mobile apps.

Product Description

Fluke FLUKE 1550C Insulation Tester is a professional-grade, portable instrument designed for precise insulation resistance testing of high-voltage electrical equipment and machinery. It supports test voltages from 250 V minimum to 5000 V maximum and can measure insulation resistance up to 1 TΩ, suitable for detailed field diagnostics and maintenance tasks.

The instrument features selectable test voltages to adapt to a variety of assets such as switchgear, transformers, motors, generators, and cable installations. It provides a test current capability up to 2 mA for accurate detection of leakage currents essential for assessing the health of insulation systems.

Powered by a rechargeable lead-acid battery (Yuasa NP2.8-12), the tester offers sustained performance with up to 750 test cycles between charges, optimizing field workflow. Its robust safety ratings of CAT IV 600 V and CAT III 1000 V ensure safe operation under demanding industrial conditions.

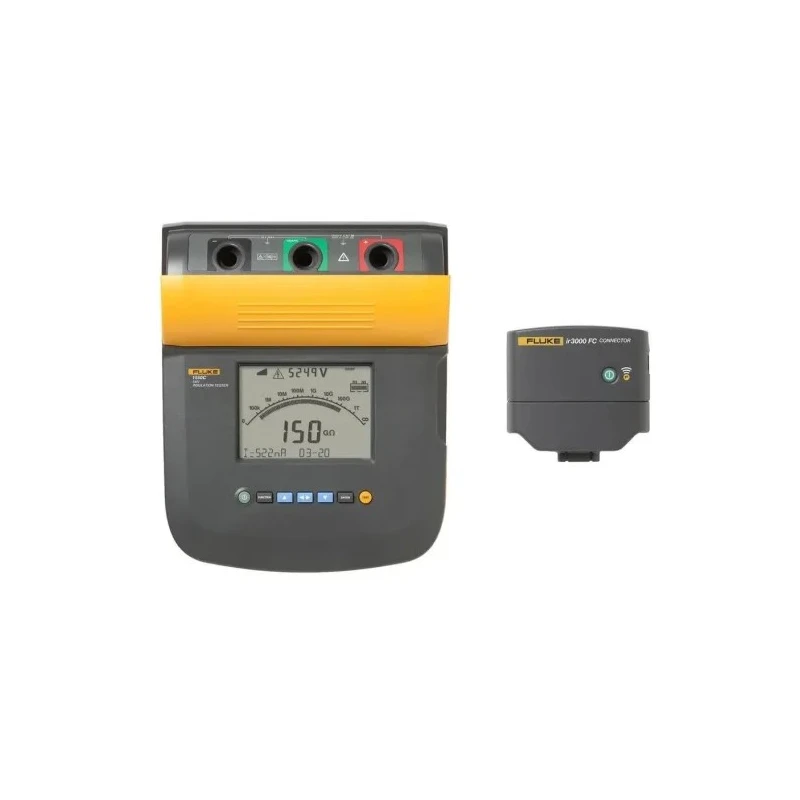

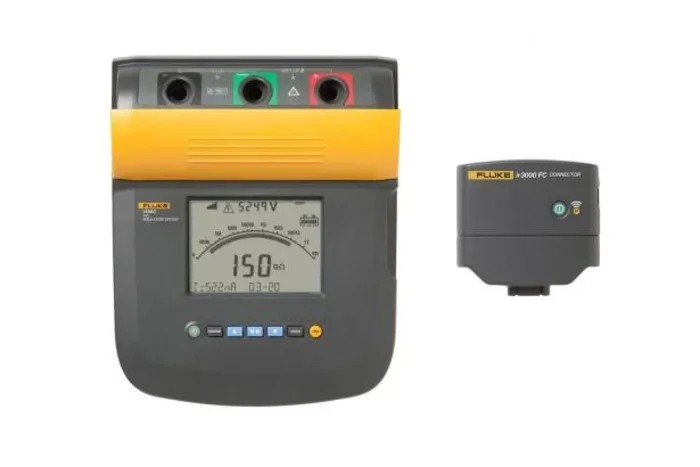

The large LCD screen combined with an analogue bar graph enables easy visualization of measurement trends. Environmental operation supports temperatures from -20°C to 50°C, addressing various climates and humidity ranges relevant to industrial sites.

Measurements can be stored locally and transmitted wirelessly via an infrared connector to mobile applications for logging and trending, aiding comprehensive asset management and preventive maintenance programs.

Applications include preventive maintenance of switchgear and transformers, medium-voltage motor commissioning and fault diagnosis, long cable run insulation assessment, and generator insulation health trending.

Selectable 250 V to 5000 V test voltages. Insulation resistance measurement up to 1 TΩ. Test current of 2 mA for precise leakage current detection. Rechargeable lead-acid battery powering 750 test cycles. CAT IV 600 V and CAT III 1000 V safety category ratings.

Large LCD with analogue bar graph display. Operates in temperatures from -20°C to 50°C. Data storage and wireless infrared transmission. Includes test cables with alligator clips, power cord, carrying case, and manuals.

The FLUKE 1550C is a reliable tool for industrial, electrical, manufacturing, and maintenance professionals requiring robust insulation testing up to 5 kV with high accuracy and safety standards. Explore more Insulation Testers and related equipment in the EnvMart catalog for optimized asset testing solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum test voltage of the Fluke 1550C insulation tester is 5 kV.

This model can measure insulation resistance up to 1 TΩ.

The test current capability is up to 2 mA, allowing for accurate leakage current detection.

It has safety ratings of CAT IV 600 V and CAT III 1000 V, ensuring safe operation in industrial environments.

The Fluke 1550C operates in temperatures ranging from -20°C to 50°C.

It is powered by a rechargeable lead-acid battery, specifically the Yuasa NP2.8-12, allowing for up to 750 test cycles between charges.

It features a large LCD display with an analogue bar graph for clear visualization of measurement trends and results.

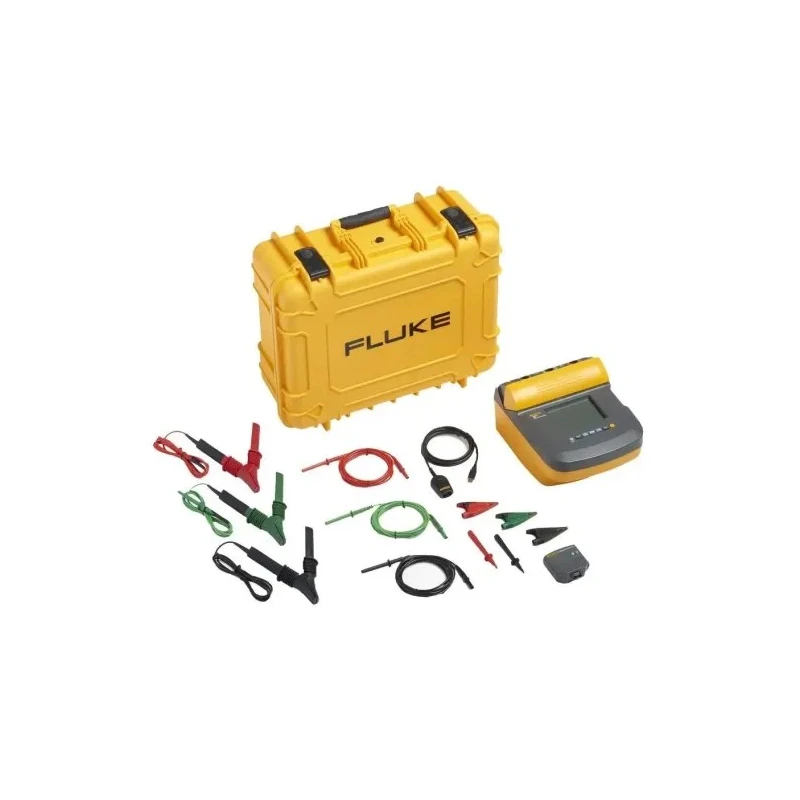

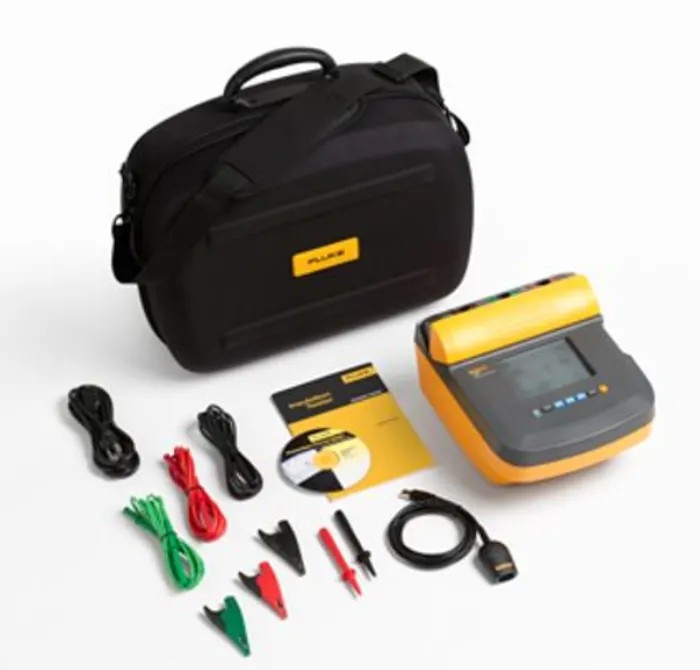

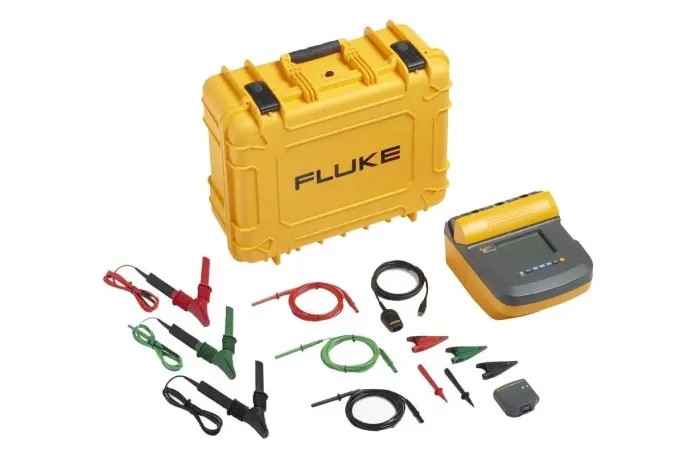

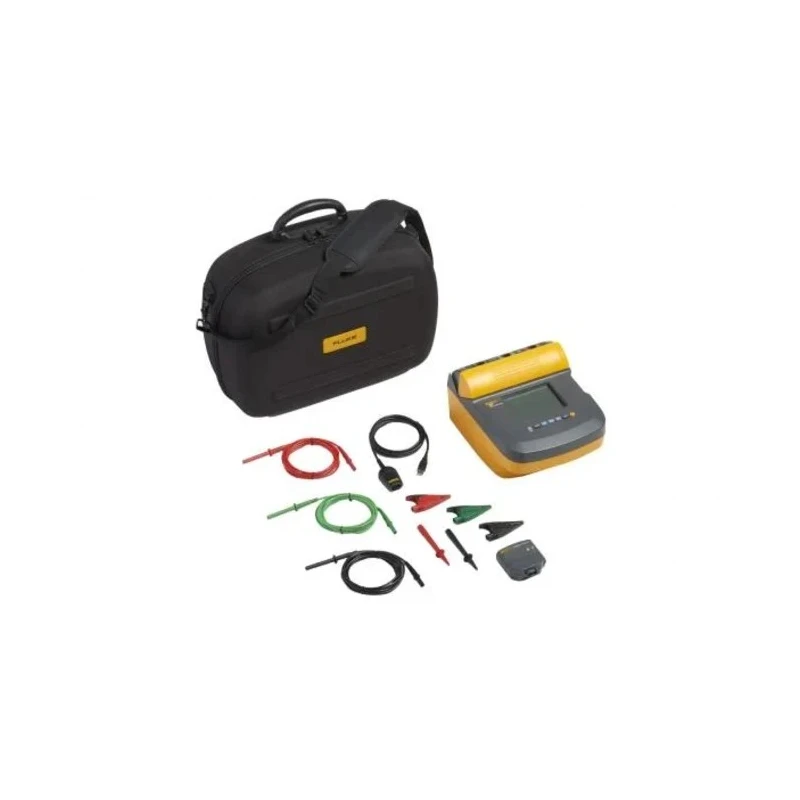

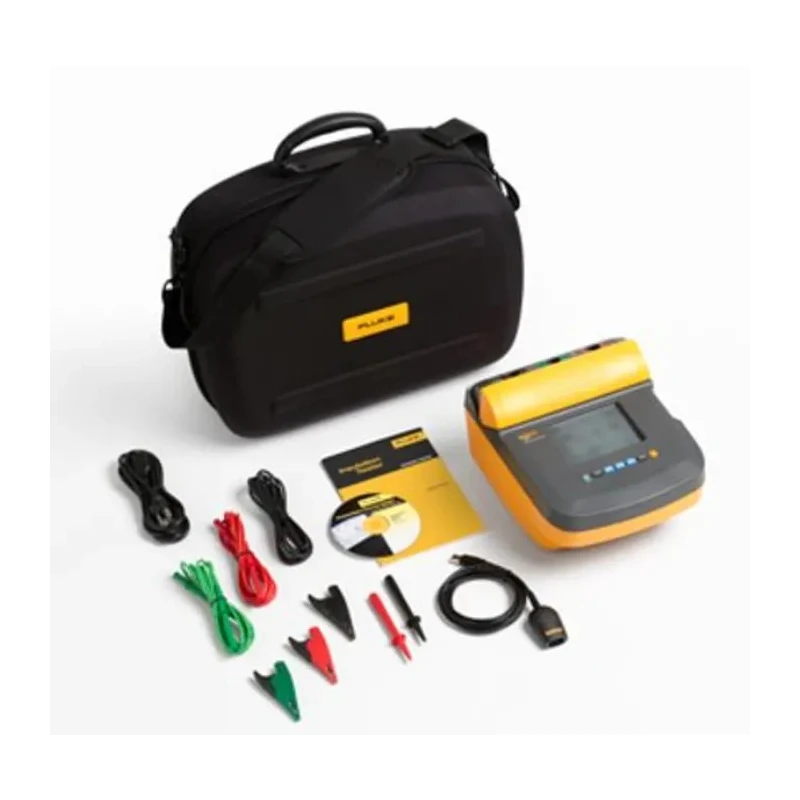

Included accessories are test cables with alligator clips, a power cord, a carrying case, and manuals.

This model is suitable for preventive maintenance of switchgear and transformers, medium-voltage motor commissioning, and generator insulation health trending.

The dimensions are 277 mm in length, 269 mm in width, and 160 mm in height, with a gross weight of 3.7 kg.

It complies with CE and CSA standards, ensuring it meets recognized safety and performance criteria.

Yes, the Fluke 1550C includes data storage capabilities and an infrared interface for wireless transmission to mobile applications.
