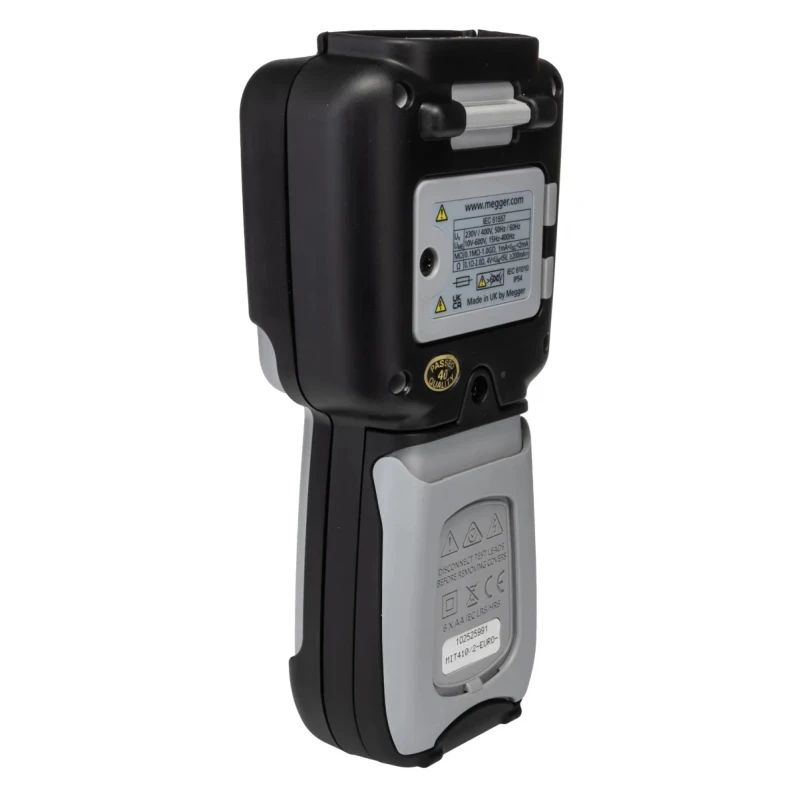

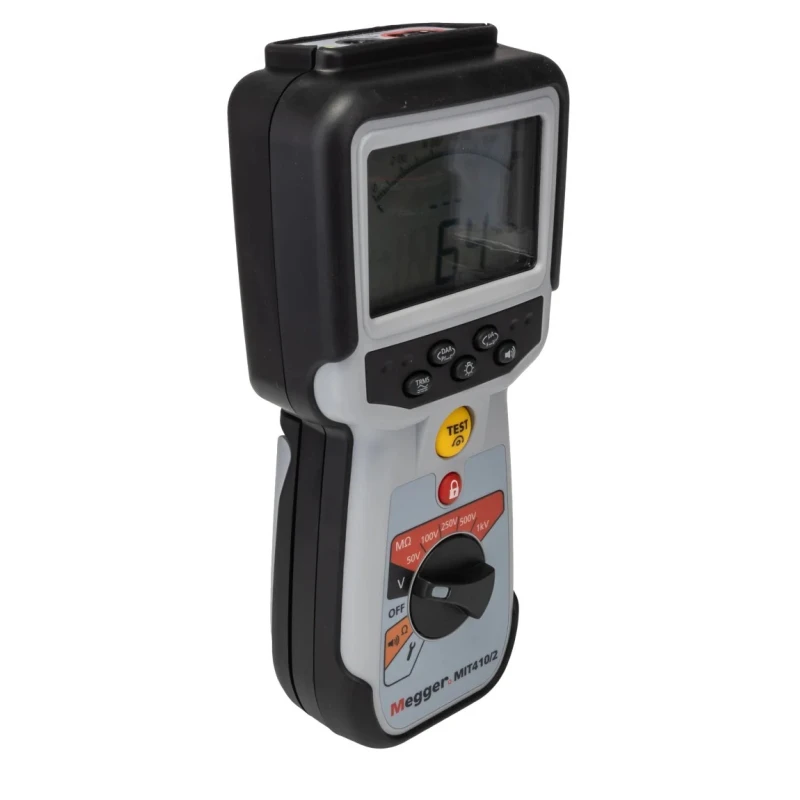

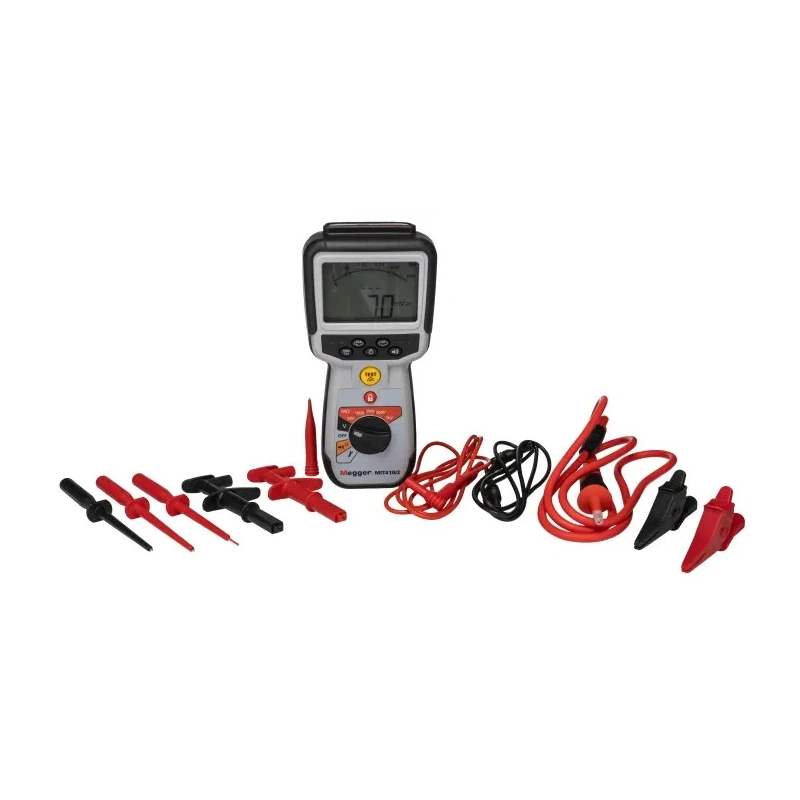

Megger Insulation Tester 10 V Min, 1 kV Max, 200 GΩ Resistance, CAT IV Safety Level MIT410 2

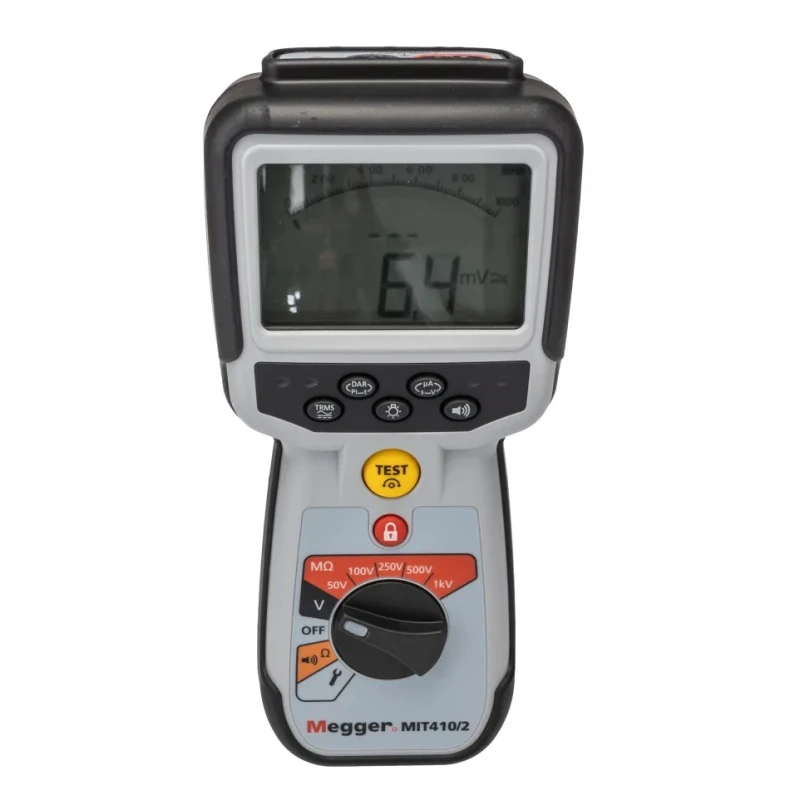

The Megger MIT410 2 insulation tester is engineered to provide accurate insulation resistance measurements for industrial and commercial electrical systems. It supports testing from 10 V minimum to 1 kV maximum voltages with resistance measurement capability of up to 200 gigaohms (GΩ). This device is equipped with both analogue and dual digital displays allowing operators clear, precise data reading under varying lighting conditions.

This insulation tester is battery powered with alkaline cells, offering the flexibility of portable, handheld operation. Its durable ABS housing encloses the electronics protecting against impacts and wear in harsh industrial environments. Compact dimensions of 220 mm height, 92 mm length, and 50 mm width make it easy to handle during extended use.

Designed for safety, the tester is certified to CAT IV 600 V safety standards, suitable for the highest category of electrical environments. It meets IEC 61326-1 standards ensuring compliance with international quality and safety norms. An IP54 rating secures protection against limited dust ingress and water sprays, enabling reliable operation in challenging conditions.

The MIT410 2 includes an inbuilt pass/fail alarm system that instantly alerts users to poor insulation, facilitating quick detection of faults or degradation. This feature is valuable for routine maintenance and troubleshooting in electrical engineering, avionics, and industrial automation sectors.

Compact and ergonomic, this Megger insulation tester allows professionals to maintain electrical systems efficiently, minimizing downtime and improving safety compliance. Its resistance range of 200 GΩ and test current of 205 mA provide rigorous testing capabilities aligned with professional requirements.

Analogue and dual digital display for precision readings. Broad operating temperature range from -20°C to 55°C. Battery powered for portability and convenience. Robust ABS housing for impact resistance. Safety rated CAT IV at 600 V for secure measurements.

IP54 rated protection against dust and water sprays. Pass/fail alarm for immediate fault detection. Compact and ergonomic handheld design. Conforms to IEC 61326-1 international standards.

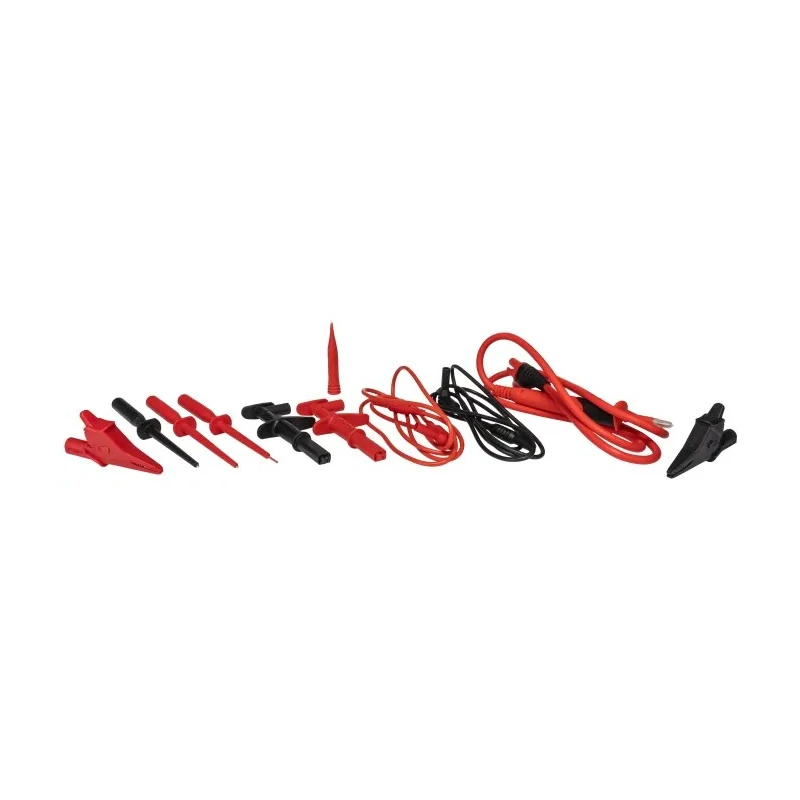

Choose the Megger MIT410 2 Insulation Tester for dependable, precise insulation testing within harsh industrial and electrical maintenance environments. Browse our collection of high-quality electrical test equipment to find compatible measuring instruments, leads, and accessories for comprehensive testing solutions.
