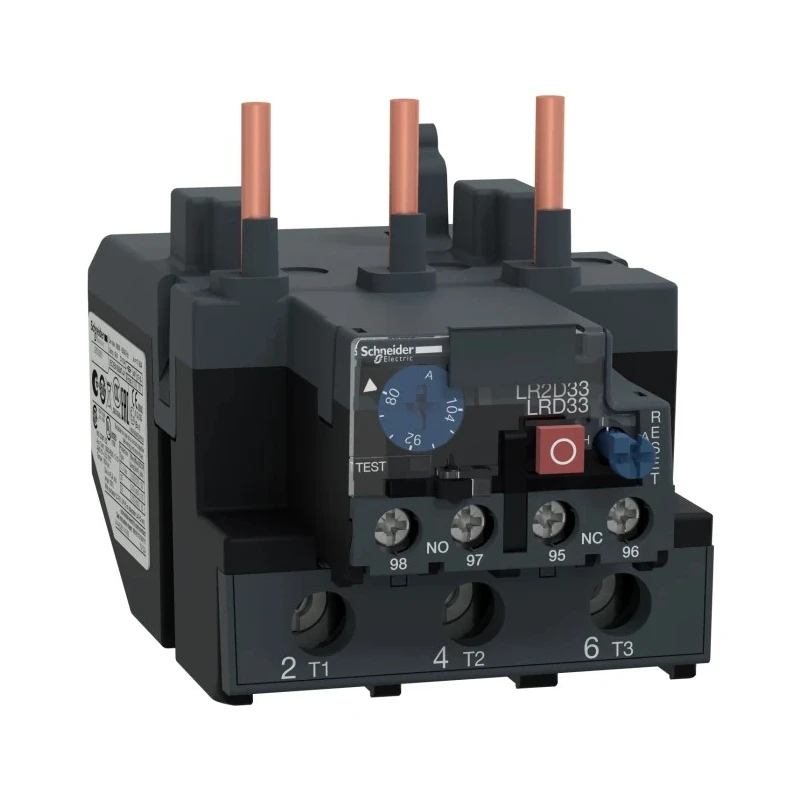

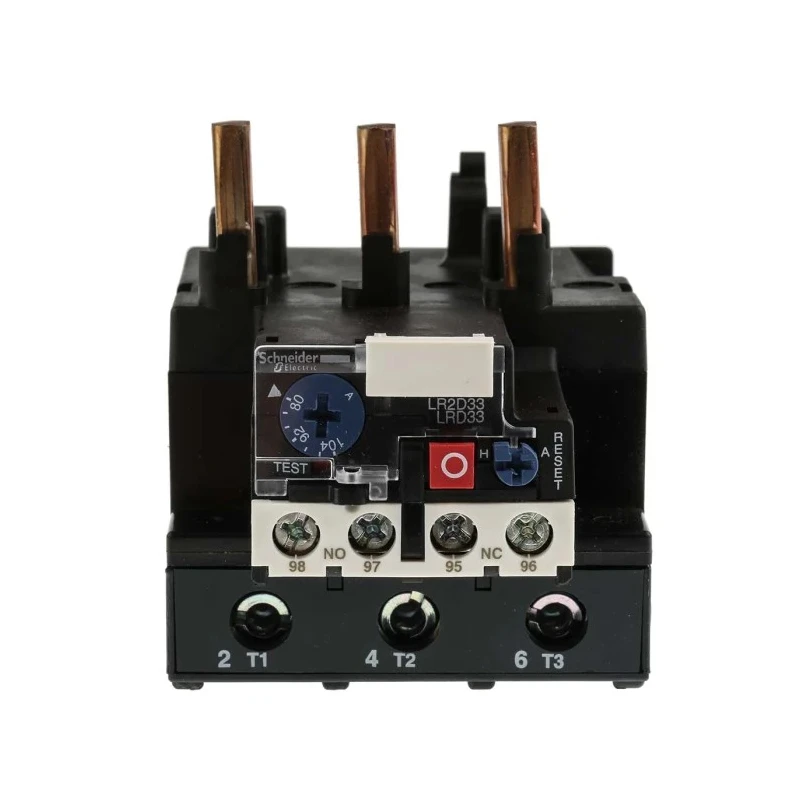

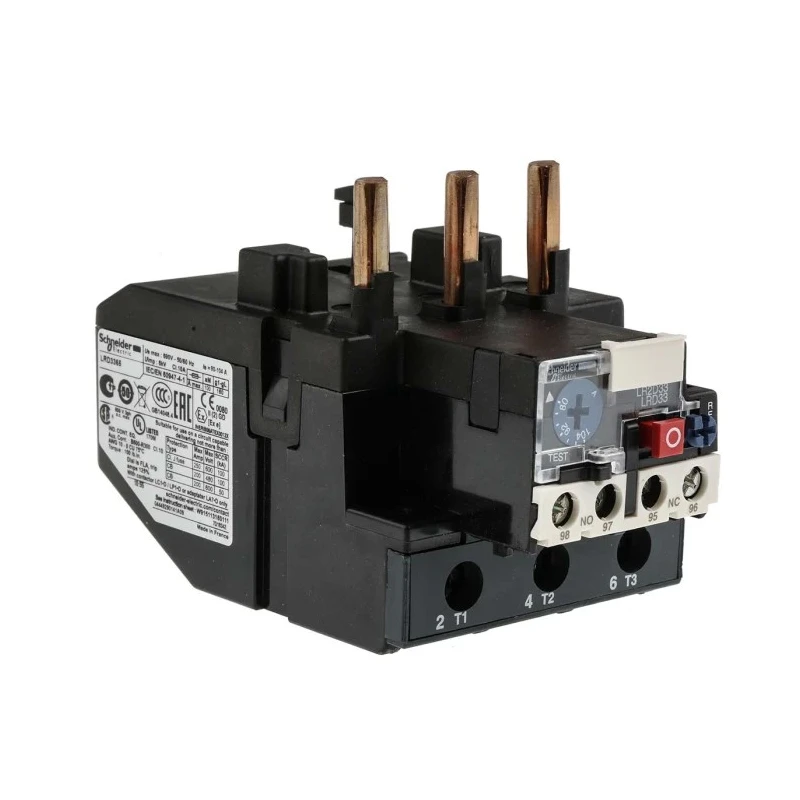

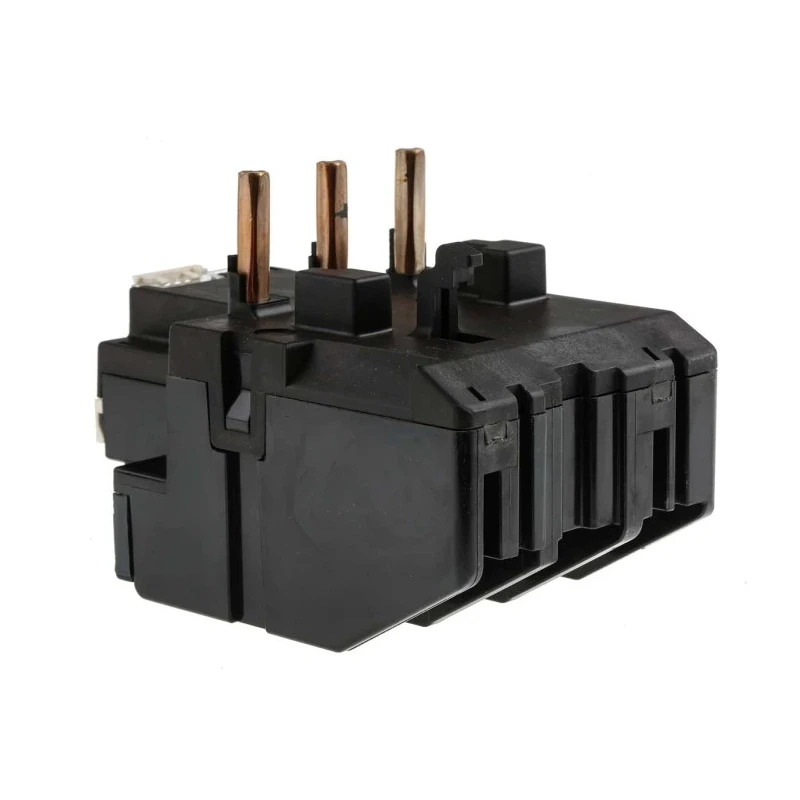

Schneider Electric Thermal Overload Relay 1 NO/1 NC, 104A Relay Contact Current, 80 - 104A Adjustable Current Range LRD3365

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Thermal Overload Relay 1 NO/1 NC, 104A Relay Contact Current, 80 - 104A Adjustable Current Range LRD3365

Name: Schneider Electric Thermal Overload Relay 1 NO/1 NC, 104A Relay Contact Current, 80 - 104A Adjustable Current Range LRD3365
Brand: Schneider Electric
SKU: 182863
Price: 276.87 USD
Availability: InStock



Category Thermal Overload Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Length	236mm
Model	LRD3365
Depth	123mm
IP Rating	IP20
Width	55mm
Mount Type	Direct
Series	LRD
Power Rating	45kW
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Contact Voltage	690V ac
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Better World Claim	Designed for Disassembly
Relay Contact Current	104A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
FLC Motor Rating	104, 80A
Adjustable Current Range	80 → 104 A
Schneider Electric TeSys D LC1D Contactor, 24 V ac Coil, 3-Pole, 3NOBrand	Schneider Electric

Key Features

Suitable for protecting AC motors with a power rating of up to 45 kW.
Adjustable current range from 80 to 104 amperes for versatile application.
Features 1 normally open and 1 normally closed auxiliary contact for signaling.
Screw terminal type ensures secure and fast electrical connections.
Manual and automatic reset methods provide flexible operation.
Operating temperature range from -20°C to 60°C suitable for harsh environments.
Compliance with EN/IEC and UL standards for safety and reliability.
Designed for easy disassembly to support sustainability practices.

Product Description

Schneider Electric LRD3365 Thermal Overload Relay is engineered to provide effective overload protection for AC motors, specifically designed to monitor motor full load currents ranging from 80 to 104 amperes with a relay contact current rating of 104A. It is part of the TeSys LRD series and supports power ratings up to 45 kW.

The device includes one normally open and one normally closed contact, providing reliable signaling capability. Screw-type terminals allow for secure electrical connections, enhancing installation efficiency. Its reset functionality supports both manual and automatic operation, offering flexibility in motor control setups.

Designed for demanding industrial environments, the relay operates within a broad temperature range from -20°C to +60°C and carries an IP20 ingress protection rating. The compact form factor, measuring 55mm in width, 236mm in length, and 123mm in depth, fits well in control panels.

Conforming to multiple international standards including EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2, DNV-GL, EAC, and EC approvals, it ensures high safety and quality compliance suitable for industrial and manufacturing applications.

Suitable for motor overload protection in buildings and infrastructure applications. Applied widely in manufacturing machinery for motor safety and reliability. Designed for disassembly as a Better World product to facilitate sustainability.

Direct mount type with 3 poles supports straightforward integration. Operating voltage capability up to 690V AC, suitable for diverse electrical systems.

This Thermal Overload Relay uses a bimetallic strip mechanism that trips the circuit under overcurrent conditions, preventing motor damage caused by phase failure or prolonged stalling.
