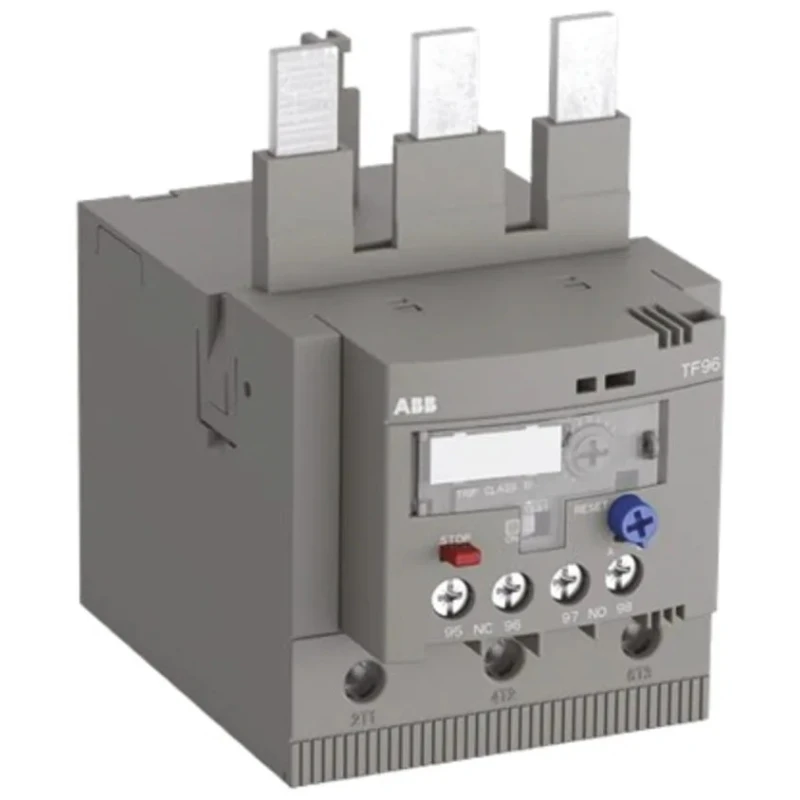

ABB Thermal Overload Relay 1 NO/1 NC 96A FLC 6A Contact Rating 690V AC 3 TF96



Category Thermal Overload Relay Brand ABB Condition New

Specifications

Country of Origin	China
Brand	ABB
Length	69.9mm
Model	TF96
Depth	106.9mm
IP Rating	IP20, IP10
Width	60.6mm
Mount Type	Under Contactor Mount
Series	TF96
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Terminal type	Flat
Supply Voltage	690V ac
Contact Voltage	600V ac/dc
Reset Method	Automatic or Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	6A
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
Control Voltage	690V ac
FLC Motor Rating	96A
Adjustable Current Range	22 → 96 A

Key Features

The relay features automatic or manual reset functionality.
It supports adjustable current range from 22A to 96A for precise motor protection.
Mounting is designed for under contactor installation.
Equipped with 1 Normally Open and 1 Normally Closed contact configuration.
The relay has an IP20 and IP10 rating for protection against solid objects.
Suitable for operating temperatures between -25°C and 60°C.
The device complies with multiple IEC/EN and UL standards ensuring reliable performance.
Includes 2 auxiliary contacts to enhance control capabilities.

Product Description

ABB TF96 Thermal Overload Relay 1 NO/1 NC is designed to provide robust motor overload protection with a full load current rating of 96A and a relay contact current rating of 6A. Operating at 690V AC for 3-phase systems, this relay is ideal for industrial applications requiring precise and reliable overload protection.

The relay offers selectable automatic or manual reset methods, allowing flexible operation tailored to specific motor protection needs. Its adjustable current range from 22 to 96 amps ensures the relay can be finely tuned for different motor sizes and load characteristics.

Featuring an under contactor mount type, it is easy to install within control panels. The 1 Normally Open and 1 Normally Closed contacts provide clear and effective switching states. With an IP20 and IP10 rating, the relay is protected against solid foreign objects, suitable for typical industrial environments.

Rated for operating temperatures from -25°C to 60°C, it can function reliably in varied climatic conditions. The relay conforms to IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL standards, and RoHS directives, assuring compliance with international safety and performance requirements.

Two auxiliary contacts increase operational flexibility, and its compact size (60.6mm width, 69.9mm length, and 106.9mm depth) allows installation in space-constrained panels. This thermal overload relay is suitable for use in industrial automation, manufacturing plants, HVAC systems, and other heavy-duty motor control applications.

Set your system up for reliable motor protection using the ABB TF96 Thermal Overload Relay. Explore more products and solutions in the Relays & Contactors category at EnvMart. The relay features automatic or manual reset functionality.

It supports adjustable current range from 22A to 96A for precise motor protection. Mounting is designed for under contactor installation. Equipped with 1 Normally Open and 1 Normally Closed contact configuration. The relay has an IP20 and IP10 rating for protection against solid objects.

Suitable for operating temperatures between -25°C and 60°C. The device complies with multiple IEC/EN and UL standards ensuring reliable performance. Includes 2 auxiliary contacts to enhance control capabilities. Compact dimensions: Width 60.6mm, Length 69.9mm, and Depth 106.9mm.
