IKALOGIC SP209 Logic Analyzer with 9 Channels, 200 MHz Sampling Rate, RS232, LIN, RS485, CAN, USB Interface SP209

The IKALOGIC SP209 Logic Analyzer is an advanced digital diagnostic instrument designed for industrial, laboratory, and electronic testing environments. Featuring 9 logic channels with adjustable voltage thresholds of 1.8V, 2.5V, 3.3V, and 5V, it ensures versatility for various logic voltage standards.

Its state-of-the-art input stage, equipped with Schmitt triggers, eliminates glitches on slow signals, enhancing the reliability of captured data. The device samples signals at a high rate of 200 MHz across all channels, allowing detailed observation and analysis of fast digital communications.

An external clock option (up to 50 MHz) on SMA connectors enables synchronization and precise timing measurements with trigger-in and trigger-out capabilities, facilitating integration with other laboratory instruments.

To handle large data captures, the logic analyzer incorporates 2 Gb DDR3 memory that supplements USB streaming by compressing samples. This feature ensures no loss of data even on hosts with limited USB bandwidth.

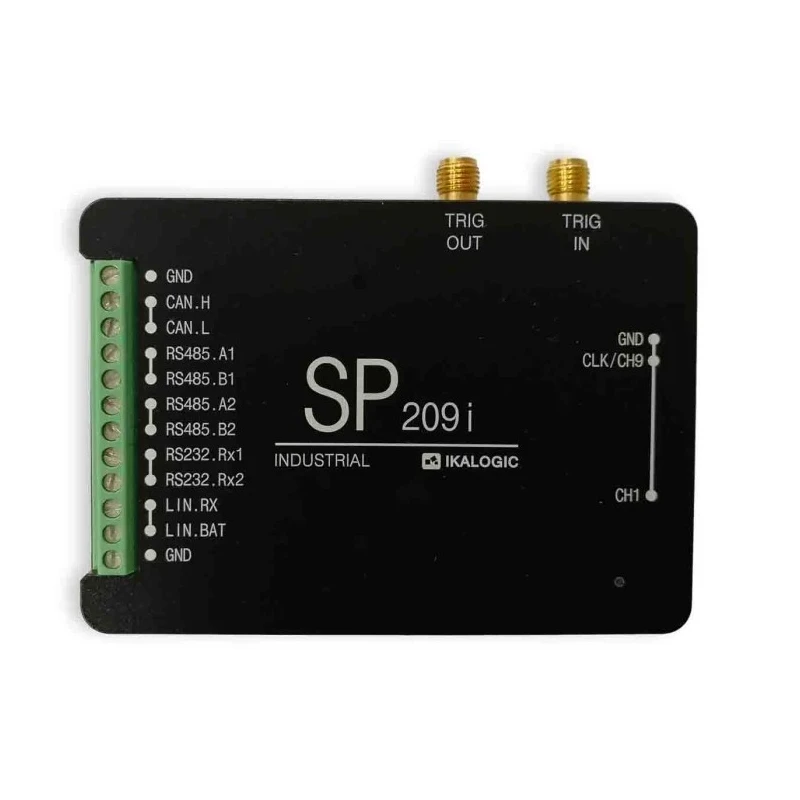

The industrial version SP209i includes embedded receivers for common serial protocols such as RS232, CAN, LIN, and RS485, making it ideal for automotive and industrial communications debugging.

The device is compact and lightweight, measuring 84.9 mm in length, 59.9 mm in width, and 13.1 mm in height, with a weight of only 105 grams, contributing to portability in field and bench applications.

The free, intuitive software package runs on Windows, macOS, and Linux platforms, supporting multiple abstraction levels for signal decoding - from raw bits to protocol packets, thereby simplifying the analysis of complex digital signals.

9 logic channels with voltage thresholds adjustable to industry standards. Schmitt trigger input stage to ensure signal integrity. 200 MHz sampling rate for high-speed digital signal analysis. External clock and precise trigger options via SMA connectors.

2 Gb DDR-3 memory aids in lossless sample storage and streaming. Embedded protocol receivers for industrial serial standards in the SP209i version. Cross-platform software compatibility with user-friendly operation. Compact size and lightweight for easy deployment.

Includes premium micro-grabber probes set for efficient signal acquisition.

The IKALOGIC SP209 Logic Analyzer is suitable for industrial manufacturing, electronics testing, automotive protocol debugging, and laboratory research applications. It enables engineers and technicians to capture, analyze, and decode digital communication signals reliably with excellent timing precision and multi-protocol support.
