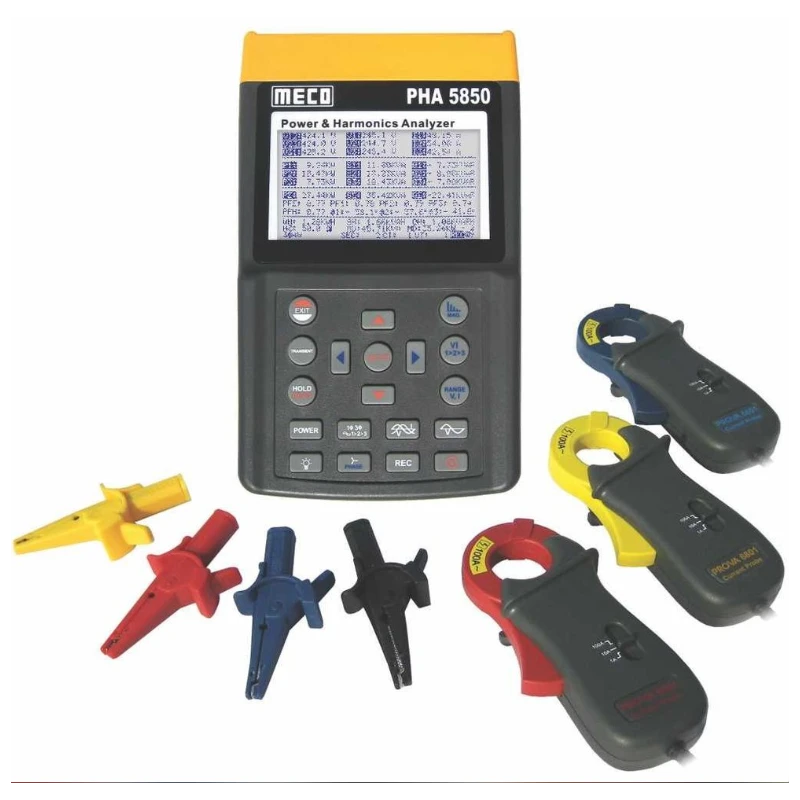

Meco Power & Harmonics Analyzer PHA-5850B
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Voltage Test Leads /Alligator Clips (Voltage) /Carrying Bag /Batteries 1.5V /External DC Adaptor /Software CD /Users Manual /Software Manual /Optical USB Cable /Current Clamp |
| Power Consumption | 140mA (approx) |
| Display | Dot Matrix LCD (240×128) with backlight |
| Operating Condition | -10°Cto50°C Less than 85%RH |
| Brand | Meco |
| Power | Eight×1.5V AA Batteries |
| Dimensions | 257×155×57mm |
| Model | PHA-5850B |
| Weight | 1.16 kg |
| Sampling Time | 2 to 3000 seconds for data logging |
| No. of samples | 1024 samples /period |
| Storage Condition | -20°Cto60°C Less than 75%RH |
| LCD Update Rate | 1 time /second |
| External DC Input | Power supply adapter 12V DC |
Key Features
- Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
- Display of 35 Parameters in one screen (3P4W)
- Programmable CT (1 to 600) and PT (1 to 3000) Ratios
- RMS, PEAK Value & Crest Factor
- True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
- Power Factor, Phase Angle ( ? ) & Energy (WH, KWH, KVARH, PFH)
- Average / Maximum Demand (KW, MW, KVA, MVA) with Programmable Period
- Display of 50 Harmonics in one Screen with Waveform with Peak value (1024 Sample / Period)
- Analysis of total Harmonics Distortion (THD-F)
- Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
- Built-in timer & Calender for Data Logging
- 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
- Optical Isolated RS-232C ~ USB Interface
- Calculated Unbalanced Current through Neutral line
- Graphic Phasor Diagram
- Facility to retrieve Power Data & Harmonics on Meter Screen
Product Description
The Meco PHA-5850B is a professional-grade harmonics analyzer that provides in-depth analysis of power systems including voltage, current, frequency, phase angle, and total harmonic distortion. It offers real-time waveform display and supports up to 63rd harmonic analysis. With large color screen, built-in memory, USB interface, and support for PC data transfer, it enables detailed logging and reporting. Ideal for power quality audits, troubleshooting, and system optimization, the PHA-5850B is a crucial instrument for modern energy professionals and facility managers.
Available on EnvMart, these Digital Analyzers are designed for accurate analysis of electrical parameters and power quality. Meco Digital Analyzers provide precision, durability, and reliability for industrial, laboratory, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Meco PHA-5850B can analyze 3P4W, 3P3W, 1P2W, and 1P3W systems, providing a comprehensive assessment of power quality.
It displays 35 parameters on one screen for 3P4W systems, including RMS values, active power, apparent and reactive power, power factor, phase angle, energy metrics, and harmonic analysis.
The Meco PHA-5850B allows a sampling time for data logging that can be set between 2 to 3000 seconds.
The Meco PHA-5850B supports analysis of harmonics up to the 63rd order, providing detailed insight into power quality issues.
The Meco PHA-5850B has a power consumption of approximately 140mA.
The Meco PHA-5850B features a dot matrix LCD display with a resolution of 240×128 and backlight for improved visibility.
The Meco PHA-5850B weighs 1.16 kg and has dimensions of 257×155×57 mm.
The Meco PHA-5850B operates effectively within a temperature range of -10°C to 50°C and less than 85% relative humidity.
The Meco PHA-5850B is powered by eight 1.5V AA batteries and also supports an external DC input of 12V DC.
The package includes voltage test leads, alligator clips, a carrying bag, batteries, an external DC adapter, software CD, user manuals, and an optical USB cable.
The Meco PHA-5850B features built-in memory for data logging, allowing for 17,000 records for 3P4W systems with programmable intervals.
The Meco PHA-5850B is manufactured in India.
