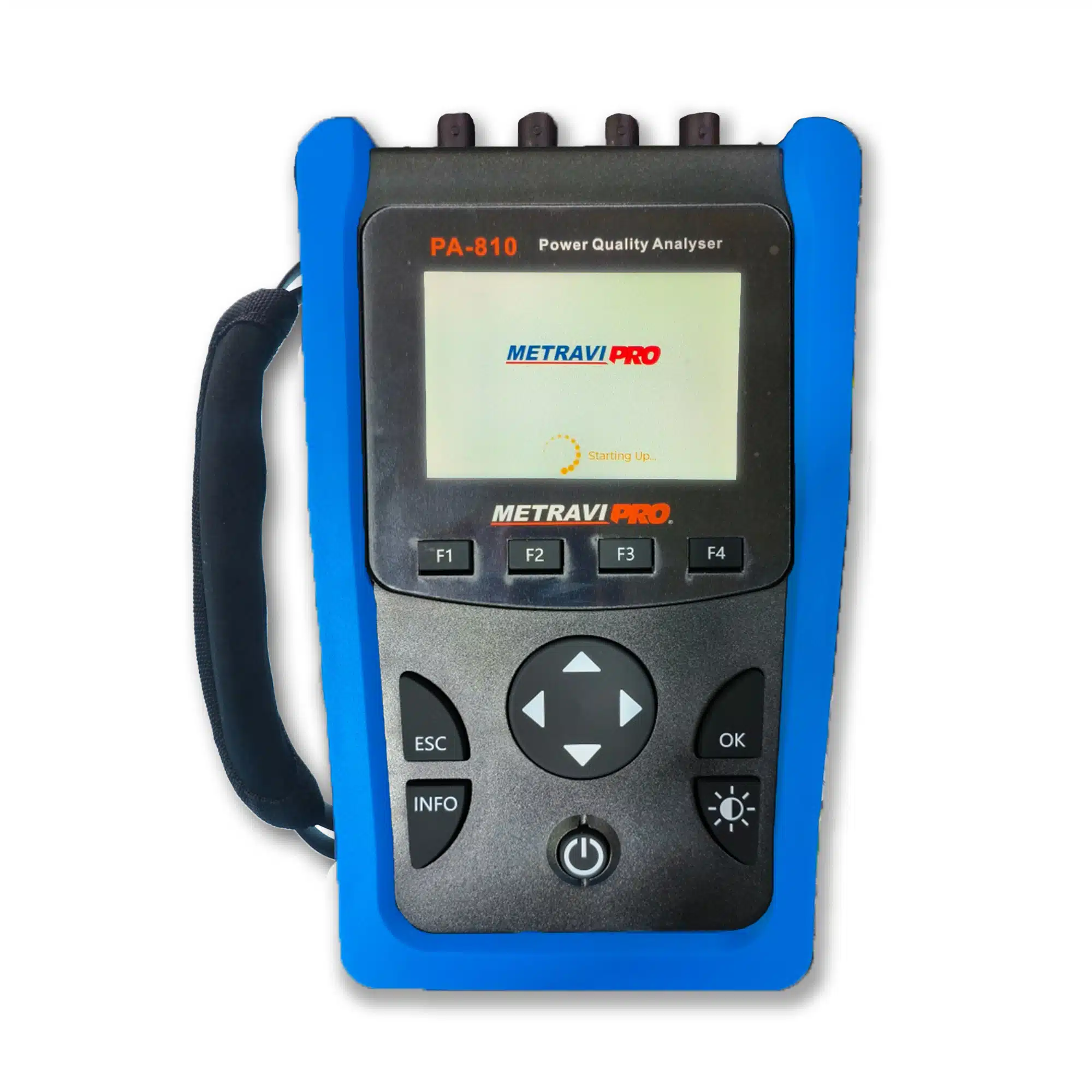

Metravi Portable Power Quality Analyser PRO PA-810 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metravi Portable Power Quality Analyser PRO PA-810

Name: Metravi Portable Power Quality Analyser PRO PA-810
Brand: Metravi
SKU: ADSKX
Price: 1015.02 USD
Availability: InStock



SKU ADSKX Category Digital Analyzers Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	Metravi PRO PA-810 Portable Power Quality Analyser / 5pcs voltage clamp wires with banana plug(2 meters
Display	3.5-inch color TFT
Brand	Metravi
IP Protection	IP20 conforming to IEC60629
Model	PA-810
Sampling rate	8k samples/s
Communication protocol	MODBUS TCP
Input Type	External Rogowski coil/External CT(333mV only)
LED Indication	External Rogowski coil/External CT(333mV only)
Voltage Accuracy	0.2% from 5–600V
Frequency Accuracy	0.01% from 45–65Hz
Operating environment	-25°C–55°C 5–95%RH@50°C(non-condensing)
Dimensions & Weight	21.5×13×6cm 850g(with accessories 2kg)
Voltage Input	Banana plug
Reactive power	IEC62053-21 Class 2
Storage Environment	-40°C–85°C 5–95%RH@50°C(non-condensing)
Current Input	BNC connector
Poles	3PH4W/3PH3W/1PH2W(L-N)/1PH2W(L-L)/1PH3W(L-L-N)
Power Factor Accuracy	±0.005
Active Energy	IEC62053-22 Class 0.5s
Harmonic	51st in the mean time
Allowable Altitude	≤3000m
Supports Extra Sensors	4×BNC terminal 333mV CT/4×BNC terminal 320mV current clamp/4×BNC terminal Rogowski coil
Accuracy Rated Current(3 levels selectable)	600A(0.5% from 6A–720A)/3000A(0.5% from 10A–3600A)/6000A(0.5% from 20A–7200A)
Rogowski Coil Connect Setting	600A/3000A/6000A
Current Clamp	5A 0.5%(100mA–5A)/1%(10mA–100mA)
CTs Connect Setting	Primary 1A–999999A Secondary 0.001mV–707mV
Active/Apparent Power	IEC62053-22 Class 0.5
Reactive Energy	IEC62053-21 Class 2
Primary Current Range	600A 0.5A–720A/3kA 0.5A–3600A/6kA 0.5A–7200A
Measurement Input Range	1/225mV–707mV
Permissible Overload	2V for 10s/h
Transmission Mode	RJ45 port
IP Address	Configurable(default 192.168.1.5)
Port No	502

Key Features

Current: Per phase, neutral, and average of 3 phases
Voltage: L-L, L-N, and average of 3 phases, N-PE
Frequency: 45-65 Hz
Active Power: Total and per phase (signed)
Reactive Power: Total and per phase (signed)
Apparent Power: Total and per phase (signed)
Power Factor (true): Total and per phase; 0.000 to 1 (signed)
Angle: Voltage angle, Current angle
Current Unbalance: Per phase, most unbalanced of 3 phases
Voltage Unbalance: most unbalanced of 3 phases
Data Logging : To MicroSD Card with user settable record interval of 1s to 9999s (default min)
Data Capacity: 16GB memory, store about 2.5K Bytes data each time

Product Description

Metravi PA-810 / PRO PA-810 Power Analyzer is a high-precision electrical measurement instrument designed for comprehensive power quality analysis and energy monitoring in industrial, commercial, and laboratory environments. Equipped with a 3.5-inch TFT color display, this advanced analyzer delivers clear visualization of key parameters including active energy, reactive energy, reactive power, and power factor with high accuracy. With a wide frequency range of 45–65Hz and a fast sampling rate of 8k samples per second, it ensures reliable and real-time data acquisition. The device supports multiple input configurations including external CTs and Rogowski coils, making it versatile for various applications. Built-in 16GB memory allows extensive data logging, while MODBUS TCP communication and RJ45 interface enable seamless integration with monitoring systems. Ideal for energy audits, electrical maintenance, and power system analysis, the Metravi PA-810 ensures efficient, accurate, and dependable performance. Available on EnvMart, these Digital Analyzers are perfect for precise testing and analysis of electrical and electronic parameters. Metravi Digital Analyzers offer high accuracy and reliability, making them ideal for laboratory, industrial, and research applications.
