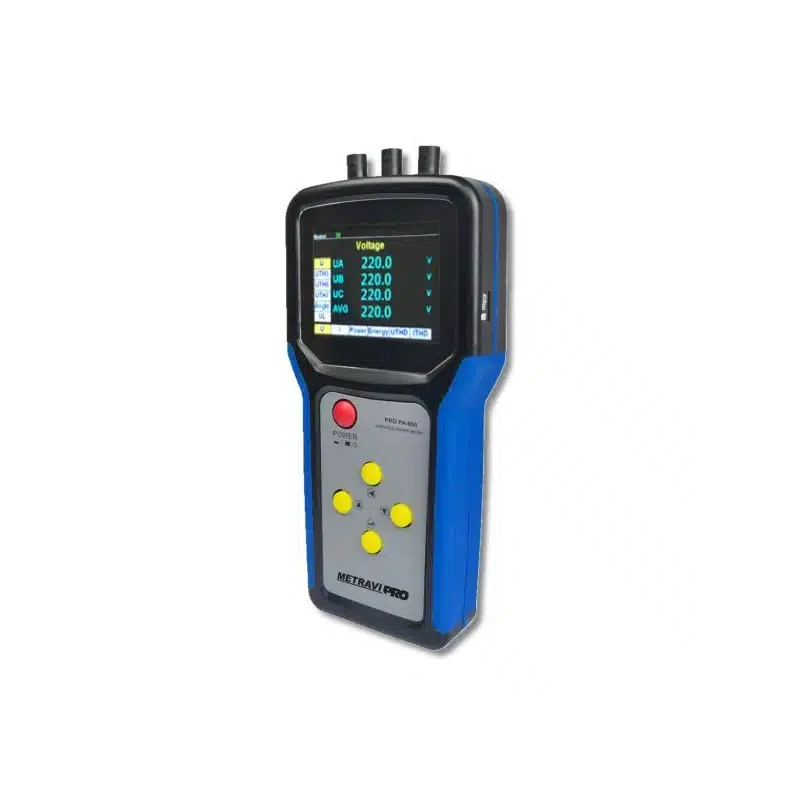

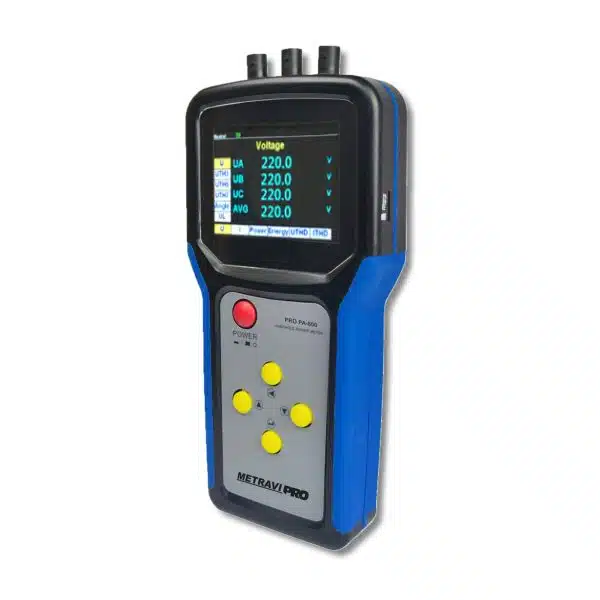

Metravi Portable Power Quality Analyser PRO PA-800
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO PA-800 Portable Power Quality Analyser / 4pcs Voltage Clamp Wires with banana plug (2 meters |
| Voltage | L-L/L-N and 3-phase average 0.2% from 60–500V |
| Display | 3.5-inch TFT backlit |
| Frequency | 0.01% from 45–65Hz |
| Brand | Metravi |
| Power | 4×AA batteries(≈7h working time) or USB Type-C |
| Operating Temperature | -25°C–+55°C |
| Dimensions | 215×100×35mm |
| Storage Temperature | -40°C–+85°C |
| Current | Per phase neutral and 3-phase average |
| Model | PA-800 |
| Storage | 4GB SD card(max 4GB save interval 1min default) |
| Weight | 350g |
| Sampling rate | 8k samples/s |
| Input Type | External Rogowski coil/External CT(333mV only) |
| Angle | Voltage angle/Current angle |
| Reactive power | Total and per phase IEC62053-21 Class2 |
| Terminals | Current input BNC connectors/Voltage input banana plugs/DC power supply DC5.5×2.1 plug |
| Poles | 3PH4W/3PH3W/1PH2W(L-N)/1PH2W(L-L)/1PH3W(L-L-N) |
| Humidity Rating | 5–95%RH@50°C(non-condensing) |
| Active Energy | 0–999.9GWh IEC62053-22 Class0.5s |
| Harmonic | 52nd max |
| Active/Apparent Power | Total and per phase IEC62053-22 Class0.5 |
| Reactive Energy | 0–999.9GVARh IEC62053-21 Class2 |
| Primary Current Range | 0–999.9GVAh |
| Measurement Input Range | 1/225mV–333mV |
| Permissible Overload | 600mV for 10s/h |
| Maximum Altitude | 3000m |
| Power Factor(True) | Total and per phase(0.000–1 signed)±0.005 |
| Current Imbalance | Per phase most unbalanced of 3 phases |
| Voltage Imbalance | Most unbalanced of 3 phases |
| Primary Current Range Input | 100A 0.5A–120A/600A 0.5A–720A/1kA 1A–1200A/3kA 3A–3600A/6kA 6A–7200A |
| Max/Min | View and reset functions with time stamping |
| Compatible Sensors | 3×BNC terminal 333mV CT/3×BNC terminal 320mV current clamp/3×BNC terminal Rogowski coil |
| Recording Interval | 1s–9999s(default 1min) |
| Recording Format | CSV |
Key Features
- Building Energy Load Profiling: Track energy usage over time to understand load distribution.
- Peak Power Usage Determination: Identify when and where peak demand occurs.
- Power Quality Testing: Assess supply quality, voltage dips, and harmonics to ensure compliance with standards.
- Solar PV System Planning: Optimize panel count and placement based on energy usage data.
- Generator Sizing & Planning: Ensure the correct generator capacity for reliable backup power.
- Enhance energy efficiency and reduce wastage.
- Improve Power Factor to lower energy costs.
- Monitor peak-demand (KVA) usage to identify cost-saving measures.
- Prevent phase imbalances and avoid overloading issues.
Product Description
Metravi Portable Power Quality Analyser PRO PA-800 for in-depth analysis of voltage irregularities, harmonics, power factor, and electrical disturbances. It features color TFT display, SD card storage, and real-time data logging. Designed for maintenance teams and audit professionals, the PA-800 helps identify inefficiencies, prevent downtime, and improve energy usage. With robust casing and user-friendly interface, it suits field work in harsh environments. Ideal for comprehensive power quality diagnostics from top supplier.
Available on EnvMart, these Digital Analyzers are perfect for precise testing and analysis of electrical and electronic parameters. Metravi Digital Analyzers offer high accuracy and reliability, making them ideal for laboratory, industrial, and research applications.
