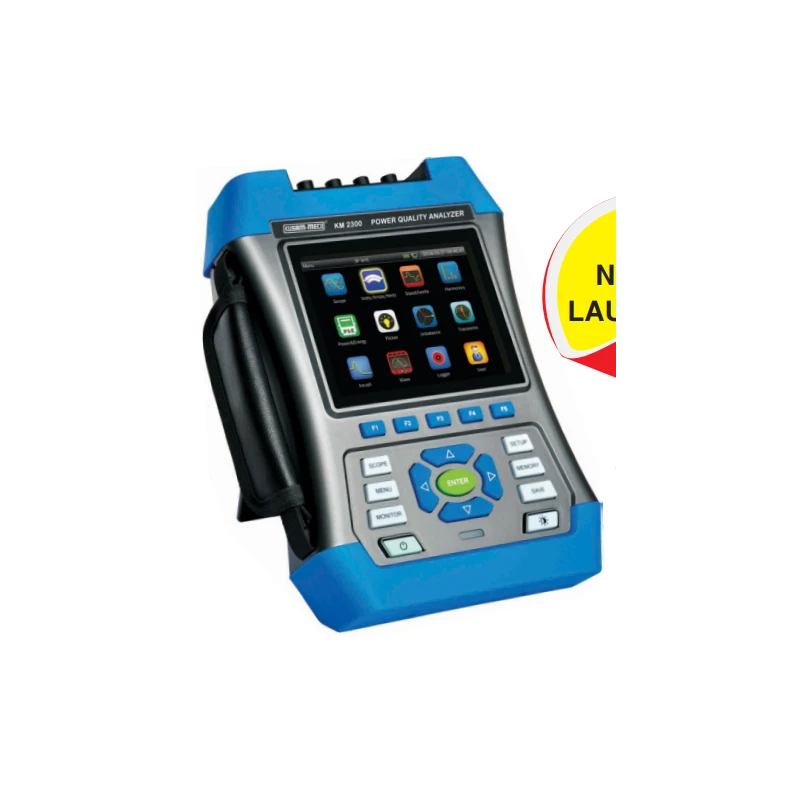

Kusam Meco Multifunction Power & Harmonics Analyzer KM2300
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Kusam Meco KM 2300 Multifunction Power & Harmonics Analyzer / Voltage Test Leads X 5 / Alligator Clips X 5 / Power Adaptor / Power Cord / Hang Strap / Software CD With User Manual / Carrying Case. |
| Resolution | 0.01 0.01Hz 0.1kW |
| Accuracy | ±0.01 ±0.01Hz ±1%±10Counts ±5% |
| Measurement Method | IEC61000-4-30AClass |
| Measurement Range | 42.50~57.50Hz/51.00~69.00Hz/320~480Hz |
| Power Factor Range | 0~1 |
| Brand | Kusam Meco |
| Dimension | 270L×190W×66Hmm |
| Storage Temperature | -10°C~45°C |
| Battery | Lithium7.4V5200mAh |
| Working Temperature | 0°C~45°C |
| Humidity | 90%RH |
| Function | Power Harmonics Analyzer |
| Model | KM2300 |
| Weight | 2kg |
| Battery operating time | Greater Than 8hours(ScreenBrightnessLevel3) |
| Battery Charge Time | 6hours |
| Nominal Frequency | 50Hz/60Hz/400Hz |
| Compliance | IEC61010-1Safety600VCATIV1000VCATIII |
| Flash Memory | 1G |
| Adapter Input | AC100~240V50/60Hz |
| Adapter Output | DC12V2A |
| Power Measurement Range | Max6000MW |
| CosPhiRange | 0~1 |
| Flicker(50/60Hz)Range | 0.00~20.00 |
| USB Host | Yes |
| LAN Interface | Yes |
| Micro SD | 32G |
| Drip&Dust Proof | IP53 |
| Measurement Performance | IEC61000-4-30AClass |
| Power Quality Monitoring | EN50160 |
| FlickerStandard | IEC61000-4-15 |
| HarmonicStandard | IEC61000-4-7 |
| Power Measurement Method | IEEE1459 |
| PollutionDegree | 2 |
| MaxVoltageInput | 600VCATIV1000VCATIII |
| MaxCurrentInput | 10V |
Key Features
- Real-time waveform display for 4 voltage and 4 current channels
- Measures harmonics up to 100th order and inrush current
- EN50160-compliant event detection with dips, swells, and interruptions
- Vector, trend, and bar graph visualization with transient recording
- Built-in 32GB memory, Wi-Fi, and LAN communication for remote data access
Product Description
The Kusam Meco KM2300 Power and Harmonics Analyzer is a comprehensive device for advanced power quality and harmonic analysis. It measures voltage, current, power, energy, harmonics (up to the 100th order), and transient events. Featuring a 5.6-inch TFT LCD and 32GB internal memory, it offers LAN, USB, and Wi-Fi connectivity for data logging. Ideal for engineers monitoring energy efficiency, system stability, and load behavior, it provides high accuracy, intuitive interface, and real-time data display. Designed for utilities, industries, and research, it ensures efficient analysis of complex electrical systems.
Available on EnvMart, these Power Analyzers measure harmonics, power factor, voltage, and current. Kusam Meco Devices deliver detailed energy analysis for industrial and electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Kusam Meco KM2300 has a measurement range of 42.50~57.50Hz, 51.00~69.00Hz, and 320~480Hz.
The accuracy of the Kusam Meco KM2300 is ±1% ±10 counts for power measurements and ±0.01 for frequency measurements.
The Kusam Meco KM2300 can analyze voltage, current, power, energy, harmonics up to the 100th order, and transient events.
The Kusam Meco KM2300 offers LAN, USB, and Wi-Fi connectivity for remote data access and logging.
The battery operating time for the Kusam Meco KM2300 is greater than 8 hours at screen brightness level 3.
The dimensions of the Kusam Meco KM2300 are 270mm in length, 190mm in width, and 66mm in height.
The maximum voltage input for the Kusam Meco KM2300 is 600V, compliant with CAT IV 1000V and CAT III ratings.
The storage temperature range for the Kusam Meco KM2300 is -10°C to 45°C.
The package includes the Kusam Meco KM2300 Multifunction Power & Harmonics Analyzer, voltage test leads, alligator clips, power adaptor, power cord, hang strap, software CD with user manual, and a carrying case.
The humidity rating for the Kusam Meco KM2300 is up to 90% relative humidity.
The Kusam Meco KM2300 complies with IEC61010-1 safety standards and is rated for pollution degree 2.
The power measurement range of the Kusam Meco KM2300 is up to 6000MW.
