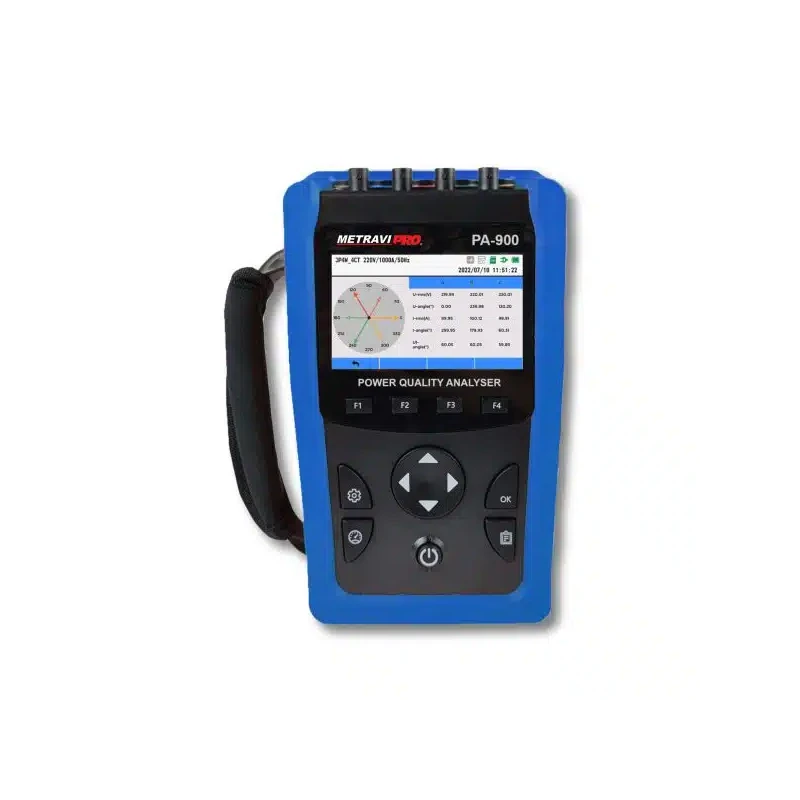

Metravi 3-Phase Power Quality & Harmonics Analyser PRO PA-900
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser / 5pcs voltage clamp wires with banana plug(2 meters |
| Display | 3.97-inch 480×800px IPS |
| Power Factor Range | -1–+1 |
| Brand | Metravi |
| Power | Rechargeable 4000mAh(2×Lithium battery) or 5VDC 2A mains adaptor |
| Interface | RJ45 Ethernet |
| IP Protection | IP30 |
| Model | PA-900 |
| Sampling rate | User-settable |
| Protocol | Modbus-TCP |
| Data Storage | 32GB TF card |
| Frequency Accuracy | ±0.001Hz |
| Operating environment | -20°C–55°C Less than 90%RH |
| Dimensions & Weight | 215×130×60mm 850g(with accessories 2kg) |
| Battery Charging Time | ≥5h |
| Storage Environment | -40°C–70°C Less than 95%RH(non-condensing) |
| Voltage Measurement Range | 0–600VAC |
| Power Factor Accuracy | 0.5% |
| Data Export | U disk export(AT32 system format) |
| Battery Working Time | ≥6h |
| Active Energy Accuracy | 0.5% |
| Frequency Measurement Range | 45–65Hz |
| Allowable Altitude | ≤2km |
| Protection & Certifications | CAT III 600V |
| Voltage Phase Angle | Phase ABC |
| Current Phase Angle | Phase ABC |
| Voltage-Current Phase Angle | Phase ABC |
| Unbalance | Voltage unbalance/Current unbalance |
| Current Demand & Peak Demand | Phase ABC |
| Wiring System | 3P4W 4CT/3P4W 3CT/3P3W 3CT/3P3W 2CT/1P3W/1P2W |
| Current Sensor | Rogowski coil/Voltage-output current clamps |
| Voltage Access | Direct access or via voltage transformer |
| Voltage Input Range | 0–600VAC |
| Current Input Voltage Range | 0–420mVAC |
| Active Power Accuracy | 0.5% |
| Reactive Power Accuracy | 1% |
| Apparent Power Accuracy | 0.5% |
| Reactive Energy Accuracy | 1% |
| Apparent Energy Accuracy | 0.5% |
Key Features
- Support single-phase and three-phase systems. It can measure multiple electrical parameters such as Current, Voltage, Power Factor, Power, Energy and Power Quality parameters including Harmonic, Unbalance degree, Voltage Swell and Voltage Dip, etc.
- In addition to the measurement function, the PA-900 is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory card.
- With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is compatible with various configuration systems and can transmit the electrical parameters collected by the front end to the system data center in real time.
Product Description
Metravi 3-Phase Power Quality & Harmonics Analyser PRO PA-900, a cutting-edge tool for comprehensive power diagnostics. It measures voltage, current, frequency, harmonics, unbalance, transients, and flicker across three phases. Equipped with high-resolution waveform display, large memory, and USB/SD card support, it’s ideal for utility companies, manufacturing plants, and audit professionals. Easy to use and highly portable, this analyser delivers reliable insights to help maintain electrical system health. Export quality
Available on EnvMart, these Digital Analyzers are perfect for precise testing and analysis of electrical and electronic parameters. Metravi Digital Analyzers offer high accuracy and reliability, making them ideal for laboratory, industrial, and research applications.
