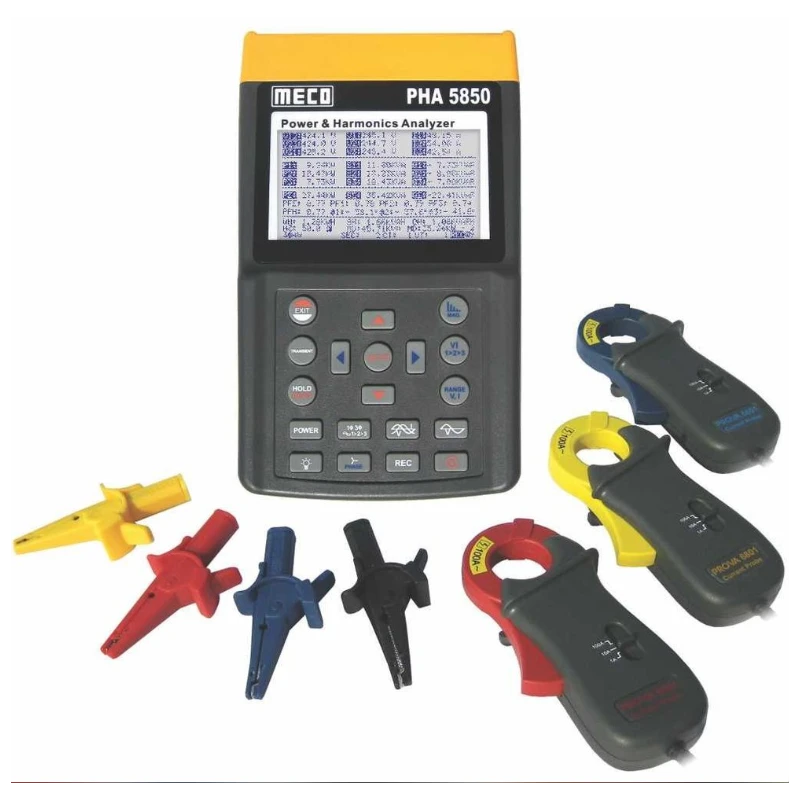

Meco Power & Harmonics Analyzer PHA-5850D
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Voltage Test Leads /Alligator Clips (Voltage) /Carrying Bag /Batteries 1.5V /External DC Adaptor /Software CD /Users Manual /Software Manual /Optical USB Cable /Current Clamps |
| Power Consumption | 140mA (approx) |
| Display | Dot Matrix LCD(240×128) with backlight |
| Operating Condition | -10°C to 50°C Less than 85%RH |
| Brand | Meco |
| Power | Eight×1.5V AA Batteries |
| Dimensions | 257×155×57mm |
| Model | PHA-5850D |
| Weight | 1.16 kg |
| Sampling Time | 2 to 3000 seconds for data logging |
| No. of samples | 1024 samples /period |
| Storage Condition | -20°C to 60°C Less than 75%RH |
| LCD Update Rate | 1 time /second |
| External DC Input | Power supply adapter 12V DC |
Key Features
- Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
- Display of 35 Parameters in one screen (3P4W)
- Programmable CT (1 to 600) and PT (1 to 3000) Ratios
- RMS, PEAK Value & Crest Factor
- True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
- Power Factor, Phase Angle ( ? ) & Energy (WH, KWH, KVARH, PFH)
- Average / Maximum Demand (KW, MW, KVA, MVA) with Programmable Period
- Display of 50 Harmonics in one Screen with Waveform with Peak value (1024 Sample / Period)
- Analysis of total Harmonics Distortion (THD-F)
- Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
- Built-in timer & Calender for Data Logging
- 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
- Optical Isolated RS-232C ~ USB Interface
- Calculated Unbalanced Current through Neutral line
- Graphic Phasor Diagram
- Facility to retrieve Power Data & Harmonics on Meter Screen
- Software for easy download of Recorded Data & Transient events
Product Description
The Meco PHA-5850D is an advanced power analyzer for industrial and commercial systems, capable of measuring three-phase voltage, current, frequency, power factor, THD, and individual harmonics. It supports USB/SD card storage and includes PC connectivity for extended analysis and reporting. With a backlit LCD display and rugged housing, it is suited for fieldwork and continuous monitoring. This model is ideal for maintenance engineers, power quality auditors, and facility managers aiming to reduce energy losses and improve equipment performance.
Available on EnvMart, these Digital Analyzers are designed for accurate analysis of electrical parameters and power quality. Meco Digital Analyzers provide precision, durability, and reliability for industrial, laboratory, and maintenance applications.
