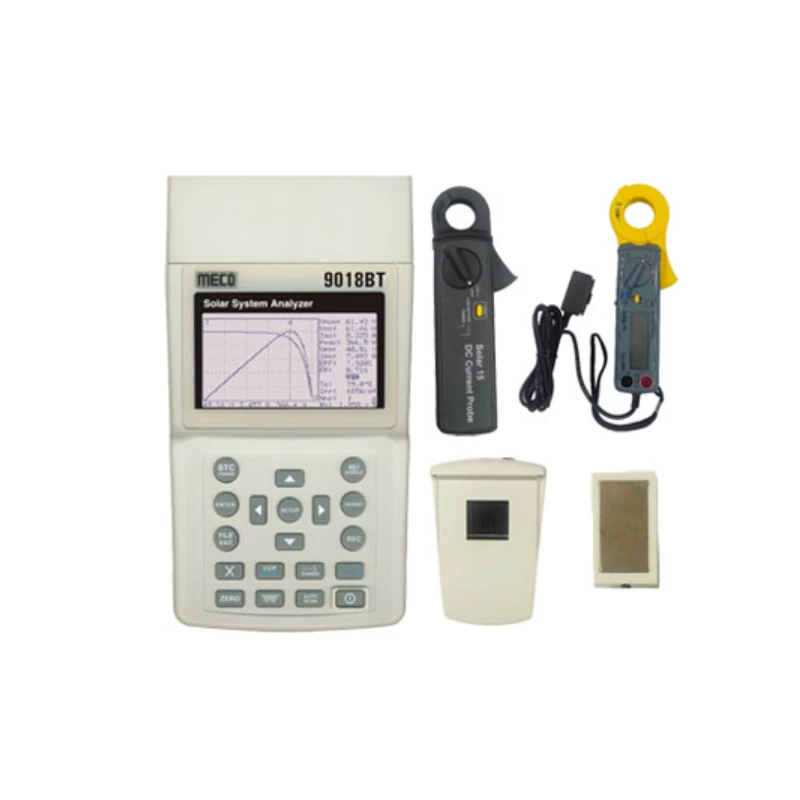

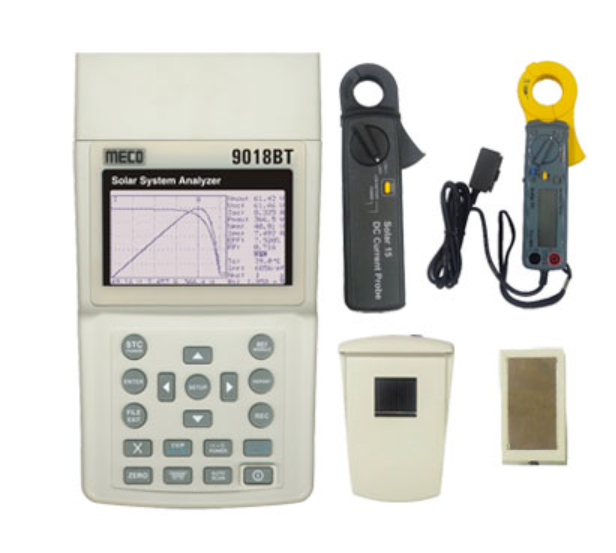

Meco Solar System Analyzer 9018BT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Meco |
| Dimension | 260×158×64mm (approx) |
| Battery Life | 400 times of linear scan (1000V~1V |
| Battery type | Recharge able Lithium Battery (3400 mAh) |
| Model | 9018BT |
| Weight | 0.500 kg |
| Temperature Coefficient | 0.1% of full scale /(Less than 18 or Greater Than 28) |
| Operation Environment | 5~50 Less than 85%RH |
| Storage Environment | -20~60 Less than 75%RH |
| Memory size | 512K Bytes (3980 Mod files or 320 REC files or 3980 PWR files or 3980 IRR files) |
| AC Adaptor | AC100~240V input |
Key Features
- I-V Curve Test for Solar System
- Max. Solar System Power (Pmax) search by Auto-Scan : 1000V, 12A (12000W Capability)
- The Analyzer and the Remote Solar Detector is connected by Bluetooth Wireless Communication (Bluetooth 2.1 + EDR Class 1)
- The Remote Solar Detector is Moisture-Proof.
- Intelligent Test Logic with no personnel attendance required in the field.
- Max. Voltage (Vpm) at Pmax, Max. Current (Ipm) at Pmax
- Voltage at Open Circuit (Voc), Current at Short Circuit (Isc)
- Efficiency (%) Calculation of Solar System
- Temperature Measurement of Solar Panels
- Irradiance Measurement of Sun Light
- Series Resistance (Rs) Calculation of Solar Panels
- I-V Curve with Cursor to Display each Data Point
- With Data Logging / Open Function, the I-V Curves of Solar System can be analysed / recorded for a period of time (e.g. 60 min.)
- Conversion of I-V Curve under OPC to data under Standard Test Condition (STC) based upon IEC Standard
- Built-in Calendar Clock
Product Description
The Meco 9018BT Solar System Analyzer integrates measurement functions for solar PV inspection, including open‑circuit voltage (Voc), short‑circuit current (Isc), insulation resistance, earth resistance, module string test and data‑logging via Bluetooth. With mobile app compatibility, it empowers installers and PV technicians to assess module performance, detect hotspots, string mismatches and degradation in real time. Its rugged design, rugged test leads and ability to withstand the field environment make it a valuable tool for solar commissioning, maintenance and performance audits in residential, commercial and utility solar installations.
Available on EnvMart, these Solar Monitoring System are designed for efficient monitoring of solar energy generation and performance. Meco Solar Monitoring System provide accuracy, reliability, and advanced data tracking for photovoltaic and industrial solar applications.
