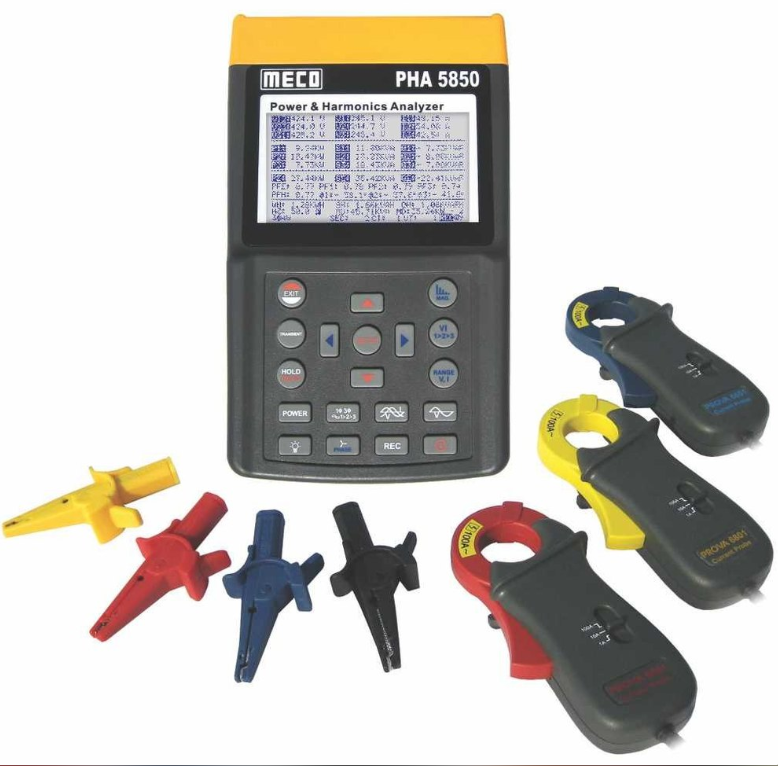

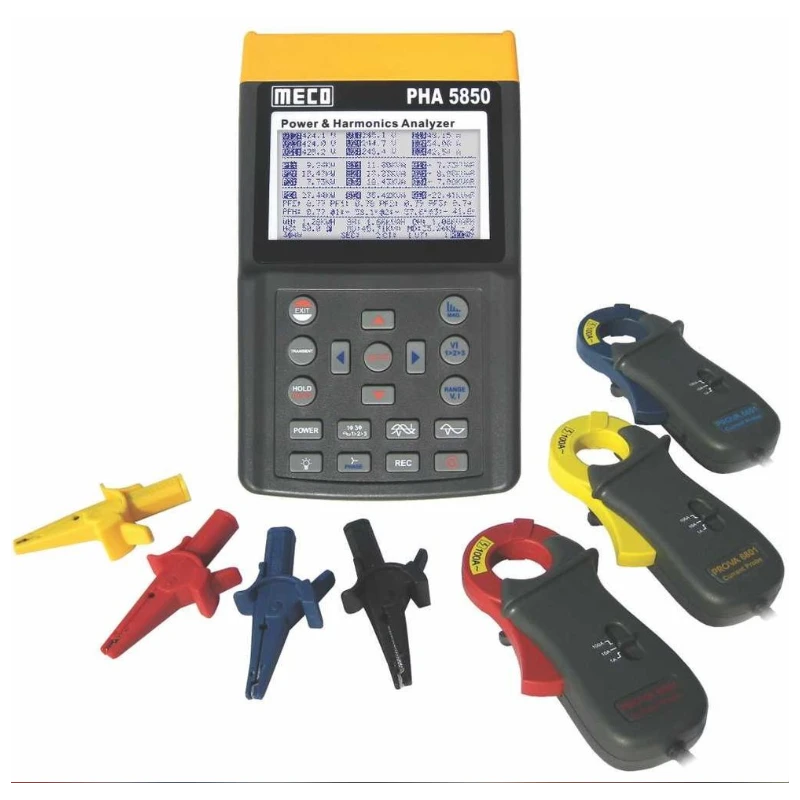

Meco Power & Harmonics Analyzer PHA-5850A
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Meco PHA 5850A /Voltage Test Leads /Alligator Clips (Voltage) /Carrying Bag /Batteries 1.5V /External DC Adaptor /Software CD /Users Manual /Software Manual /Optical USB Cable /Current Clamps |
| Power Consumption | 140mA (approx) |
| Display | Dot Matrix LCD (240×128) with backlight |
| Operating Condition | -10°C to 50°C Less than 85%RH |
| Brand | Meco |
| Power | Eight×1.5V AA Batteries |
| Dimensions | 257×155×57mm |
| Model | PHA-5850A |
| Weight | 1.16 kg |
| Sampling Time | 2 to 3000 seconds for data logging |
| No. of samples | 1024 samples /period |
| Storage Condition | -20°C to 60°C Less than 75%RH |
| LCD Update Rate | 1 time /second |
| External DC Input | Power supply adapter 12V DC |
Key Features
- Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
- Display of 35 Parameters in one screen (3P4W)
- Programmable CT (1 to 600) and PT (1 to 3000) Ratios
- RMS, PEAK Value & Crest Factor
- True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
- Power Factor, Phase Angle ( ? ) & Energy (WH, KWH, KVARH, PFH)
- Average / Maximum Demand (KW, MW, KVA, MVA) with Programmable Period
- Display of 50 Harmonics in one Screen with Waveform with Peak value (1024 Sample / Period)
- Analysis of total Harmonics Distortion (THD-F)
- Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
- Built-in timer & Calender for Data Logging
- 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
- Optical Isolated RS-232C ~ USB Interface
- Calculated Unbalanced Current through Neutral line
- Graphic Phasor Diagram
- Facility to retrieve Power Data & Harmonics on Meter Screen
- Software for easy download of Recorded Data & Transient events
Product Description
The Meco PHA-5850A is a sophisticated power and harmonics analyzer designed for advanced monitoring and analysis of electrical systems. It measures three-phase power parameters, voltage, current, energy consumption, and detailed harmonic data. With a color display, data logging, and real-time waveform analysis, it supports preventive maintenance and fault diagnosis in substations, manufacturing plants, and commercial buildings. It provides graphical representation of harmonics and supports USB/PC connectivity, ensuring comprehensive power quality assessments for engineers and auditors.
Available on EnvMart, these Digital Analyzers are designed for accurate analysis of electrical parameters and power quality. Meco Digital Analyzers provide precision, durability, and reliability for industrial, laboratory, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Meco PHA-5850A features analysis of multiple systems (3P4W, 3P3W, 1P2W, 1P3W), displays 35 parameters on one screen, and includes programmable CT and PT ratios. It captures 28 transient events, offers a built-in timer for data logging, and has a memory capacity of 512K with programmable intervals.
The operating condition for the Meco PHA-5850A is from -10°C to 50°C with less than 85% relative humidity.
The Meco PHA-5850A is equipped with a Dot Matrix LCD display (240×128) that includes a backlight for improved visibility.
The Meco PHA-5850A has a power consumption of approximately 140mA.
The dimensions of the Meco PHA-5850A are 257×155×57 mm, and it weighs 1.16 kg.
The storage condition for the Meco PHA-5850A is between -20°C to 60°C with less than 75% relative humidity.
The Meco PHA-5850A allows for a sampling time of 2 to 3000 seconds for data logging.
The package contents for the Meco PHA-5850A include voltage test leads, alligator clips, a carrying bag, batteries, an external DC adaptor, software CD, user manuals, and optical USB cable.
The Meco PHA-5850A operates on eight 1.5V AA batteries or can be powered via an external 12V DC power supply adapter.
The Meco PHA-5850A features a built-in timer and calendar for data logging, with a memory capacity of 512K that can store up to 17,000 records for 3P4W systems.
The Meco PHA-5850A can analyze 3-phase 4-wire (3P4W), 3-phase 3-wire (3P3W), 1-phase 2-wire (1P2W), and 1-phase 3-wire (1P3W) systems.
The Meco PHA-5850A can process up to 1024 samples per period.
