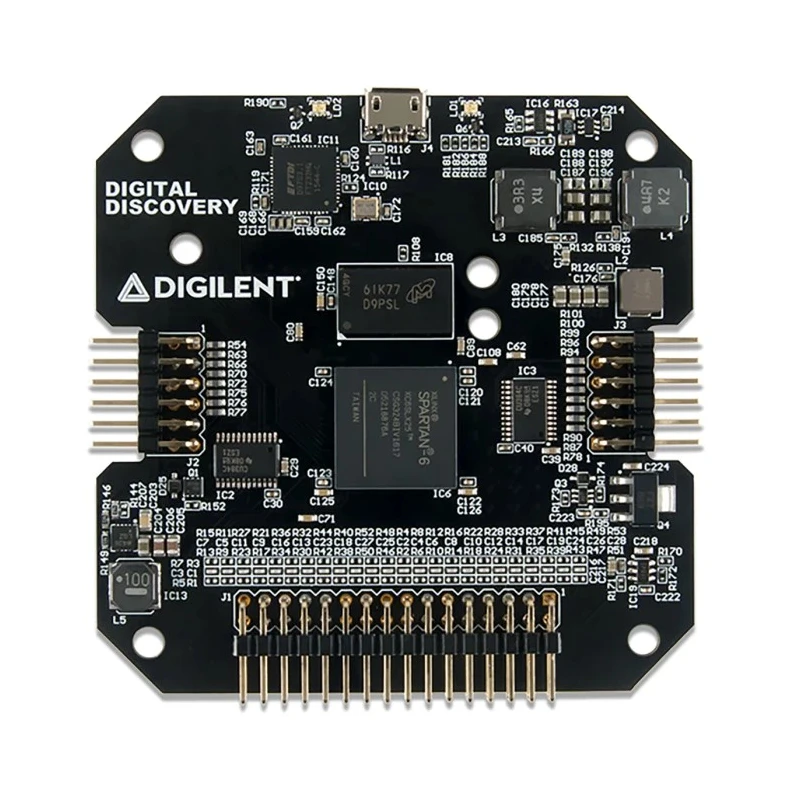

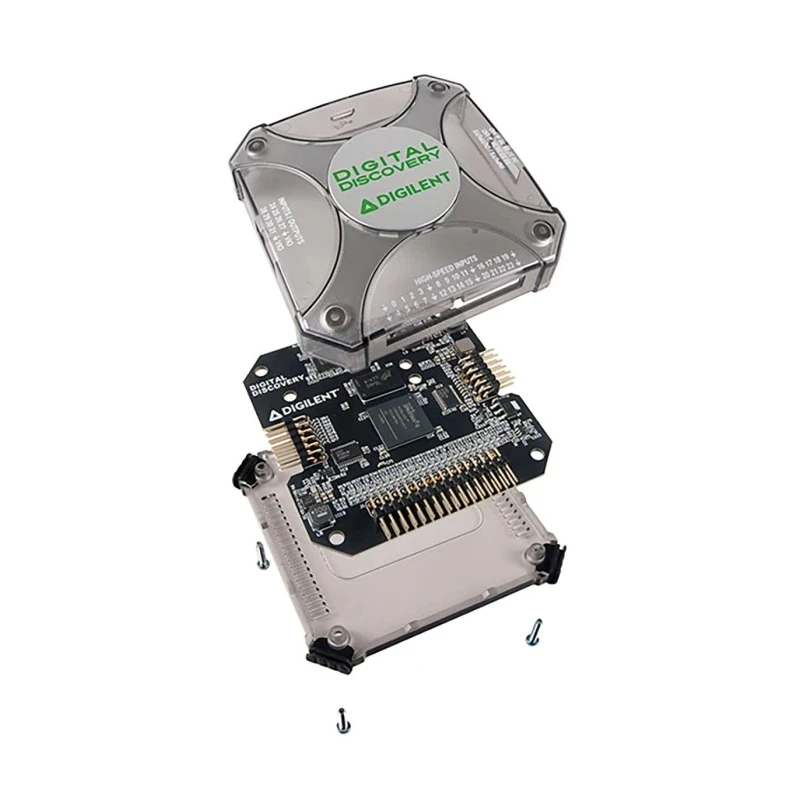

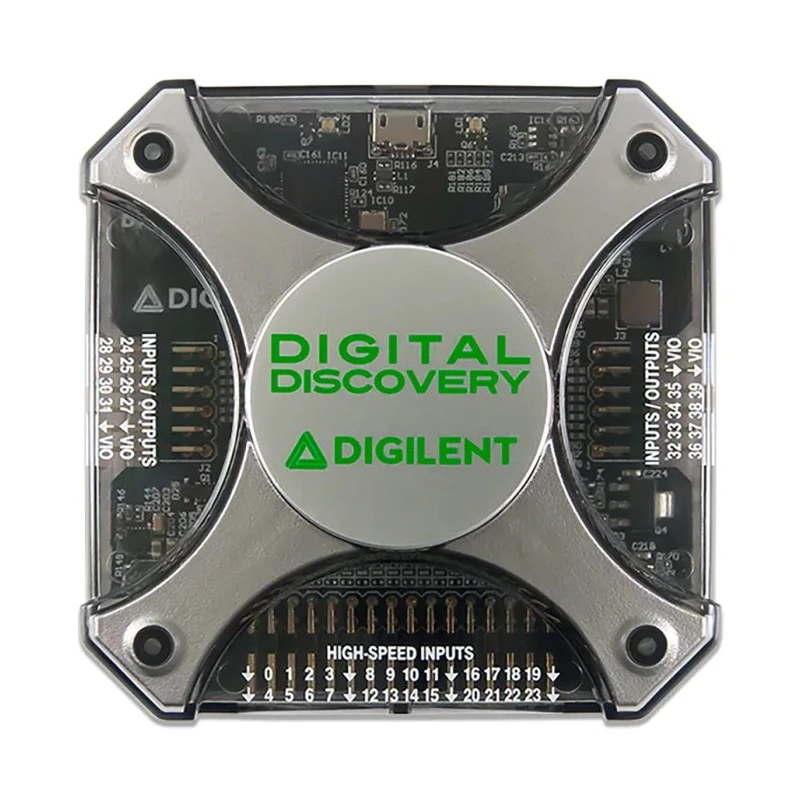

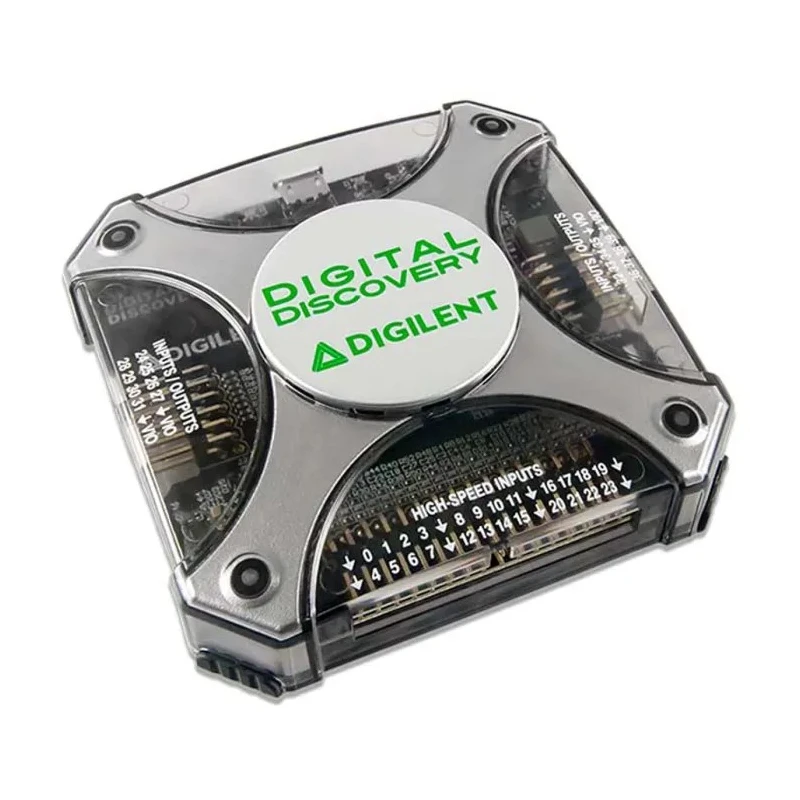

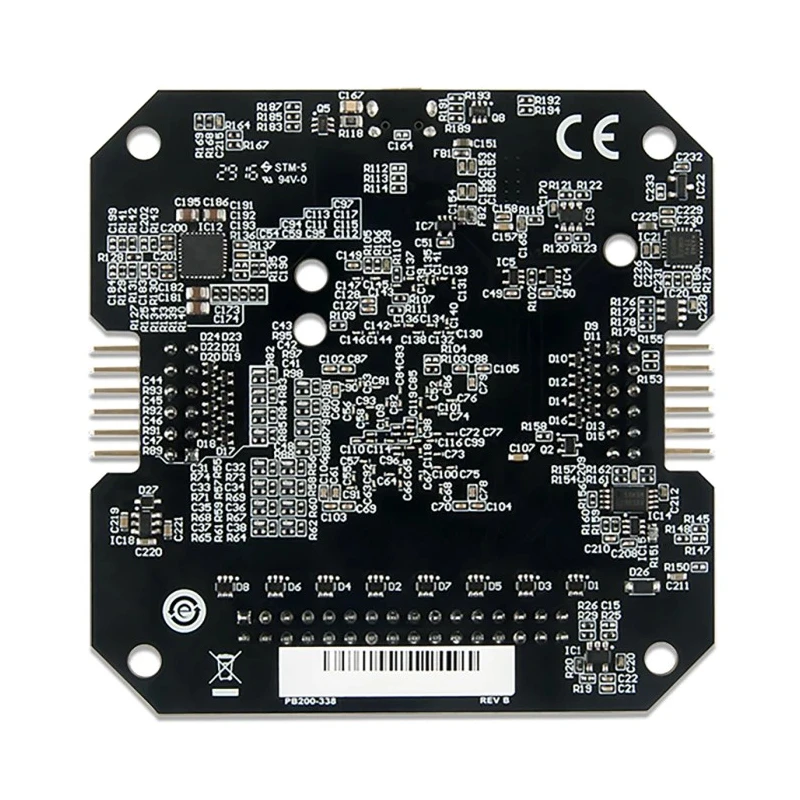

Digilent Digital Discovery USB Logic Analyser 8 Channels 800Msps, 16 Channels 400Msps, 32 Channels 200Msps 410-338
Specifications
| Country of Origin | India |
|---|---|
| Brand | Digilent |
| Model | 410-338 |
| Sub Type | Programmer |
| Interfaces | USB communication with host PC via micro-AB connector |
| Kit Type | Digital Discovery USB Logic Analyser |
| Kit Contents | USB Cable |
| For Use With | Logic Analyser |
| Digital Logic Analyser | 8 channels @ 800Msps, 16 channels @ 400Msps or 32 channels @ 200Msps |
| Digital Bus Analyser | SPI, I²C, UART and Parallel |
Key Features
- Provides 8 channels at 800Msps, 16 channels at 400Msps, or 32 channels at 200Msps sampling rates.
- Includes a 16-channel 100Msps Pattern Generator for signal simulation.
- Features a programmable power supply ranging from +1.2 to +3.3Vdc at 100mA for logic-level consistency.
- Supports multiple digital bus analysers including SPI, I²C, UART, and Parallel protocols.
- USB communication via micro-AB connector compatible with Windows, MacOS, and Linux platforms.
- Comes with free WaveForms software for signal visualization and debugging.
- Equipped with 2 digital trigger signals for linking with other instruments.

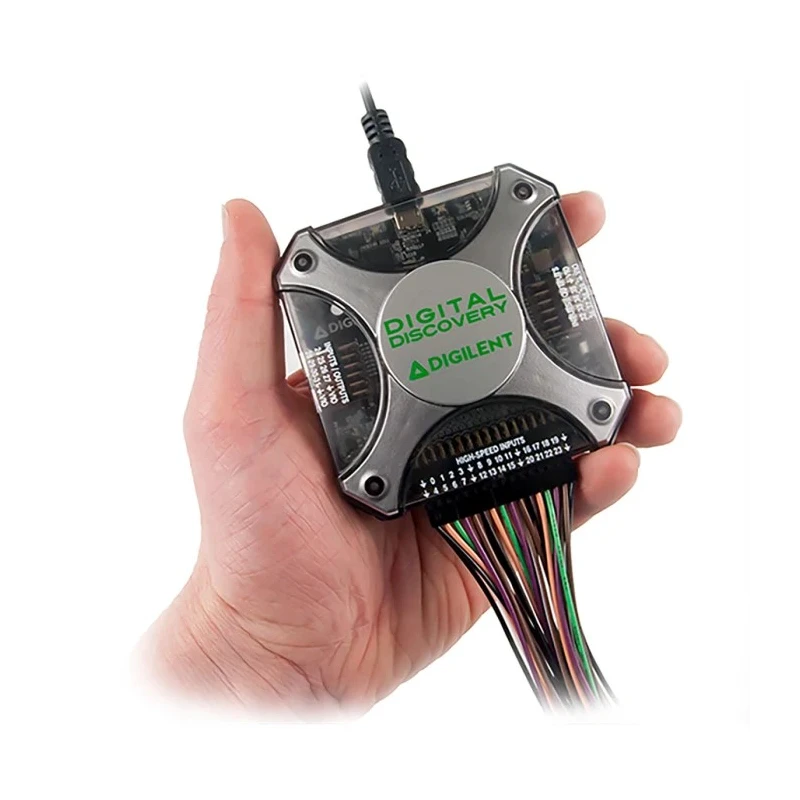

- Compact, portable design suitable for diverse environments and applications.
Product Description
Digilent 410-338 Digital Discovery USB Logic Analyser is an advanced logic analyser and pattern generating instrument designed to optimize signal channels with high speed and portability. It facilitates debugging, visualization, and simulation of digital signals in embedded systems.
The device offers flexible sampling rates with 8 channels at 800Msps, 16 channels at 400Msps, or 32 channels at 200Msps, paired with a 16-channel 100Msps Pattern Generator to support a variety of applications.
The integrated programmable power supply delivers +1.2 to +3.3 Vdc at 100mA to ensure logical coherence with the connected circuit. For enhanced connectivity, it provides USB communication through a micro-AB connector and is supported by the free WaveForms software across Windows, MacOS, and Linux platforms.
Additional features include digital bus analysers for SPI, I²C, UART, and Parallel interfaces, along with 2 digital trigger signals enabling instrument linking for more complex measurements. The compact and rugged design allows usage in diverse industrial, laboratory, and research environments requiring high precision digital signal analysis.

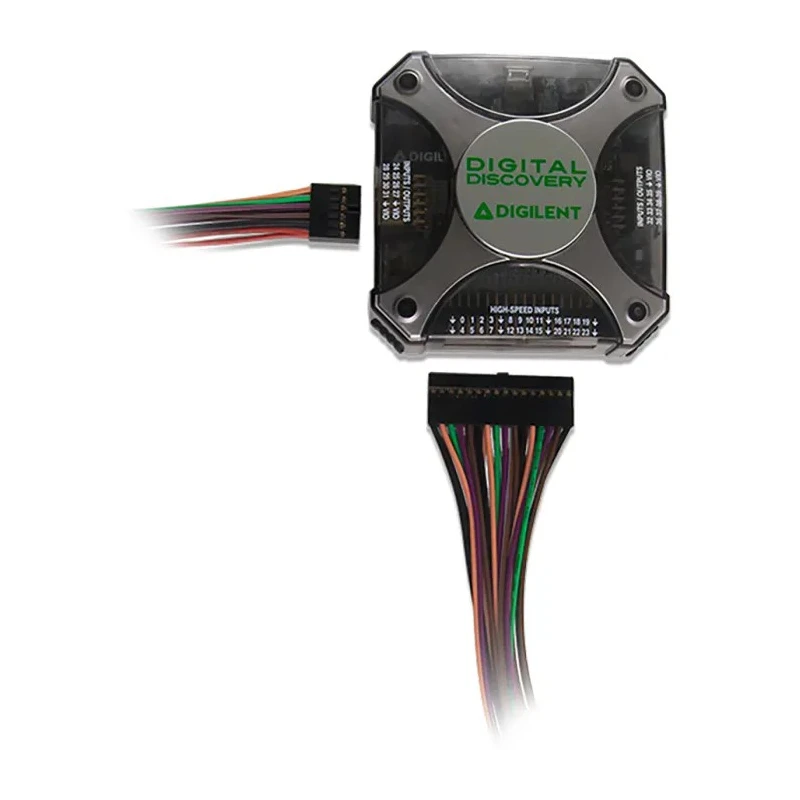

Kit contents include the Digital Discovery Logic Analyser, 2 sets of 6-wire flywire assemblies, 2 sets of 16-wire flywire assemblies, and a USB-A to micro-B cable. It is recommended to use a High-Speed Adapter (Digilent part no. 410-349) for sampling rates exceeding 200Msps.
Provides 8 channels at 800Msps, 16 channels at 400Msps, or 32 channels at 200Msps sampling rates. Includes a 16-channel 100Msps Pattern Generator. Programmable power supply from +1.2 to +3.3 Vdc at 100mA. Supports SPI, I²C, UART, and Parallel bus analysis.
USB communication via micro-AB connector, compatible with major OS. Free WaveForms software for signal processing and visualization. Compact, portable design for varied industrial and laboratory applications. Includes comprehensive kit with cables and flywire assemblies.
Explore other high-quality measuring and testing instruments in the EnvMart Industrial Machines & Instruments category.
Explore more products in our Digital Analyzers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides sampling rates of 800Msps for 8 channels, 400Msps for 16 channels, and 200Msps for 32 channels.
It supports multiple digital bus analysers including SPI, I²C, UART, and Parallel protocols.
The integrated programmable power supply delivers voltages ranging from +1.2 to +3.3 Vdc at 100mA.
It features USB communication via a micro-AB connector, compatible with Windows, MacOS, and Linux platforms.
The kit includes the Digital Discovery Logic Analyser, 2 sets of 6-wire flywire assemblies, 2 sets of 16-wire flywire assemblies, and a USB-A to micro-B cable.
The 16-channel pattern generator operates at 100Msps and is used for signal simulation in various applications.
It is recommended to use a High-Speed Adapter (Digilent part no. 410-349) for sampling rates exceeding 200Msps.
It is suitable for debugging, visualization, and simulation of digital signals in embedded systems across industrial and laboratory environments.
The specific weight and dimensions are not provided in the available data.
This model is equipped with 2 digital trigger signals for linking with other instruments.
It comes with free WaveForms software for signal visualization and debugging.
The country of origin for this product is India.
