Digilent Pmod CAN 2.0B Controller Development Kit with Integrated Microchip MCP25625 Transceiver SPI Interface 10MHz MCP25625

Digilent MCP25625 Pmod CAN 2.0B Controller Development Kit is a compact communication and wireless development tool designed for robust CAN bus interfacing. Featuring the integrated Microchip MCP25625 transceiver, this module supports high-speed CAN communication compliant with CAN 2.0B protocol. The module's SPI interface operates up to 10 MHz, allowing for rapid and reliable data exchange between connected embedded systems and automotive or industrial devices.

The device utilizes balanced differential signaling to eliminate most electromagnetic interference and offers high noise immunity, making it suitable for automotive and embedded applications requiring stable CAN communication over 12 V or 24 V power systems. Its compact PCB design (3.6 cm x 4.6 cm) facilitates flexible implementations in space-constrained environments.

The development kit includes a standard DB9 connector to ensure secure connectivity, three transmit buffers equipped with prioritization and abort capabilities, and two receive buffers. With six filters and two masks supporting optional filtering on the first two data bytes, it provides advanced message filtering to manage network traffic efficiently. An interrupt output pin enhances integration possibilities with external controllers.

This product meets key certifications including ISO-11898-1, ISO-11898-2, ISO-11898-5 CAN standards as well as ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic discharge protection, ensuring reliable operation under industrial conditions.

Applicable in automotive and embedded systems, this kit supports CAN bus communication, making it ideal for engineers and developers working on integrated control, diagnostics, and communication systems. Its robust features and proven certifications make it a trusted choice for advanced development and prototyping environments.

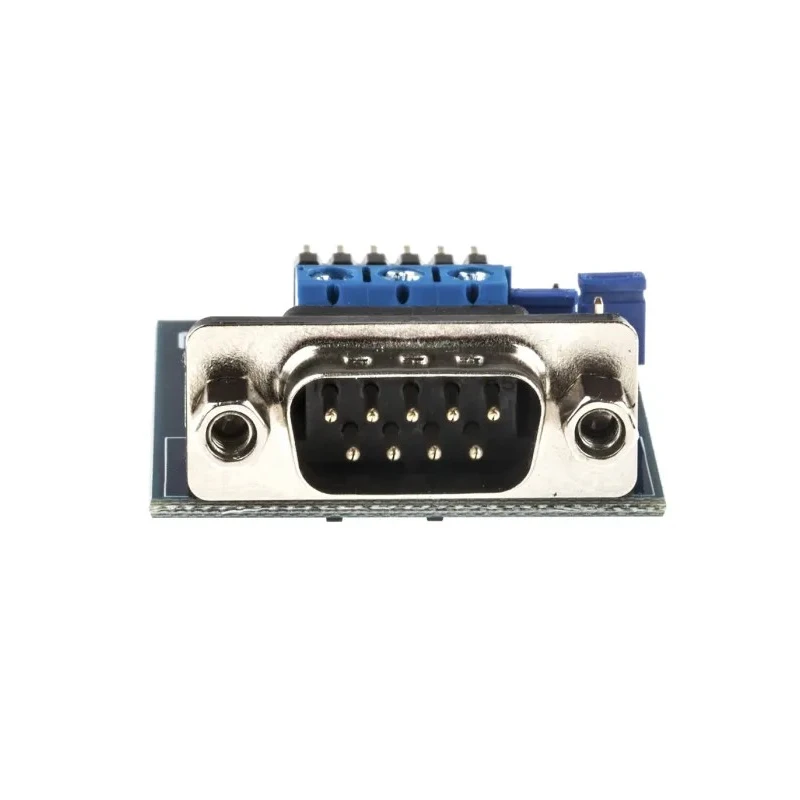

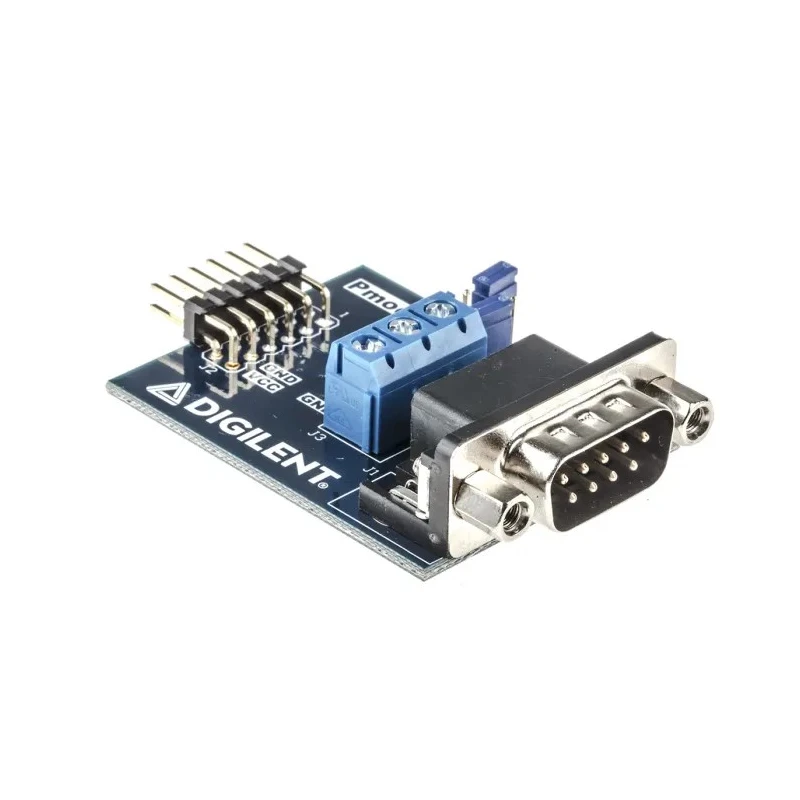

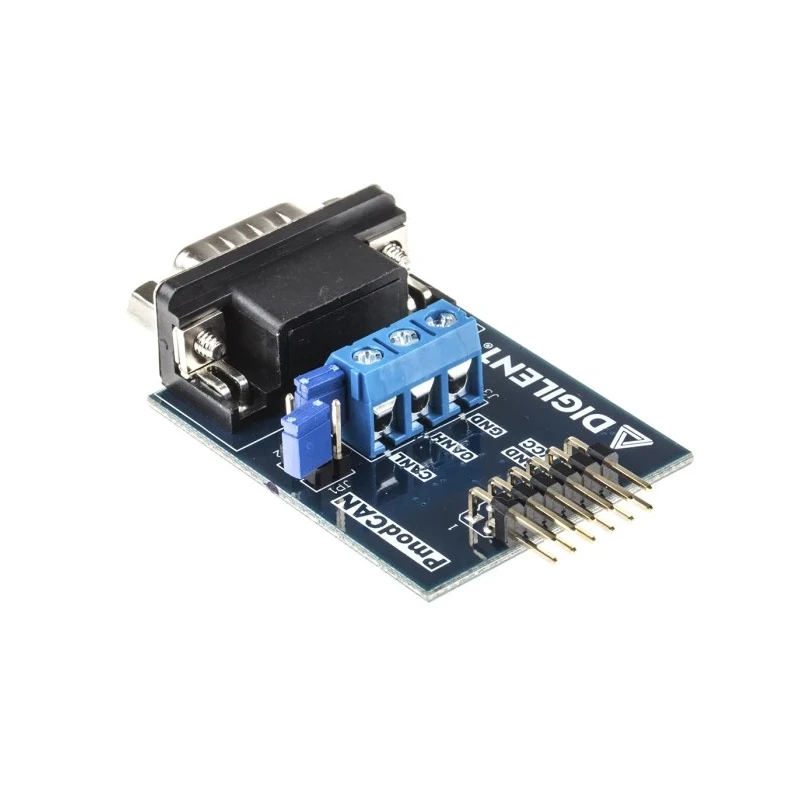

Set contains one Digilent Pmod CAN 2.0B Controller module with integrated MCP25625 transceiver and standard DB9 connector for CAN bus interfacing. Explore our wide range of Development Kits and communication tools at EnvMart for professional embedded and automotive system design.

Equipped with Microchip MCP25625 integrated transceiver for CAN 2.0B protocol. Supports SPI interface with maximum frequency of 10 MHz for rapid data transfer. Compact PCB dimensions measuring 1.4 in x 1.8 in (3.6 cm x 4.6 cm) suitable for flexible embedded system design.

Includes standard DB9 connector for secure physical CAN network connection. Compatible with 12 V and 24 V automotive and industrial systems for versatile applications. Offers 3 transmit buffers with prioritization and abort features ensuring reliable message delivery.

Utilizes 2 receive buffers and supports 6 filters plus 2 masks with optional data byte filtering for enhanced message filtering capability. Interrupt output pin available for efficient system integration. Provides balanced differential signaling to minimize electromagnetic interference and maximize noise immunity.

Certified to ISO-11898-1, ISO-11898-2, ISO-11898-5, ANSI/ESD S20.20, and BS EN 61340-5-1 standards for quality and safety compliance.
