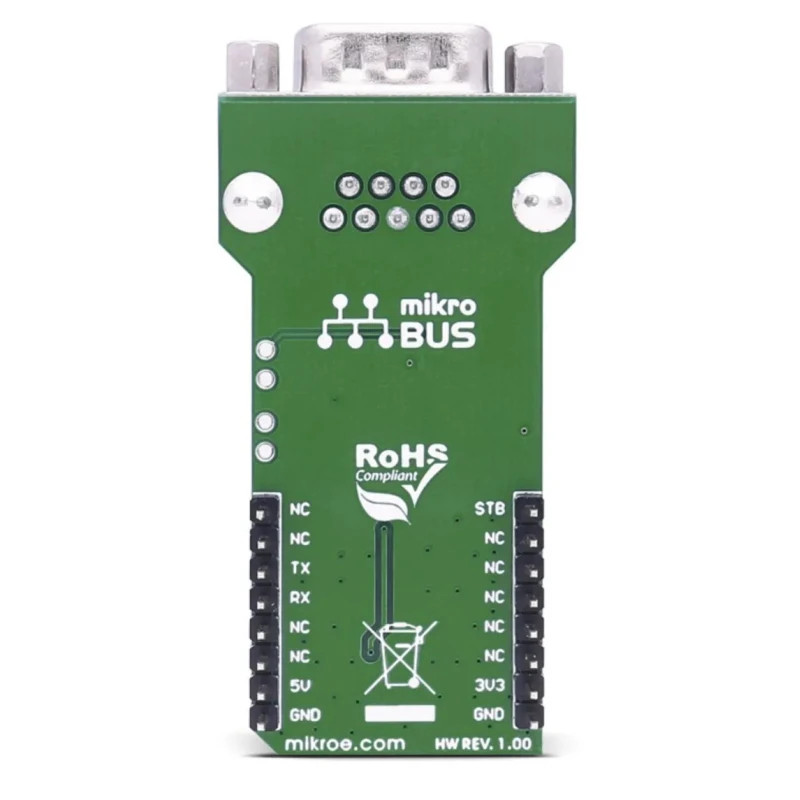

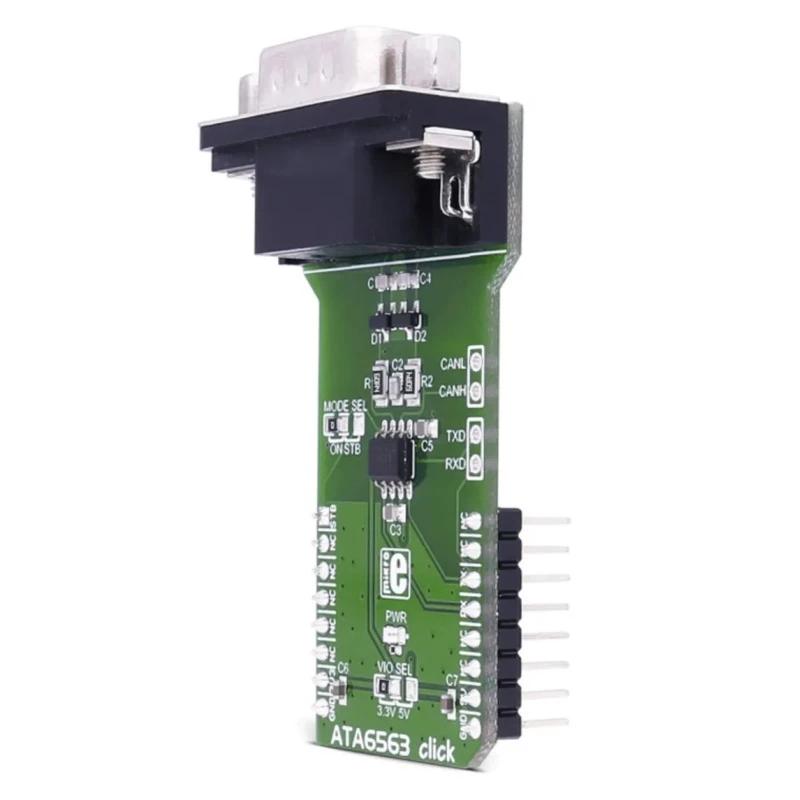

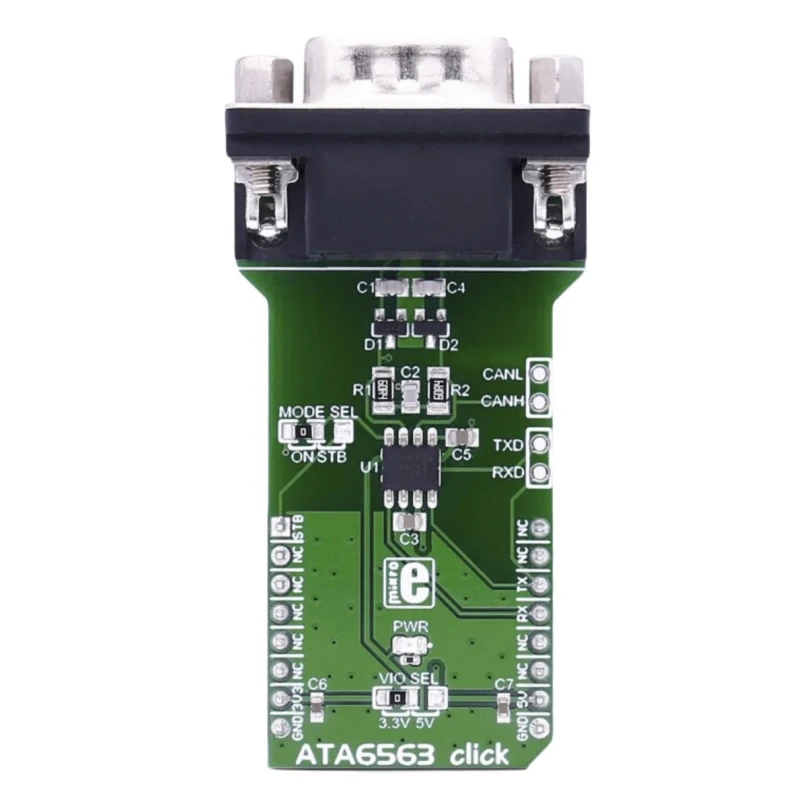

MikroElektronika ATA6563 Click ATA6562/ATA6563 Development Kit for UART MIKROE-2334
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-2334 |
| Technology | CAN Transceiver |
| Interface Type | CAN |
| For Use With | UART |
| Kit Classification | Development Kit |
| Featured Device | ATA6562/ATA6563 |
| Kit Name | ATA6563 Click |
| Standards/ApprovalsISO 11898-2, SAE J2962-2, ISO 11898-2 | 2016, ISO 11898-5, AEC-Q100 |
Key Features
- The kit features the ATA6563 high-speed CAN transceiver suitable for 5V power supply operation.
- Logic level selection is possible via the VIO SEL jumper between 3.3V and 5V.
- It interfaces with microcontrollers using UART communication for reliable data exchange.
- The mikroBUS™ AN pin adds additional functionality for extended applications.
- This development kit complies with ISO, SAE, and AEC-Q100 CAN transceiver standards.
- It is ideal for embedded CAN bus communication development and testing.
Product Description
MikroElektronika MIKROE-2334 ATA6563 Click ATA6562/ATA6563 Development Kit for UART is a specialized communication and wireless development tool designed for high-speed Controller Area Network (CAN) applications. It incorporates the ATA6563 CAN transceiver, facilitating robust CAN communication on a 5V power supply platform.
The kit offers flexible logic level management, allowing selection between 3.3V and 5V logic levels through the VIO SEL jumper, ensuring compatibility with varied microcontroller platforms. Communication with the target microcontroller is achieved via the UART interface, making this kit advantageous for embedded systems requiring UART-CAN conversion.
The addition of the mikroBUS™ AN pin enables supplementary signal functionalities, expanding application possibilities in automotive, industrial automation, and embedded CAN networking fields.
This development tool adheres to multiple stringent industry standards including ISO 11898-2, SAE J2962-2, ISO 11898-2:2016, ISO 11898-5, and the automotive grade AEC-Q100 specification. Such compliance guarantees reliable performance and interoperability within CAN networks.
Applications include embedded development, prototyping, and testing of CAN communication stacks, especially where UART interfacing is preferred. It serves well in educational, industrial, and automotive electronic design environments.
The kit features the ATA6563 high-speed CAN transceiver suitable for 5V operation. Selectable logic voltage levels (3.3V/5V) via VIO SEL jumper. UART interface for straightforward microcontroller communication. mikroBUS™ AN pin supports additional functionality.
Compliant with ISO and SAE CAN transceiver standards. Supports automotive grade AEC-Q100 for enhanced reliability. Ideal for embedded systems and industrial CAN bus development. Explore more development tools and communication modules in the Communication & Wireless Development Tools category at EnvMart for your embedded design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The kit operates on a 5V power supply, suitable for high-speed CAN communication.
The kit complies with ISO 11898-2, SAE J2962-2, ISO 11898-2:2016, ISO 11898-5, and the automotive grade AEC-Q100 specification.
The main featured device in this kit is the ATA6563 CAN transceiver, designed for high-speed CAN applications.
The mikroBUS™ AN pin adds supplementary signal functionalities, expanding the application possibilities of the kit.
It is suitable for embedded development, prototyping, and testing of CAN communication stacks, particularly in automotive and industrial automation environments.
The country of origin for this development kit is India.
This kit utilizes CAN transceiver technology, specifically designed for high-speed communication.
Yes, it is designed for embedded CAN bus communication development and testing, making it advantageous for various embedded systems.
The model number of this development kit is MIKROE-2334.
This product is classified as a development kit, specifically for communication and wireless development tools.
