| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 5.2mm |
| Length | 54.9mm |
| Model | 1N4001RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.1V |
| Maximum Forward Current If | 1A |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 50V |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |

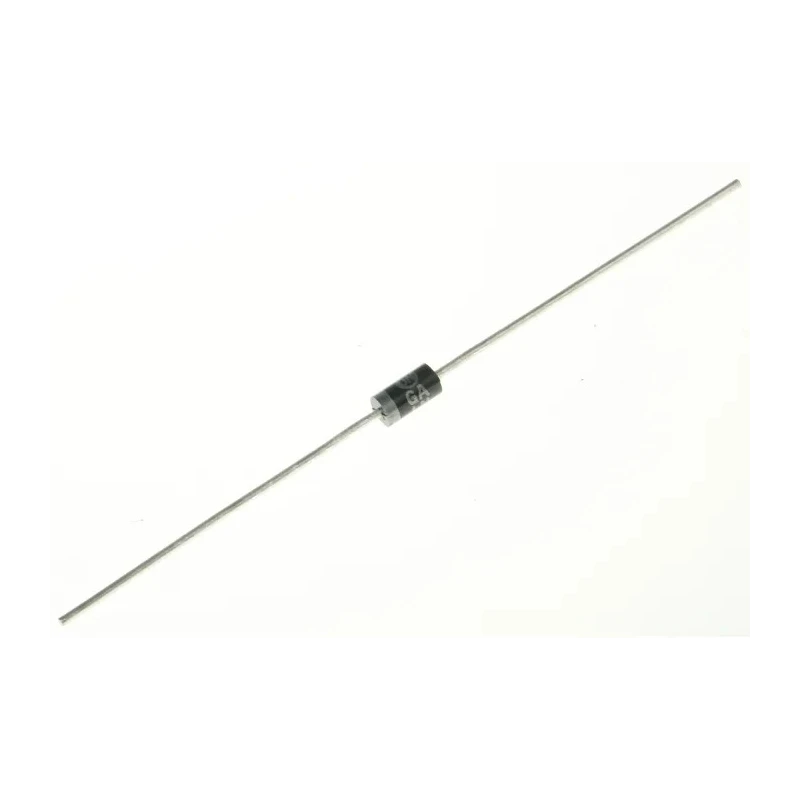

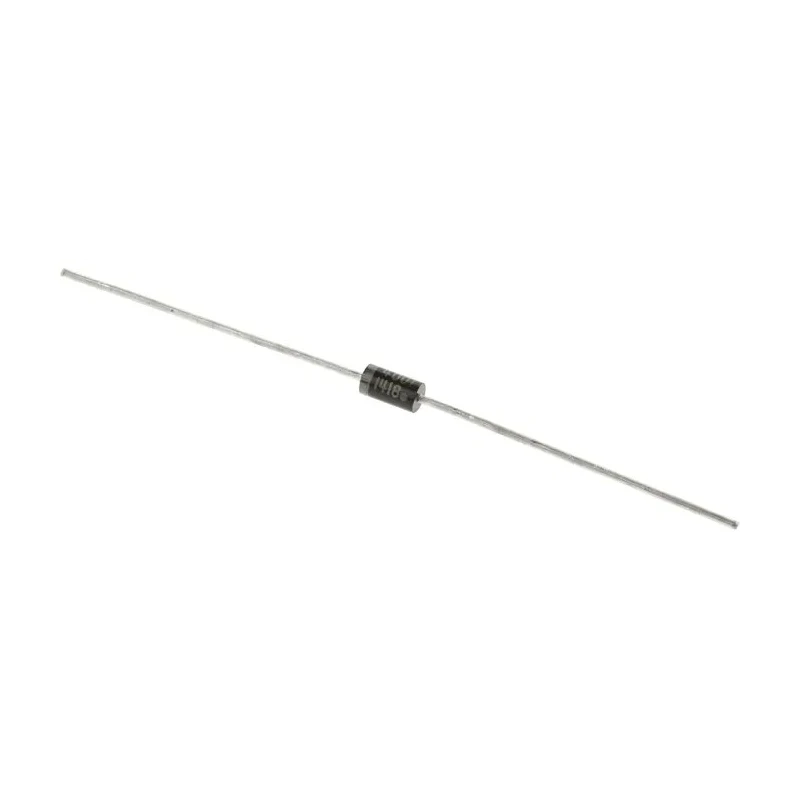

onsemi 1N4001RLG Silicon Junction Switching Diode is a high-quality single diode designed for efficient general-purpose low power applications. It features a 1 Amp forward current rating and a maximum peak reverse repetitive voltage of 50 Volts.
The device comes in a compact DO-41 epoxy molded package with corrosion-resistant external surfaces and readily solderable terminal leads, ensuring durability and ease of installation.
This diode supports a maximum forward voltage of 1.1 Volts and a peak non-repetitive forward surge current of 30 Amperes, making it suitable for switching power supplies, polarity protection circuits, and free wheeling diode applications.
The operating temperature range spans from -65°C to 175°C, providing reliable performance in demanding industrial, automotive, and electronics systems. The cathode is marked by a polarity band for correct orientation during assembly.
High reliability epoxy molded package with corrosion resistant finish. Through-hole mounting with axial leads for robust PCB attachment. Supports 1 A continuous forward current and 30 A surge current. Wide temperature range from -65°C to 175°C ensures industrial applicability.
Low forward voltage drop enhances energy efficiency. Soldering lead temperature max 260°C for 10 seconds ensures assembly integrity. Typical use in free wheeling, polarity protection, and inverter circuits.
This diode is ideal for industrial electronics, power supplies, automotive components, and general switching applications. Invest in onsemi's 1N4001RLG for dependable diode performance across diverse electrical and electronic systems.
