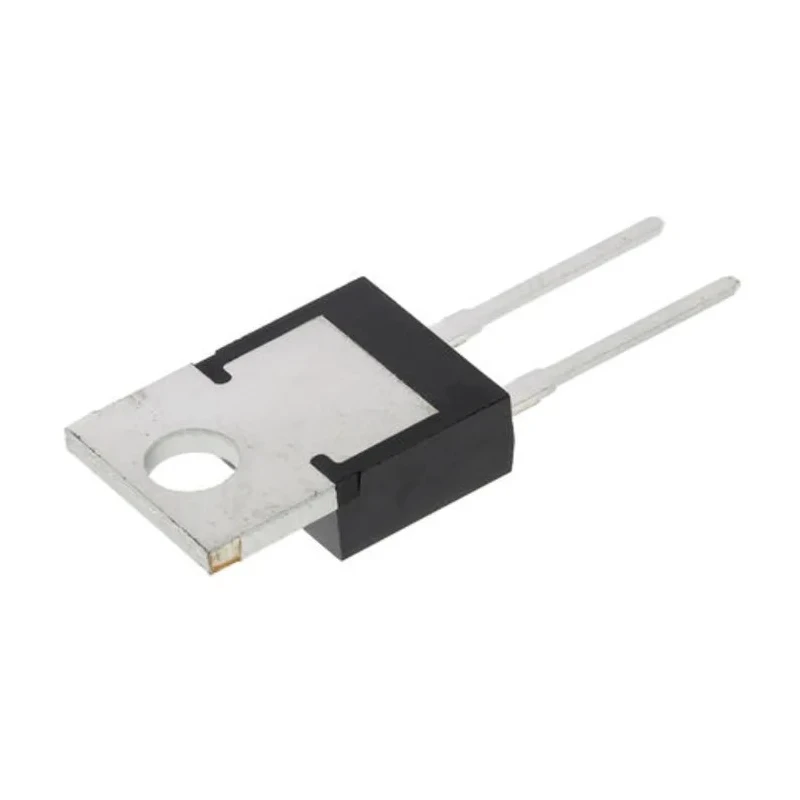

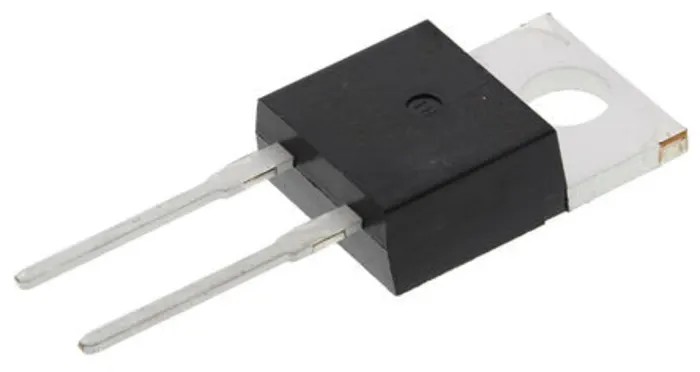

Infineon Silicon Diode Single 7.5 A 2-Pin TO-220 650 V High Temperature Power Diode IDV15E65D2XKSA1

Infineon IDV15E65D2XKSA1 is a high-performance silicon diode configured as a single switching diode with a maximum continuous forward current of 7.5 A and a peak reverse voltage rating of 650 V. It is housed in a TO-220 package measuring 10.65 mm in length, 4.85 mm in width, and 16.15 mm in height, designed for through-hole mounting. Its robust construction and heat resistance make it ideal for demanding industrial, electronic, and power control applications.

This diode employs silicon junction technology and features a fast recovery time of 51 nanoseconds, making it suitable for rapid switching requirements in automated electronic circuits and industrial machinery. The maximum forward voltage of 2.2 V helps optimize circuit energy efficiency by minimizing power losses during conduction.

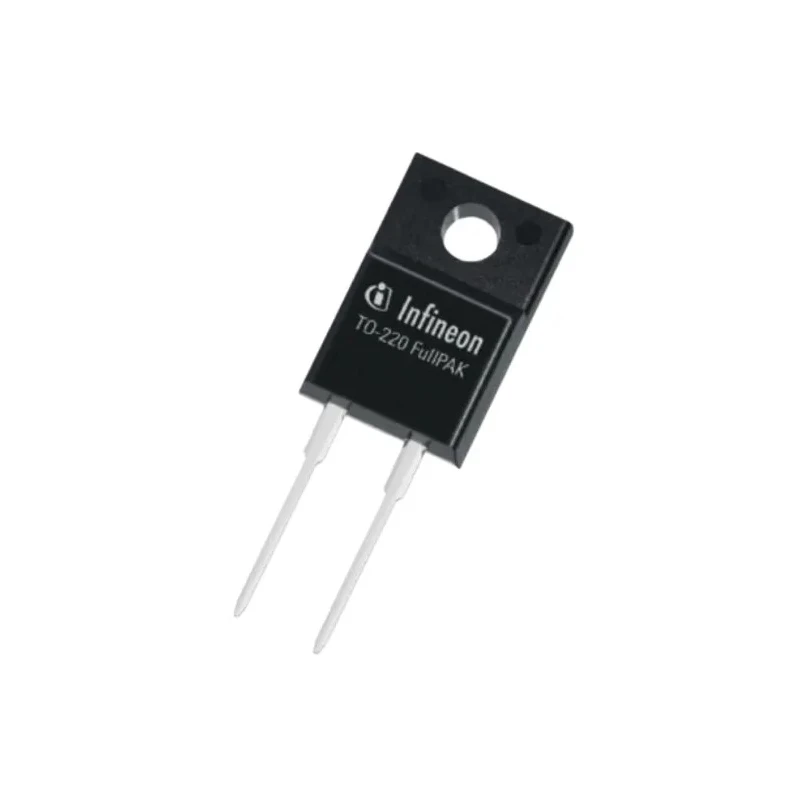

The operating temperature range from -40°C to 175°C allows it to reliably perform in environments with significant thermal stress. The casing provides electrical isolation and facilitates easy assembly with its FullPAK design. The diode also supports a non-repetitive surge current of up to 100 A, enabling it to withstand short transient overloads.

Applications include use as a boost diode in continuous current mode power factor correction, power factor correction circuits, switching power supplies, and integration in electrical devices requiring robust, high-temperature resistant diodes. Its compact TO-220 footprint ensures easy mounting and efficient heat dissipation, essential for maintaining performance in power electronics systems.

The diode supports a maximum forward current of 7.5 A for reliable operation. Maximum peak reverse voltage rating is 650 V for high voltage tolerance. Fast recovery time of 51 ns enables rapid switching efficiency. Designed in a TO-220 through-hole package for effective heat dissipation.

Maximum forward voltage drop of 2.2 V minimizes energy loss. Operational temperature from -40°C to 175°C suits harsh environments. Peak non-repetitive forward surge current rating of 100 A handles transient currents safely.

Applications include industrial power factor correction and automated electronic circuits. Explore EnvMart's Semiconductor and Switching Diode categories for compatible power components and related accessories.
