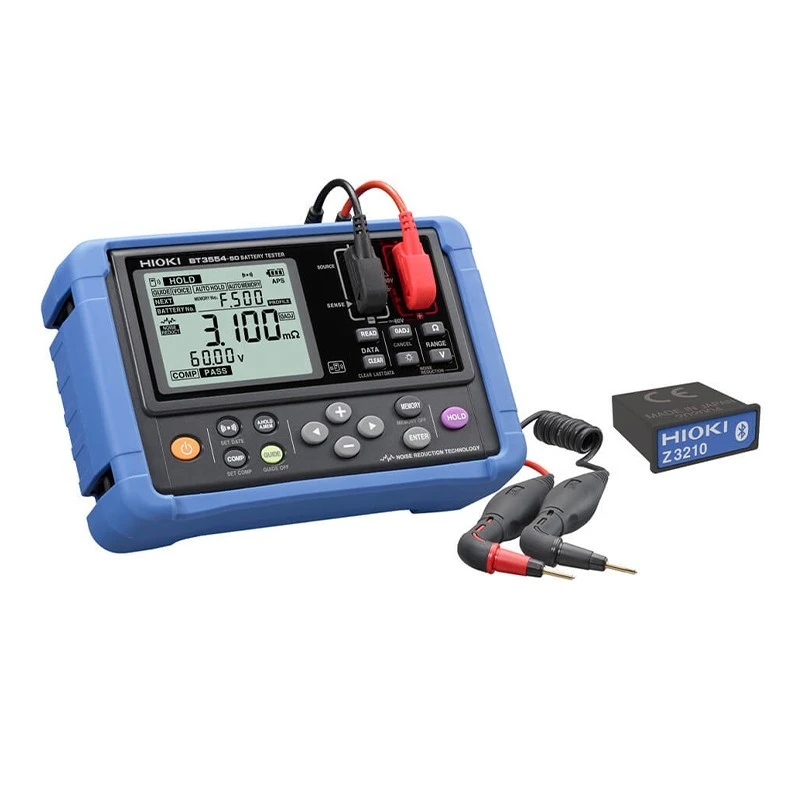

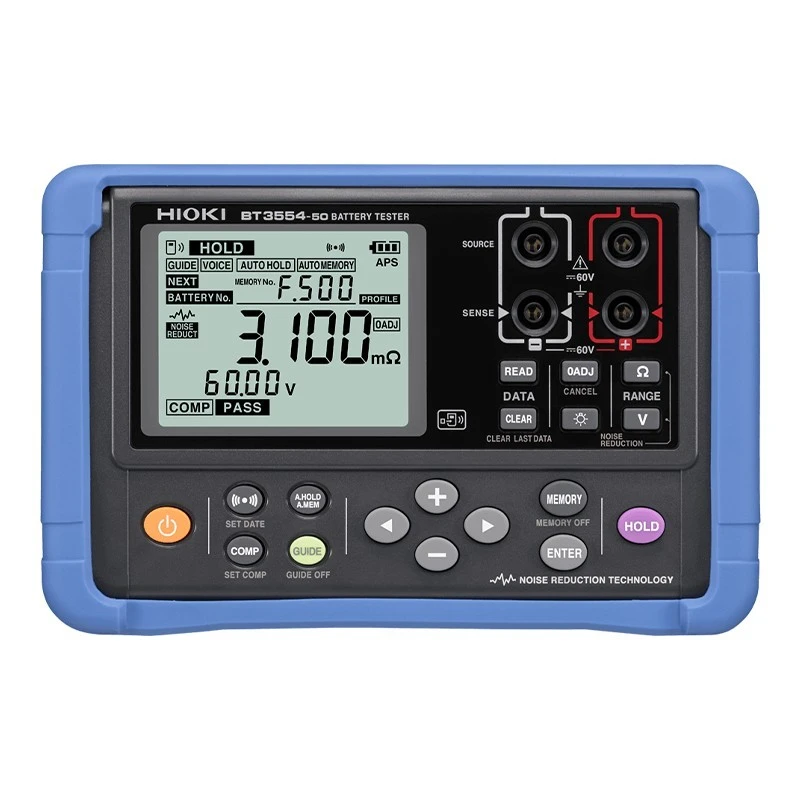

Hioki Battery Tester BT3554-51
Specifications
| Country of Origin | Japan |
|---|---|
| Temperature Accuracy | ±1.0°C (±1.8°F) |
| Resistance Range | 3 mΩ to 3 Ω / 4 ranges |
| Voltage Range | ±6 V (1 mV res) to ±60 V (10 mV res) / 2 ranges |
| Brand | HIOKI |
| Power Supply | 8 × AA alkaline batteries (1.5V each) |
| Dimensions | 199 × 132 × 60.6 mm (with protector) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Battery Life | ~8.3 hr (without Z3210) / ~8.2 hr (with Z3210) |
| Response time | ~1.6 sec |
| Temperature range | -10°C to 60°C (14°F to 140°F) |
| Model | BT3554-51 |
| Weight | 960 g (with batteries & protector) |
| Memory Capacity | 6000 sets / 500 per unit (12 units) |
| Measurement time | 100 ms |
| Communication Interface | USB / Bluetooth® (Z3210 required) |
| Voltage Accuracy | ±0.08 % rdg ±6 dgt |
| Max Input Voltage (V) | 60 V DC max (No AC input) |
| Resistance Accuracy | ±0.8 % rdg ±6 dgt (3 mΩ - ±1.0 % rdg ±8 dgt) |
| Included Accessories | Carrying Case / Protector / Fuse Set / 0 Adj Board / Neck strap / USB cable / Software CD / AA Batteries (8) / User Manual |
| Testing Source Frequency | 1 kHz ±30 Hz (with noise avoidance - 1 kHz ±80 Hz) |
| Testing Current | 160 mA (3m/30 mΩ) / 16 mA (300 mΩ) / 1.6 mA (3 Ω) |
| Open Terminal Voltage (V) | 5 V peak |
| Comparator Function | Judgment via threshold / display & audio alerts |
| Saved Data | Resistance / voltage / temperature / timestamp / results |
| Profile Information | 1 to 100 profiles / user-defined metadata |
| Navigator Feature | On-screen & audio guidance for measurements |
| Additional Functions | Zero-adjustment / Hold / Auto-hold / Auto-memory / Clock |
Key Features
- On-device battery measurement (no offline testing).
- 2-second measurement speed (60% faster).
- Instant PASS/WARNING/FAIL battery degradation diagnosis.
- Improved noise reduction technology.
- Screen and audio measurement guidance.
- Site-linked data saving for reduced management time.
- Wireless data transfer via GENNECT Cross or Excel® (Z3210 required).
- New protector for improved ergonomics and durability.
Product Description
Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all businesses. The BT3554-50 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed 9465-10 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals.
Available on EnvMart, these Battery Testers are designed for accurate testing of battery voltage and performance. Hioki Battery Testers offer high reliability and precision, making them ideal for checking battery health and ensuring optimal performance in various applications.
