Hioki Resistance Meter RM3548
Specifications
| Country of Origin | Japan |
|---|---|
| Resistance Range | 3 mΩ (0.1 µΩ resolution) to 3 MΩ (100 Ω resolution) / 10 steps |
| Brand | HIOKI |
| Power Supply | 8× LR6 (AA) Alkaline batteries / 10 hours continuous use |
| Dimensions | 192×121×55 mm |
| Temperature range | -10.0 to 99.9°C / Accuracy - ±0.50°C (with Z2002 sensor) |
| Model | RM3548 |
| Weight | 770 g |
| Measurement Accuracy | ±0.020 % rdg. ±0.007 % f.s. |
| Functions | Temperature correction/conversion / OVC / comparator / length conversion / auto hold / APS / averaging / USB interface |
| Memory Storage | Manual/Auto - 1 /000 points / Interval - 6 /000 points (0.2-10s) |
| Included Accessories | Clip lead / Temperature sensor Z2002 / Batteries / USB Cable / Strap / Spare fuse / Instruction manual |
| Measuring current | 1 A DC (3 mΩ range) to 500 nA DC (3 MΩ range) |
| Display refresh rate | Without OVC - ~100ms / With OVC - ~230ms |
| Measurement Speed | Fixed |
| Open-terminal Voltage (V) | 5.5 V DC max. |
| Data Export | Display / USB mass storage (CSV / TXT) |
Key Features
- 0.02% basic accuracy, 0.1 μΩ max resolution, 1A max test current.
- Measurement range: 0.0 μΩ (1A) to 3.5 MΩ.
- 1,000 data point memory via probe application.
- Interval measurement for temperature-rise testing.
- Portable design for large equipment maintenance.
Product Description

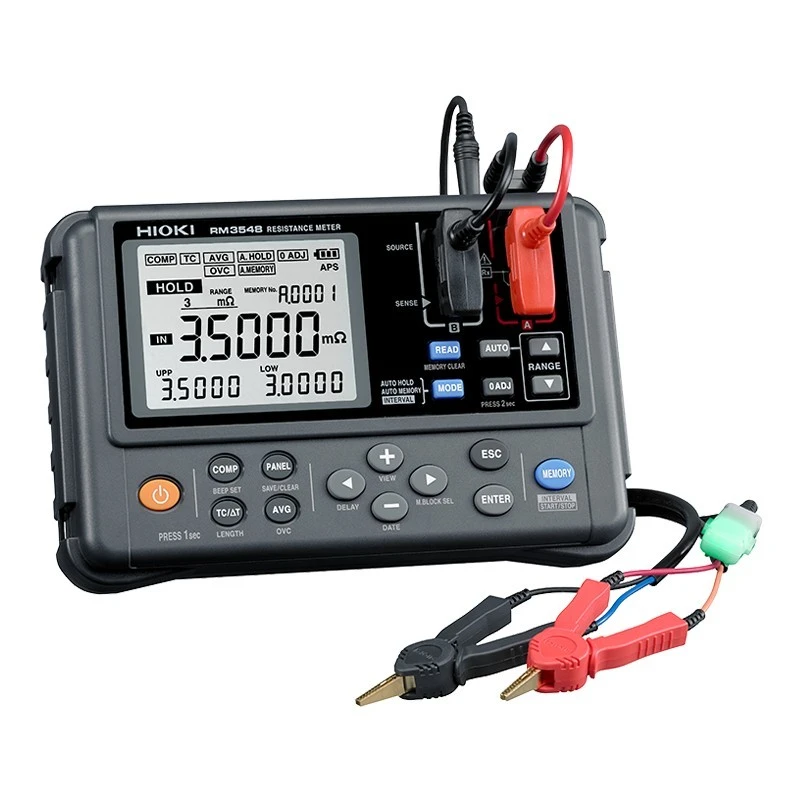

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3548 is a high-precision, portable resistance meter capable of measuring resistance levels from microohms to megaohms, and is ideal for the testing and maintenance of large equipment, for example, measuring the winding and weld resistances in large motors and stators for hybrid and electric vehicles.
Available on EnvMart, these Resistance Meters are designed for precise measurement of electrical resistance in circuits and components. Hioki Resistance Meters deliver high accuracy and reliability, making them essential for electrical testing, maintenance, and quality control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hioki RM3548 has a measurement range from 0.0 μΩ (with a 1A test current) to 3.5 MΩ.
The maximum resolution of the RM3548 is 0.1 μΩ.
This model has a basic accuracy of 0.02%.
It is powered by 8 LR6 (AA) alkaline batteries, providing up to 10 hours of continuous use.
The dimensions are 192×121×55 mm, and it weighs 770 g.
It supports functions such as temperature correction/conversion, comparator, averaging, and has a USB interface.
Included accessories are a clip lead, temperature sensor Z2002, batteries, USB cable, strap, spare fuse, and an instruction manual.
The measuring current ranges from 1 A DC in the 3 mΩ range to 500 nA DC in the 3 MΩ range.
The temperature range is from -10.0 to 99.9°C, with an accuracy of ±0.50°C when using the Z2002 sensor.
It has a memory storage capacity of 1,000 data points for manual/auto storage and 6,000 points for interval measurements.
The open-terminal voltage is a maximum of 5.5 V DC.
Yes, it can export data via display or USB mass storage in CSV or TXT formats.
