Hioki High Voltage Insulation Tester IR5051
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | HIOKI |
| Power | 8 × AA Alkaline/NiMH batteries |
| Dimensions | 195 × 254 × 89 mm |
| Battery Life | ~5 hrs (without Z3210) / ~4 hrs (with Z3210) |
| Protection Type | IP40 (with protector) / IP65 (case) |
| Parameters | Voltage / Capacitance / Leakage / PV & Insulation Resistance |
| Model | IR5051 |

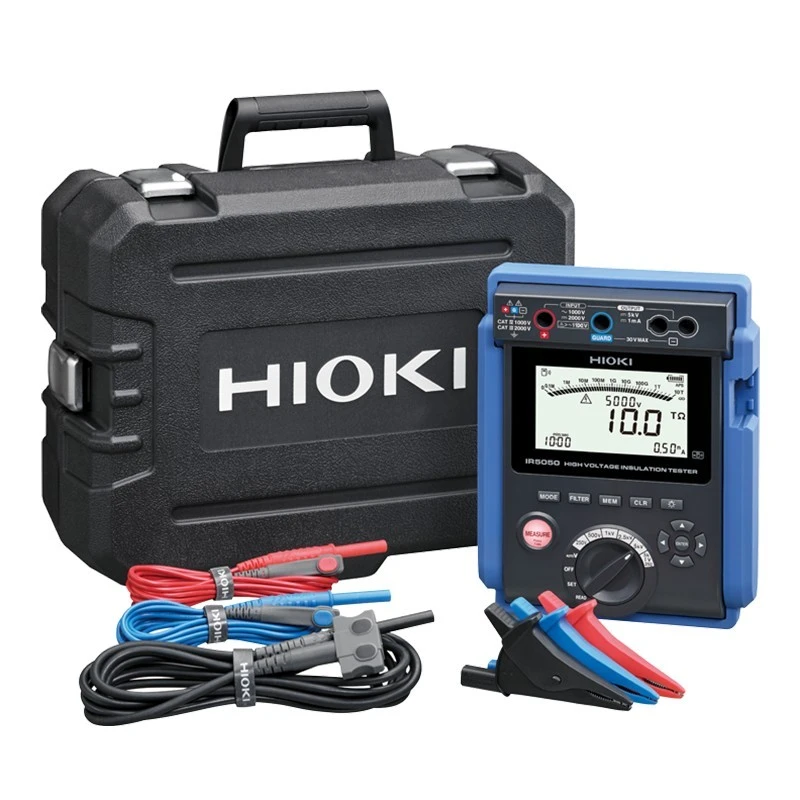

| Accessories | Test leads / Alligator clips / Test pin set / Case / Batteries / Manual / Wireless adapter (IR5051-90 only) |
| Weight | 1.7 kg (with batteries) |
| Temp. Range | -20°C to 50°C (Operation) / -25°C to 65°C (Storage) |
| Rated Voltage (V) | 1000 V (CAT IV) / 600 V (CAT III) |
| Max Voltage (V) | 1000 V AC / 2000 V DC (Terminals) |
Key Features
- Safe and accurate insulation resistance measurement of live solar PV systems.
- High-voltage equipment insulation measurement (transformers, cables, motors).
- Wide test voltage range: 250 V to 5000 V DC.
- Wide insulation range: up to 10 TΩ.
- Automatic insulation diagnostics (PI, DAR, DD).
- Data memory for reduced reporting errors.
- Wireless and USB connectivity options.
- Compact, lightweight, IP65-rated carrying case.
Product Description
The Hioki IR5051 is a compact, 5 kV high-voltage insulation resistance tester, capable of stable measurements up to 10 TΩ. It uniquely features a dedicated mode for testing live solar PV systems, with a CAT III 2000 V safety rating, supporting up to 2000 V PV system testing. It also complies with IEC 62446-1 for comprehensive PV system testing.
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
