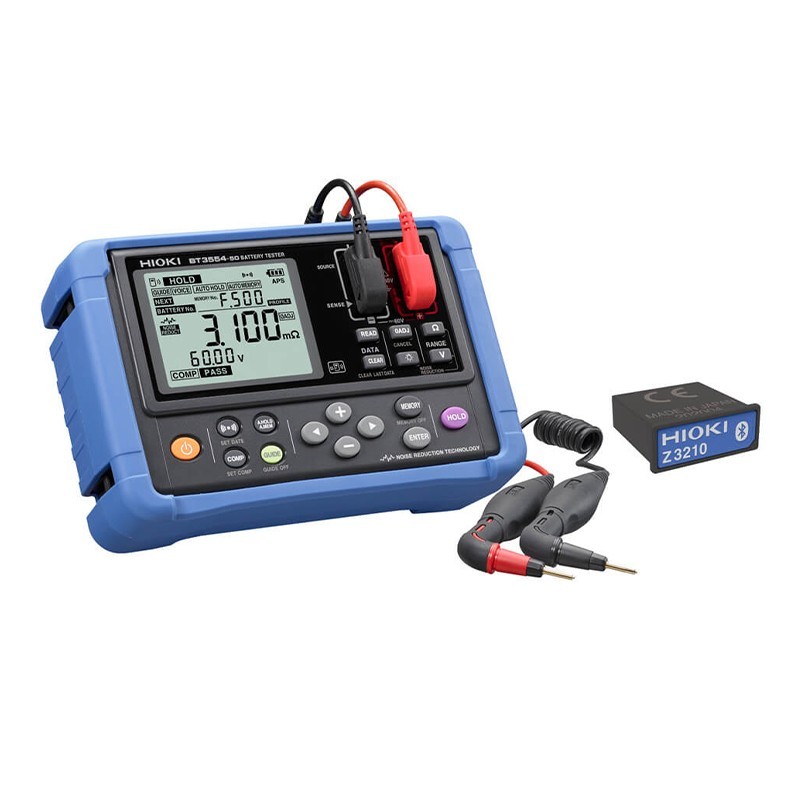

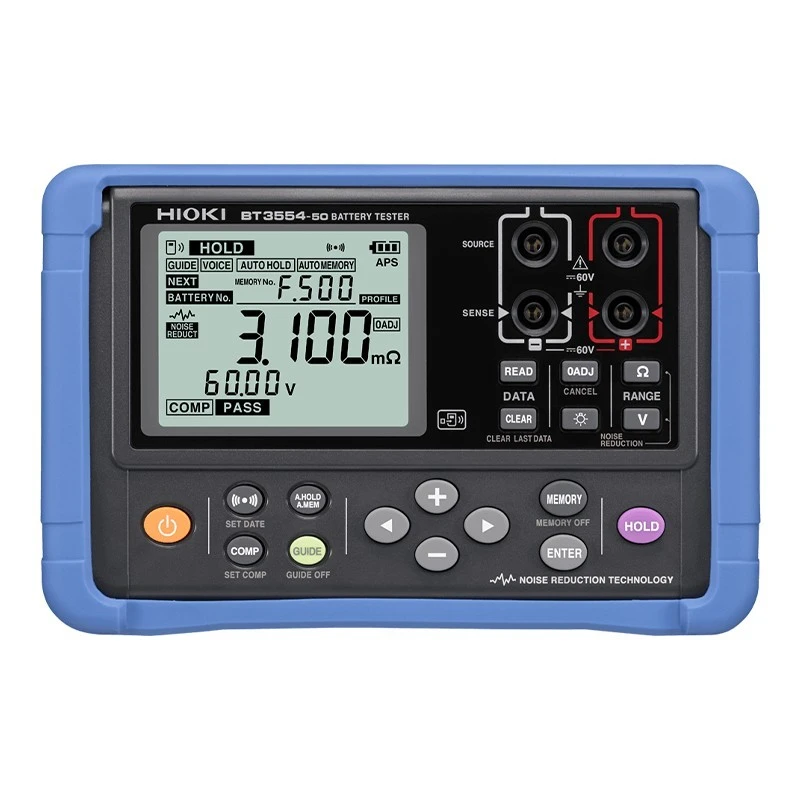

Hioki Battery Tester BT3554-52
Specifications
| Country of Origin | Japan |
|---|---|
| Accuracy | ±0.8 % rdg ±6 dgt (3 mΩ range - ±1.0 % rdg ±8 dgt) |
| Temperature Accuracy | ±1.0°C (±1.8°F) |
| Brand | HIOKI |
| Power Supply | 8 × AA alkaline batteries (1.5V each) |
| Dimensions | 199 mm W × 132 mm H × 60.6 mm D (with protector) |
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Measurement Range | -10°C to 60°C (14°F to 140°F) |
| Battery Life | ~8.3 hr (without Z3210) / ~8.2 hr (with Z3210) |
| Response time | ~1.6 sec |
| Model | BT3554-52 |
| Weight | 960 g (with batteries & protector) |
| Memory Capacity | 6000 sets / 500 per unit (12 units) |
| Measurement time | 100 ms |
| Communication Interface | USB / Bluetooth® (Z3210 required) |
| Included Accessories | Carrying Case / Protector / Fuse Set / 0 Adj Board / Neck strap / USB cable / Software CD / AA Batteries (8) / User Manual |
| Voltage Measurement Range | ±6 V (1 mV res) to ±60 V (10 mV res) / 2 ranges |
| Voltage Measurement Accuracy | ±0.08 % rdg ±6 dgt |
| Resistance Measurement Range | 3 mΩ to 3 Ω / 4 ranges |
| Testing Source Frequency | 1 kHz ±30 Hz (with noise avoidance - 1 kHz ±80 Hz) |
| Testing Current | 160 mA (3m/30 mΩ) / 16 mA (300 mΩ) / 1.6 mA (3 Ω) |
| Open Terminal Voltage (V) | 5 V peak |
| Comparator Function | Judgment via threshold / display & audio alerts |
| Saved Data | Resistance / voltage / temperature / timestamp / results |
| Profile Information | 1 to 100 profiles / user-defined metadata |
| Additional Functions | Zero-adjustment / Hold / Auto-hold / Auto-memory / Clock |
| Absolute Max Input Voltage (V) | 60 V DC max (No AC input) |
| Measurement Navigator | On-screen & audio guidance for measurements |
Key Features
- Online battery measurement.
- 2-second measurement and data saving.
- Instant PASS/WARNING/FAIL battery diagnosis.
- Noise reduction technology.
- Screen and audio measurement guidance.
- Site-linked data storage.
- Wireless data transfer via GENNECT Cross/Excel (Z3210 needed).
- Improved ergonomics and durability.
Product Description
Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all businesses. The BT3554-52 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals.
Available on EnvMart, these Battery Testers are designed for accurate testing of battery voltage and performance. Hioki Battery Testers offer high reliability and precision, making them ideal for checking battery health and ensuring optimal performance in various applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resistance measurement range for the Hioki BT3554-52 is from 3 mΩ to 3 Ω, with four ranges available for testing.
The voltage measurement accuracy of this model is ±0.08 % of reading ±6 digits.
It supports a temperature measurement range from -10°C to 60°C (14°F to 140°F).
Data can be stored with a capacity of 6000 sets, and it features wireless data transfer via USB or Bluetooth® (Z3210 required).
It requires 8 AA alkaline batteries (1.5V each) for operation.
Included accessories are a carrying case, protector, fuse set, zero adjustment board, neck strap, USB cable, software CD, AA batteries (8), and a user manual.
The weight of the Hioki BT3554-52 is 960 g, including batteries and the protector.
The response time for measurements is approximately 1.6 seconds.
The absolute maximum input voltage for the Hioki BT3554-52 is 60 V DC, with no AC input allowed.
This model can measure resistance, voltage, and temperature, providing a complete diagnosis of battery health.
The temperature accuracy for this unit is ±1.0°C (±1.8°F).
The memory can store up to 100 user-defined profiles, along with associated metadata.
