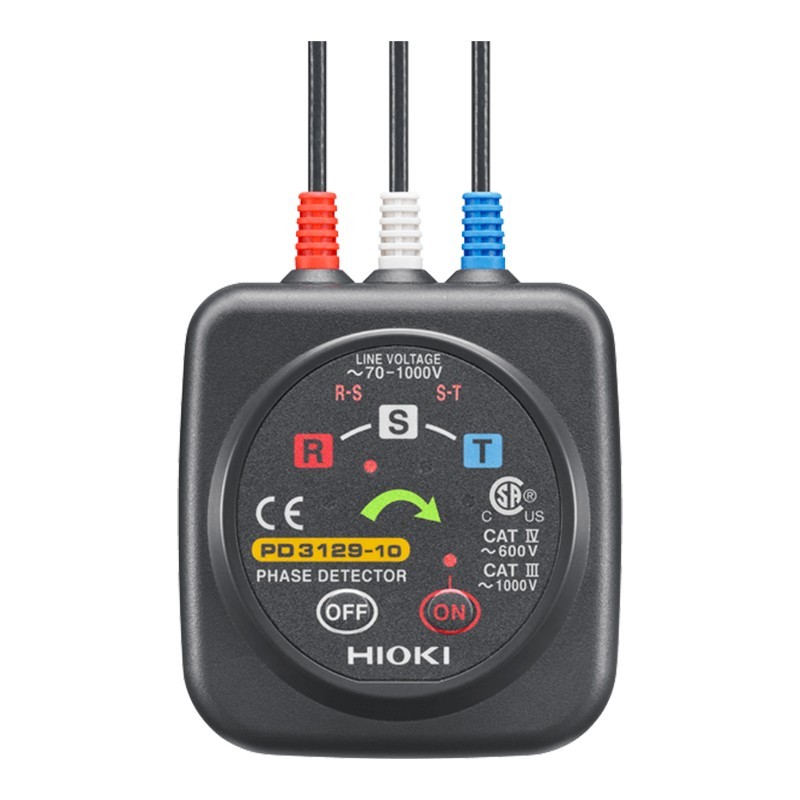

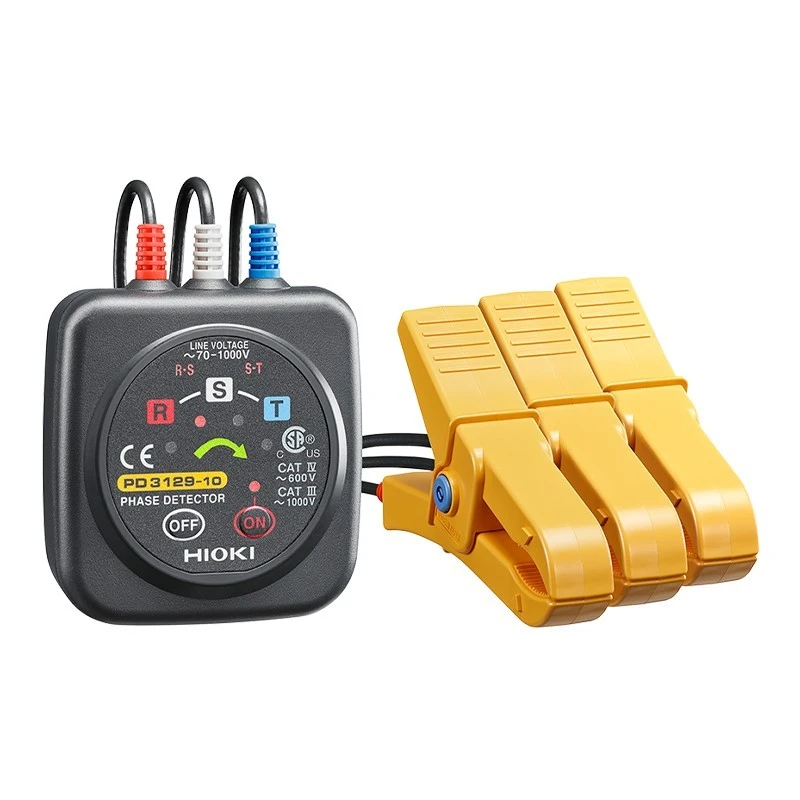

Hioki Phase Detector PD3129-10

Name: Hioki Phase Detector PD3129-10
Brand: HIOKI
SKU: ADEDQ
Price: 155.95 USD
Availability: InStock



SKU ADEDQ Category Phase Sequence Indicator Brand HIOKI Condition New

Specifications

Country of Origin	Japan
Display	Positive - LEDs clockwise / intermittent buzzer / green arrow \| Negative - LEDs counterclockwise / continuous buzzer
Frequency range	45–66 Hz
Voltage Range	70–600 V AC (50/60 Hz / sine wave / continuous input)
Brand	HIOKI
Power Supply	2 × AA (LR6) alkaline batteries / 200 hr continuous use
Dimensions	70 × 75 × 30 mm
Model	PD3129-10
Accessories	Carrying case / strap / spiral tube / instruction manual / batteries
Cord Length	0.7 m (2.30 ft)
Weight	200 g
Functions	Phase detection (positive/negative)
Auto Power Off	Shuts off after 15 minutes of inactivity
Voltage detection	Static induction
Battery Check	Power ON lamp (steady for ON / blinking for low battery)
Compatible Wiring	2.4 mm to 17 mm insulated wiring

Key Features

Clamp-on wire insulation connection.
Green LED arrow for visual phase direction.
CAT III 1000V safety rating.
Rotating LED for 3-phase sequence display.
Audible positive/reverse phase indication.
Magnetic base for panel mounting.

Product Description

Hioki’s non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. Model PD3129-10 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips. The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.

Available on EnvMart, these Phase Sequence Indicators are designed for accurate determination of phase sequence in electrical systems. Hioki Phase Sequence Indicators provide high precision and reliability, making them essential for ensuring proper phase rotation and electrical system safety.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It has a voltage range of 70–600 V AC for 50/60 Hz sine wave inputs.

The frequency range of the Hioki Phase Detector PD3129-10 is 45–66 Hz.

The display shows positive phase with clockwise LEDs and a green arrow, while negative phase is indicated by counterclockwise LEDs and a continuous buzzer.

It operates on 2 AA (LR6) alkaline batteries, allowing for up to 200 hours of continuous use.

The dimensions are 70 × 75 × 30 mm, and it weighs 200 g.

Included accessories are a carrying case, strap, spiral tube, instruction manual, and batteries.

It is compatible with insulated wiring ranging from 2.4 mm to 17 mm in diameter.

Yes, it automatically shuts off after 15 minutes of inactivity to conserve battery life.

The battery check is indicated by a power ON lamp that remains steady for ON and blinks for low battery.

It utilizes static induction for voltage detection within insulated wires.

The country of origin is Japan.

It performs phase detection, indicating both positive and negative phase sequences.
