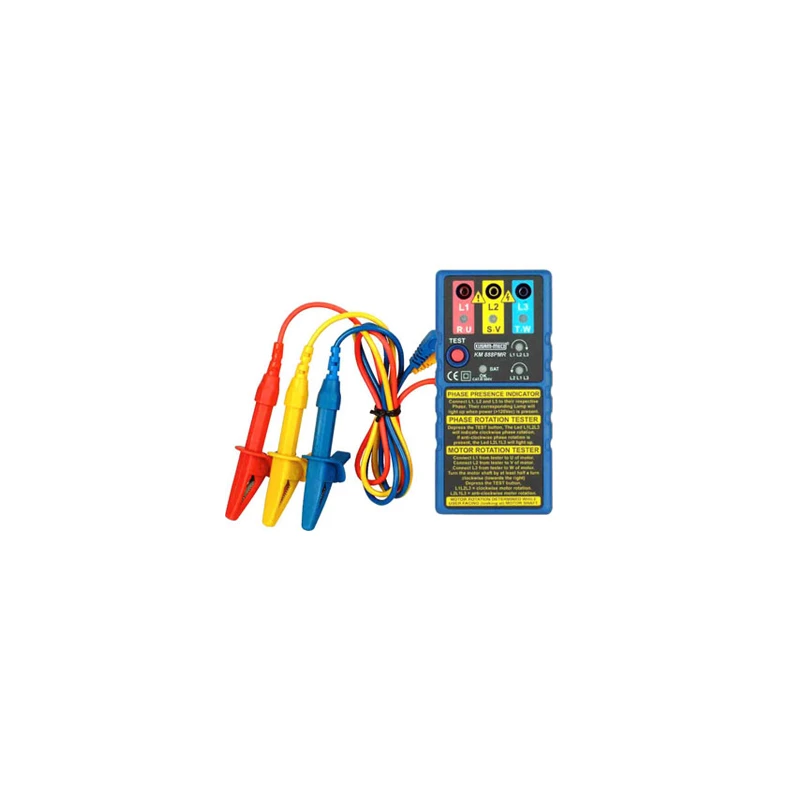

Kusam-Meco KM-888PMR Phase Sequence Meter

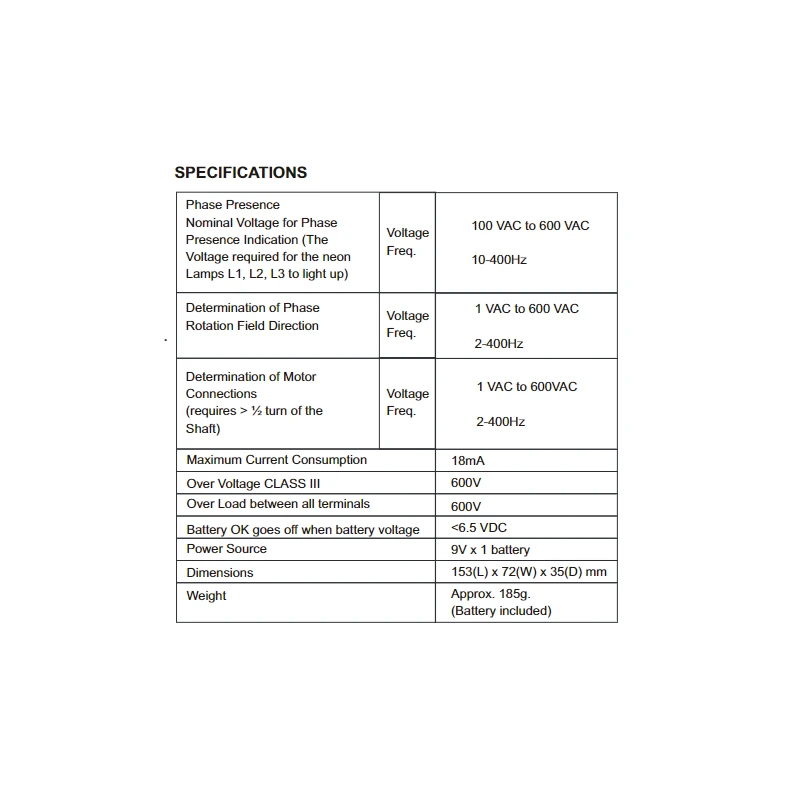

Specifications
| Measurement Range | 100 VAC to 600 VAC |
|---|---|
| Frequency | 2Hz to 400Hz sine |
| Brand | Kusam-Meco |
| Power Supply | 9V x 1 battery |
| Applications | Industrial Phase Sequence Measurement |
| Voltage (V) | 0 to 600V AC |
| Model | KM-2030 |
| Phase Type | 3 phase |
Key Features
- Phase Presence Indication from as low as 100Vac
- Very low consumption
- Fused
- Lightweight, Robust & Compact
Product Description
KUSAM MECO KM-888PMR Phase Sequence Meter, This instrument represents the quickest and easiest way for servicing, repairing, and electrical maintenance of 3-phase systems & 3-phase rotating machinery.The KM 888PMR is a 3 phases Presence and Rotation Indicator combined with a 3 phases Motor Rotation Tester.It can be utilized on a 3 Phases Powered System (the supply side) or on a Three Phases Unpowered Motor (the load side) without having to worry about damage to the tester.When utilized on a Three Phases Unpowered Motor, the instrument is then utilized as a 3 Phases Motor Rotation Tester. When utilized on a 3 Phases Powered System, this instrument is a rotary field indication instrument that displays all three phases by lighting up its corresponding lamp. It displays the rotation (clockwise or anti-clockwise) on a LED.When utilized on a 3 Phases Unpowered Motor, it is also possible to determine the motor connections R, S, and T without a live circuit to avoid subsequent damages e.g. Pumps to reversed motor rotation. It displays the rotation (clock-wise or anti-clock-wise) on a LED
- Indicates Motor Rotation / wiring
- Phase Rotation & Motor Rotation
- Small and rugged enclosure
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range is from 100 VAC to 600 VAC.
It operates at a frequency range of 2Hz to 400Hz sine.
This model requires a 9V x 1 battery for power supply.
It is designed for industrial phase sequence measurement.
It indicates phase rotation by lighting up corresponding lamps and displays the rotation direction (clockwise or anti-clockwise) on an LED.
Yes, it can be used on three-phase unpowered motors to test motor rotation and determine motor connections without a live circuit.
The KM-888PMR supports 3-phase systems.
It features a small and rugged enclosure, making it lightweight and compact.
It combines phase presence indication with motor rotation testing, allowing for quick servicing and maintenance of 3-phase systems.
It provides indicators for motor rotation and wiring, showing phase rotation and motor rotation direction.
The voltage capacity is from 0 to 600V AC.
Yes, the model number is KM-888PMR.
